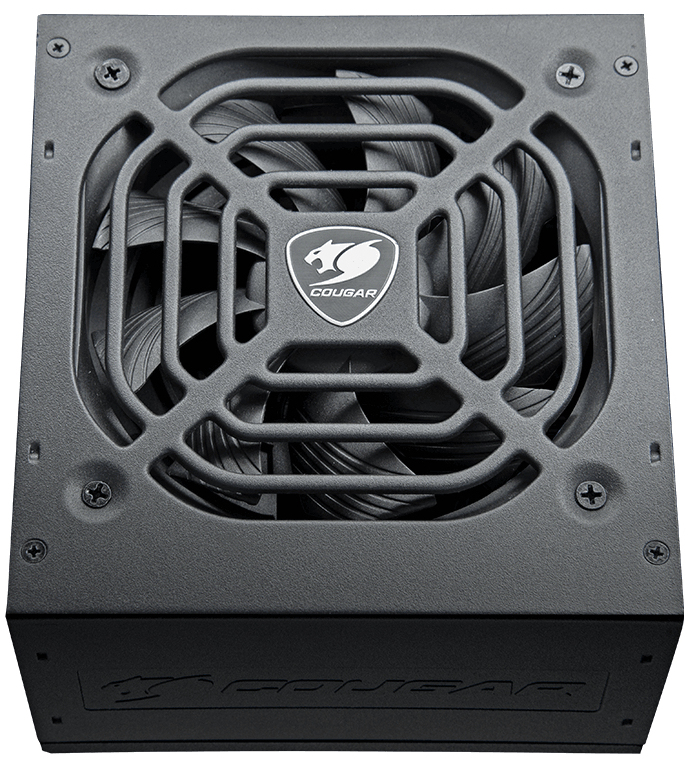

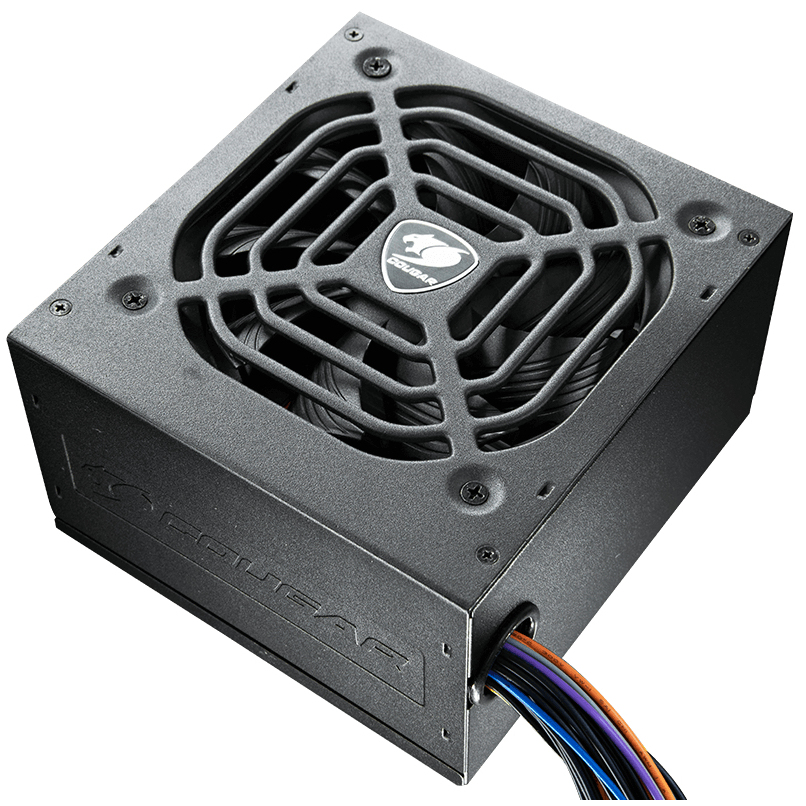

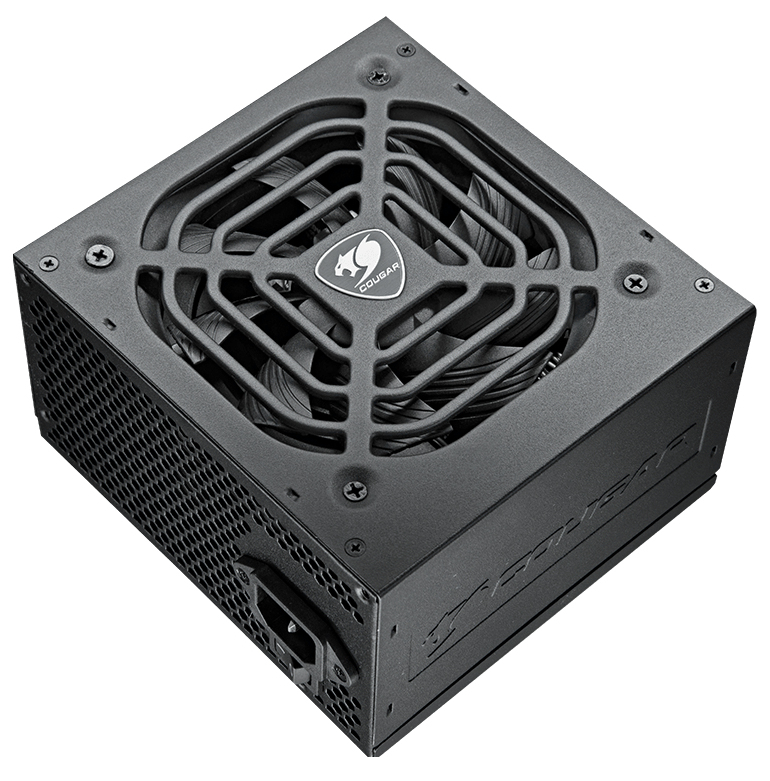

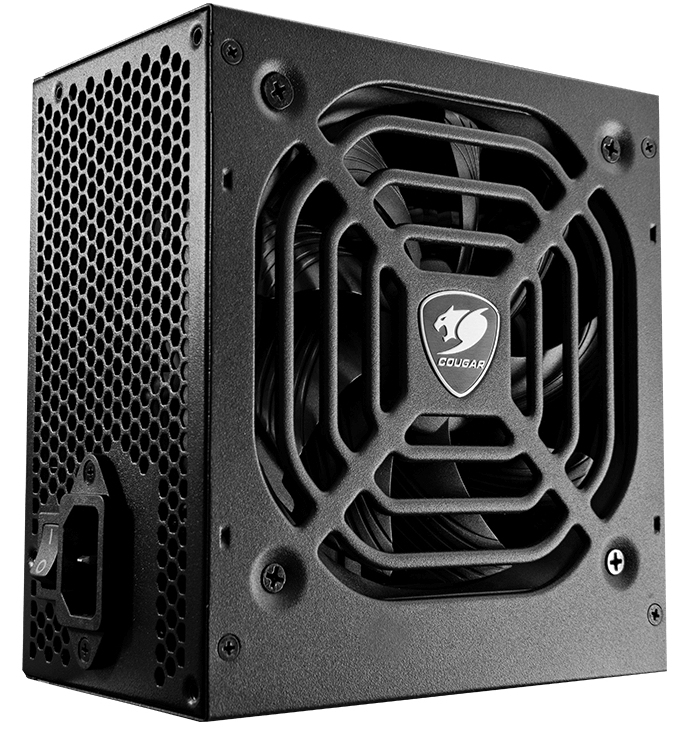

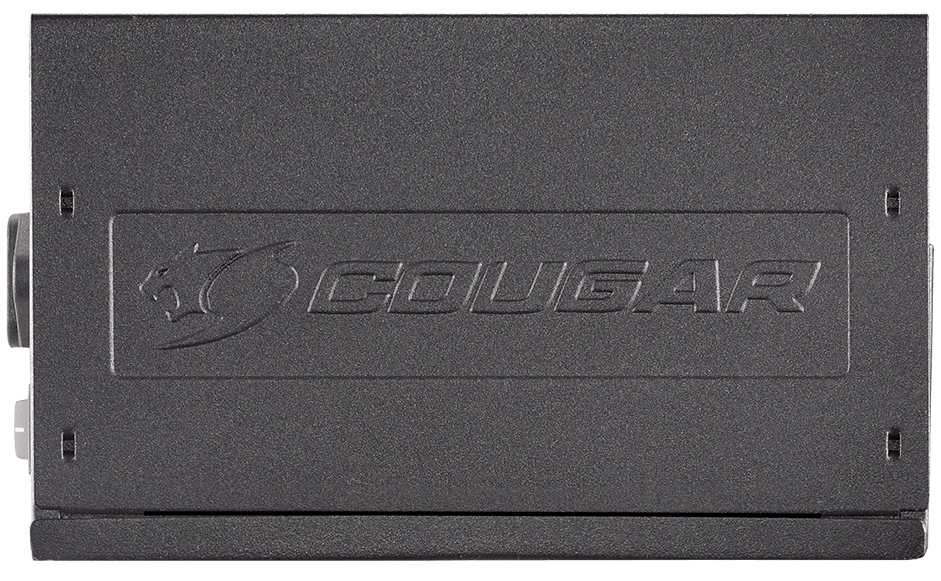

XTC500 power supply unit
500 W 20+4 pin ATX ATX Black
Model XTC500Part no. 31XC050.0001PEAN 192554001302
46 specifications
- Weight1.3 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.3 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- XTC500
- Part number
- 31XC050.0001P
- EAN / UPC
- 192554001302, 4715302442866
- Also known as
- COUGAR XTC500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
46 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

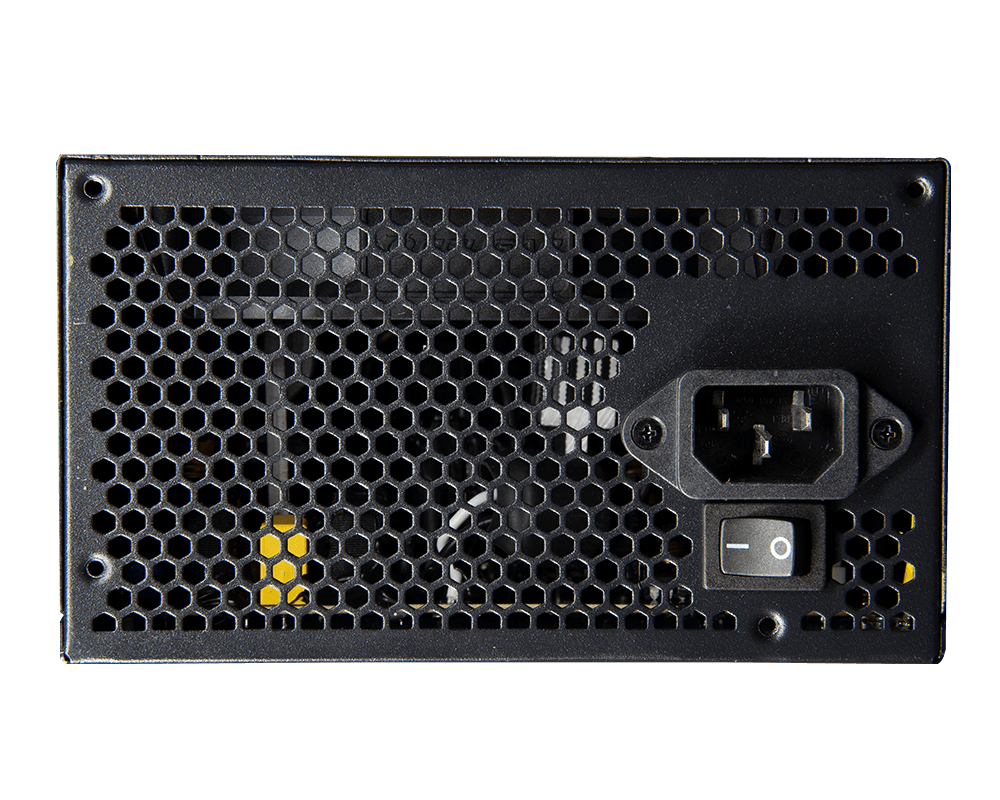

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 187 mm |
| Package depth | 158 mm |
| Package height | 165 mm |
| Package weight | 1.6 kg |
| Package type | Box |
