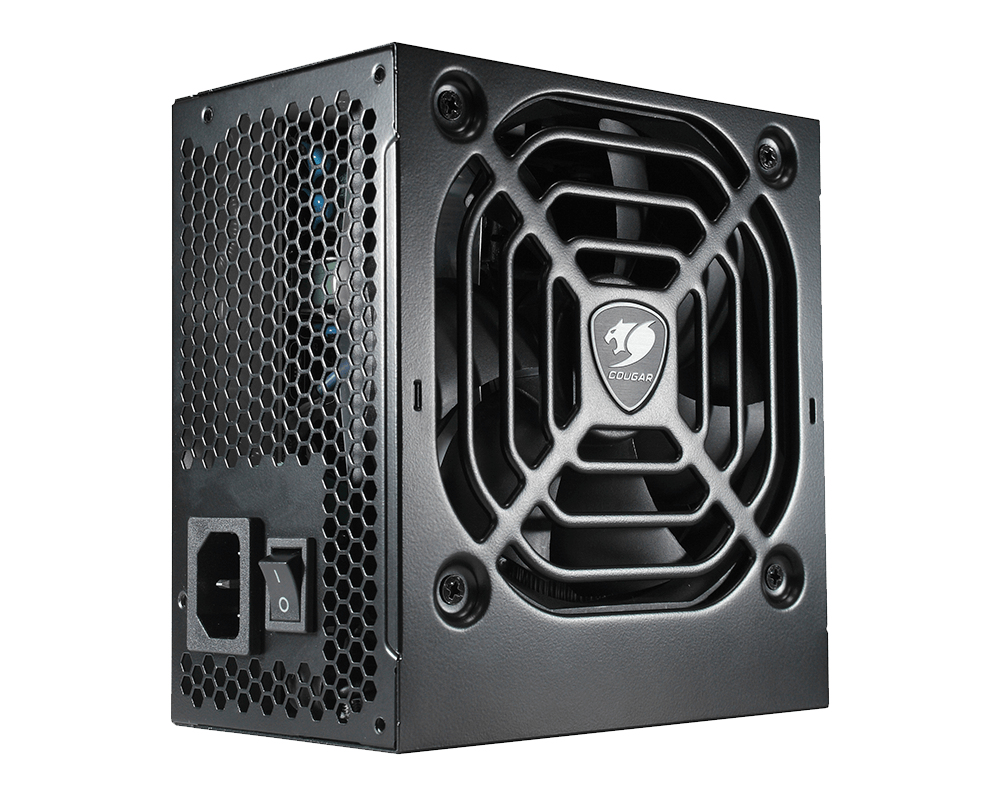

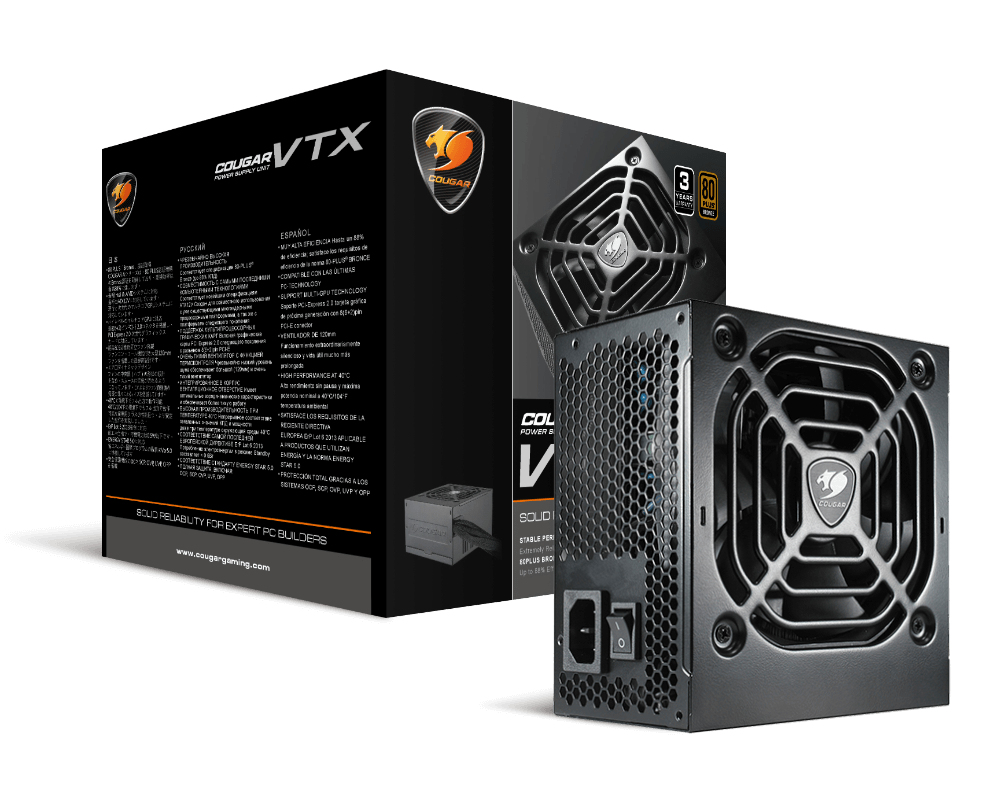

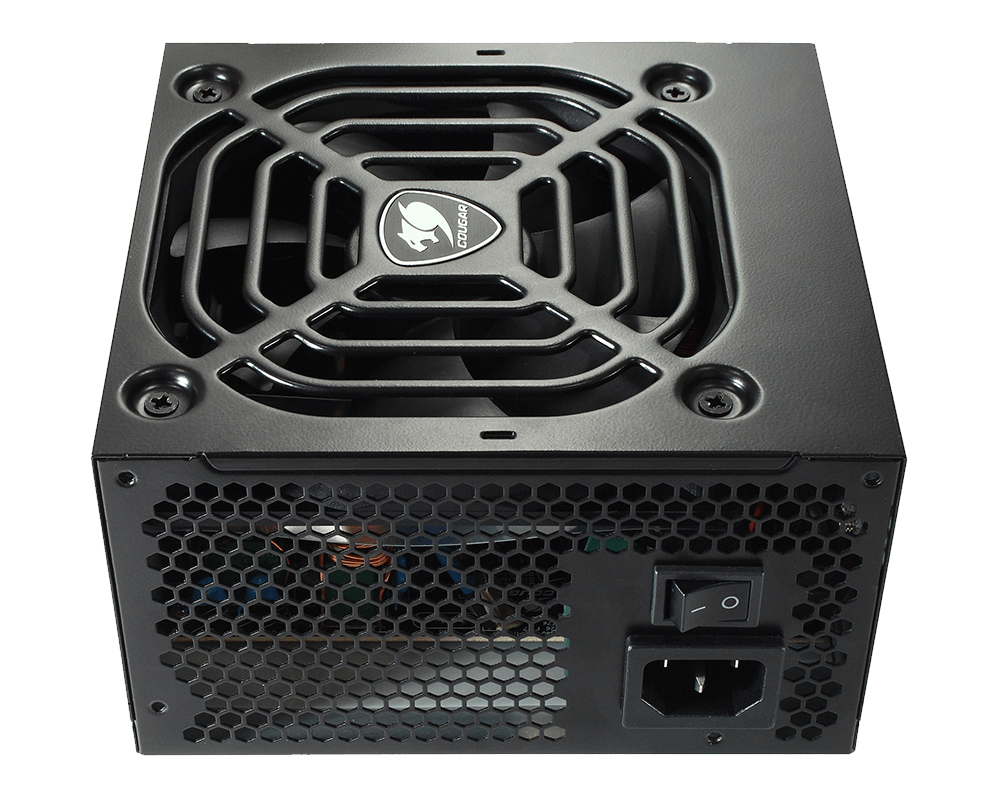

COUGAR VTX600 power supply unit
600 W 20+4 pin ATX Black
Model VTX600Part no. VTX600EUEAN 4715302447823
38 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
- Sustainability certificatesENERGY STAR
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- VTX600
- Part numbers
- VTX600EU, CGR BS-600
- EAN / UPC
- 4715302447823, 4715302448899
- Also known as
- COUGAR VTX600 power supply unit 600 W 20+4 pin ATX Black
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 588 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 49 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power connectors (8-pin) | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | OCP, SCP, OVP, UVP, OPP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Case colour | Black |
| Number of SATA connectors | 5 |
| PCI Express slots quantity | 2 |
