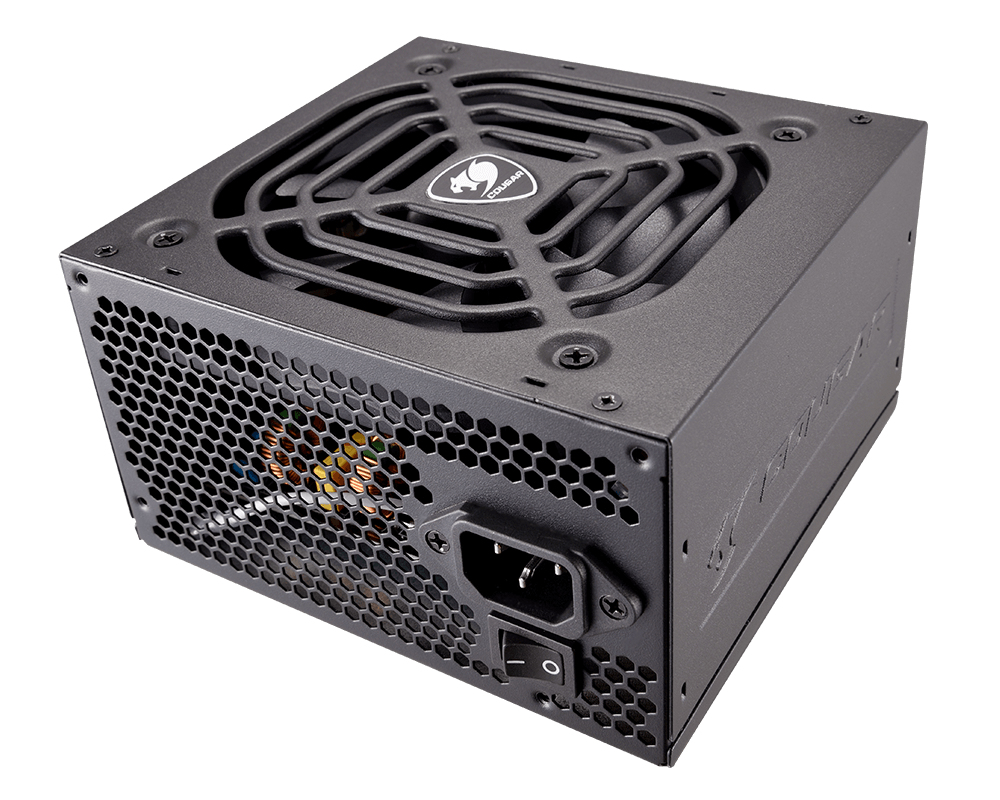

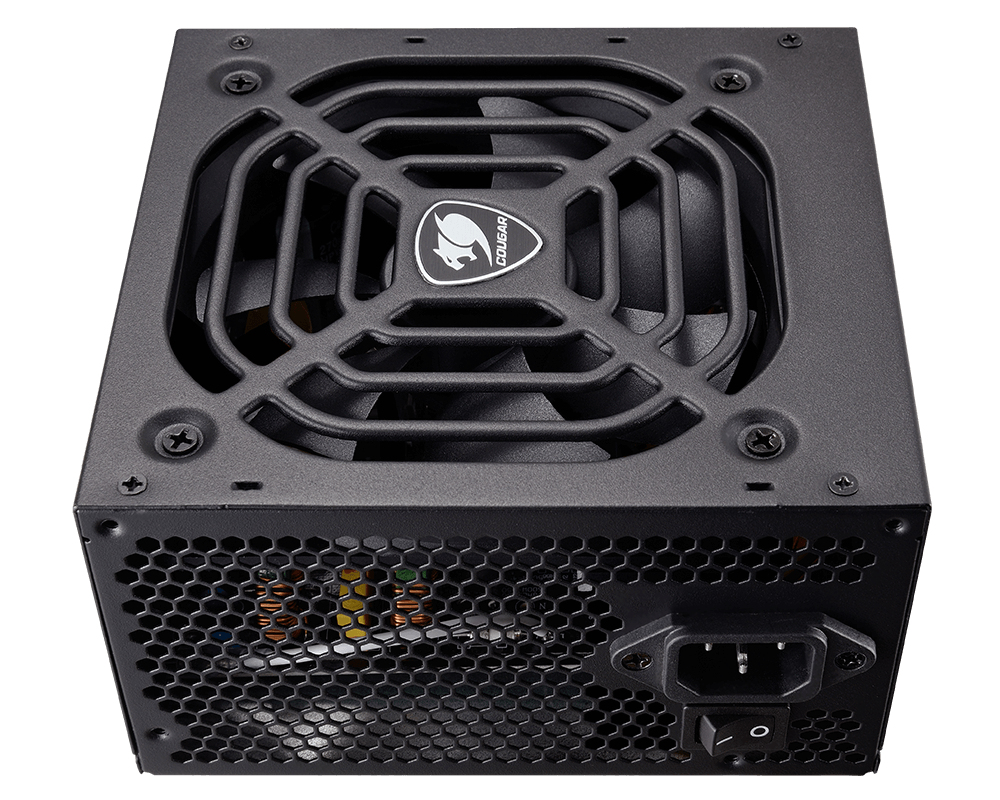

VTC500 power supply unit
500 W 20+4 pin ATX ATX Black
Model VTC500Part no. 31VC050001P01EAN 4715302440954
34 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- VTC500
- Part number
- 31VC050001P01
- EAN / UPC
- 4715302440954
- Also known as
- COUGAR VTC500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
34 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 - 6.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 135 W |
| Combined power (+12V) | 450 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |

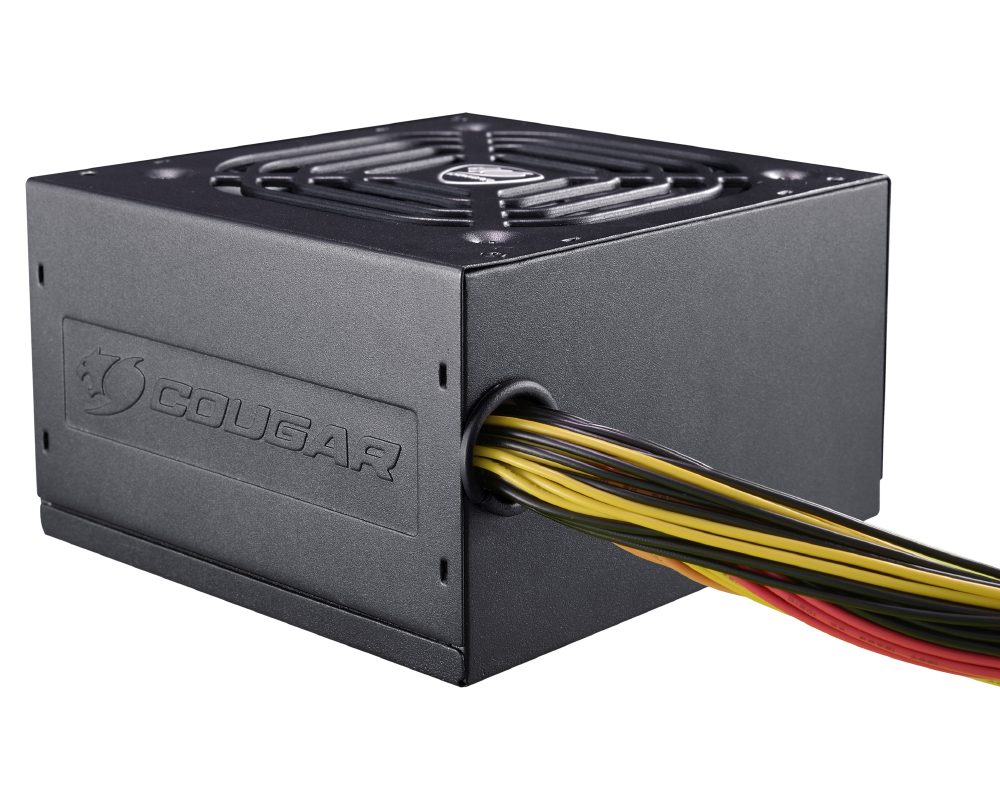

| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

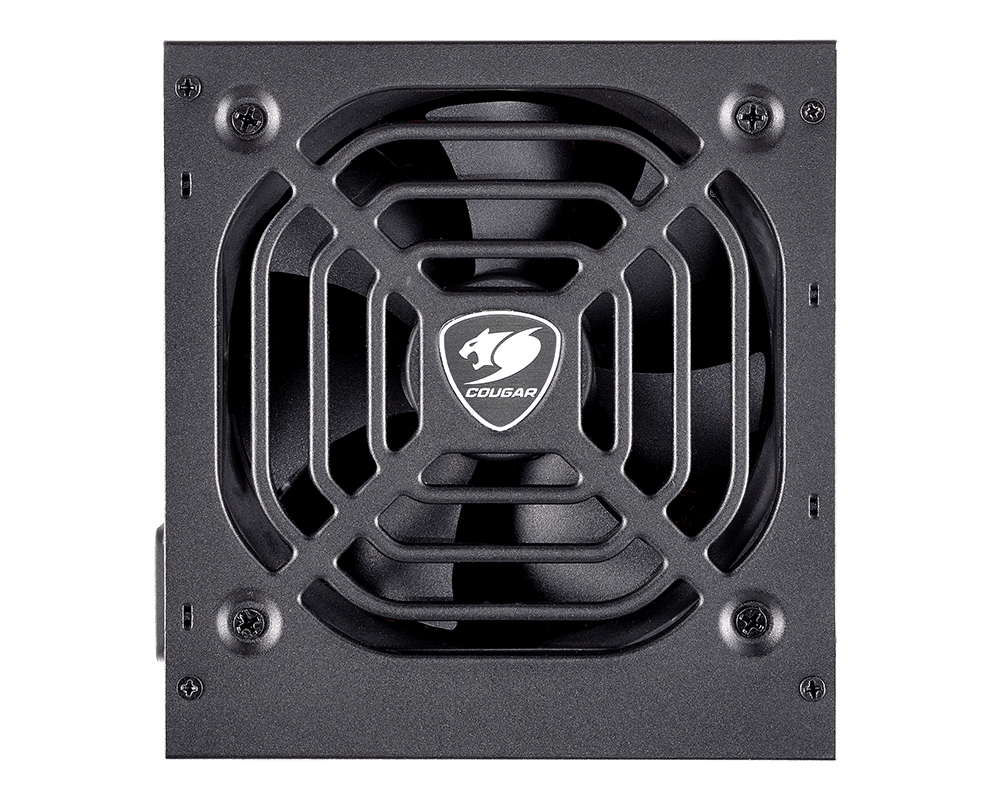

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

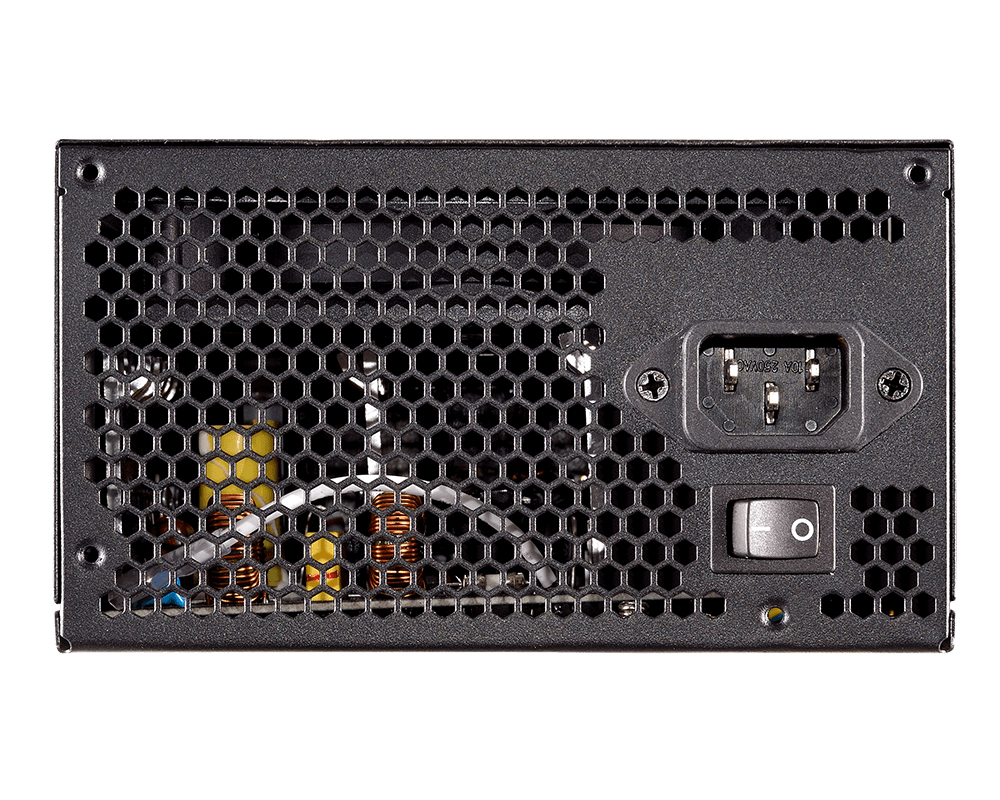

| On/off switch | Yes |
Packaging data
| Specification | Value |
|---|---|

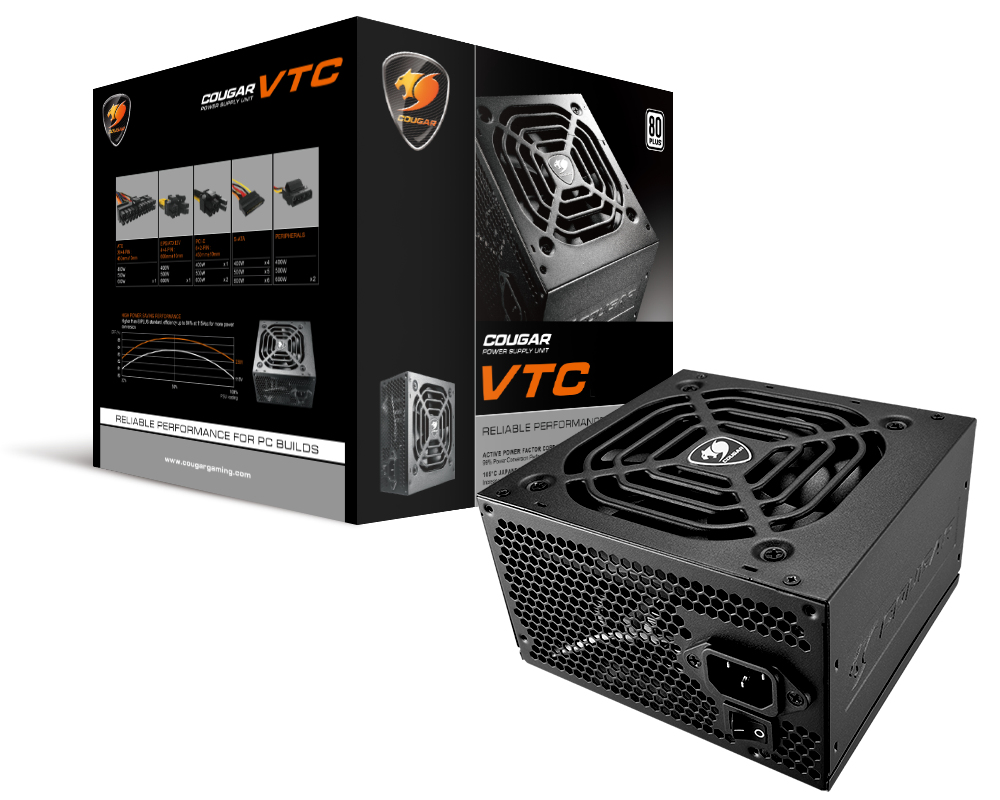

| Package type | Box |
