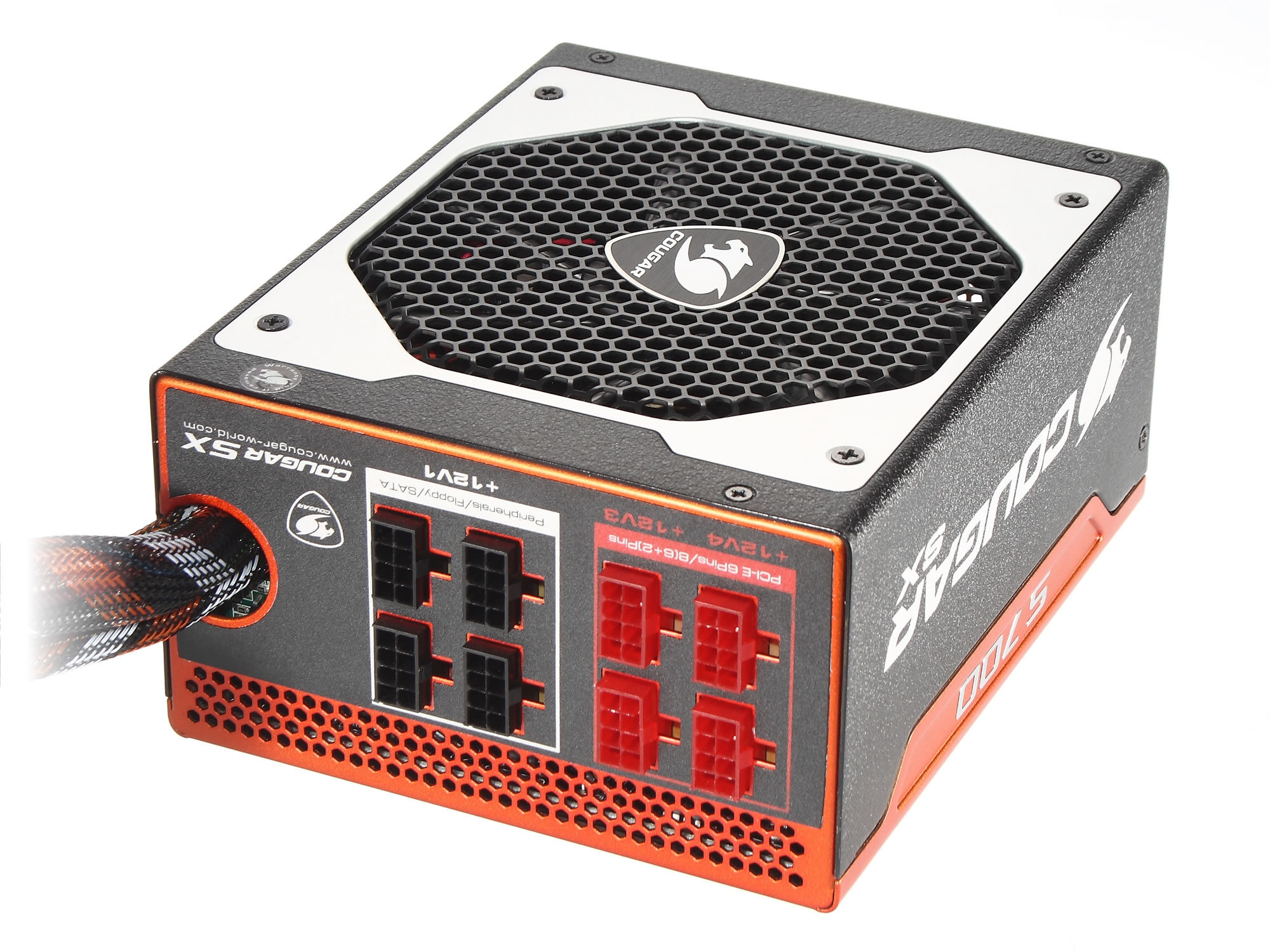

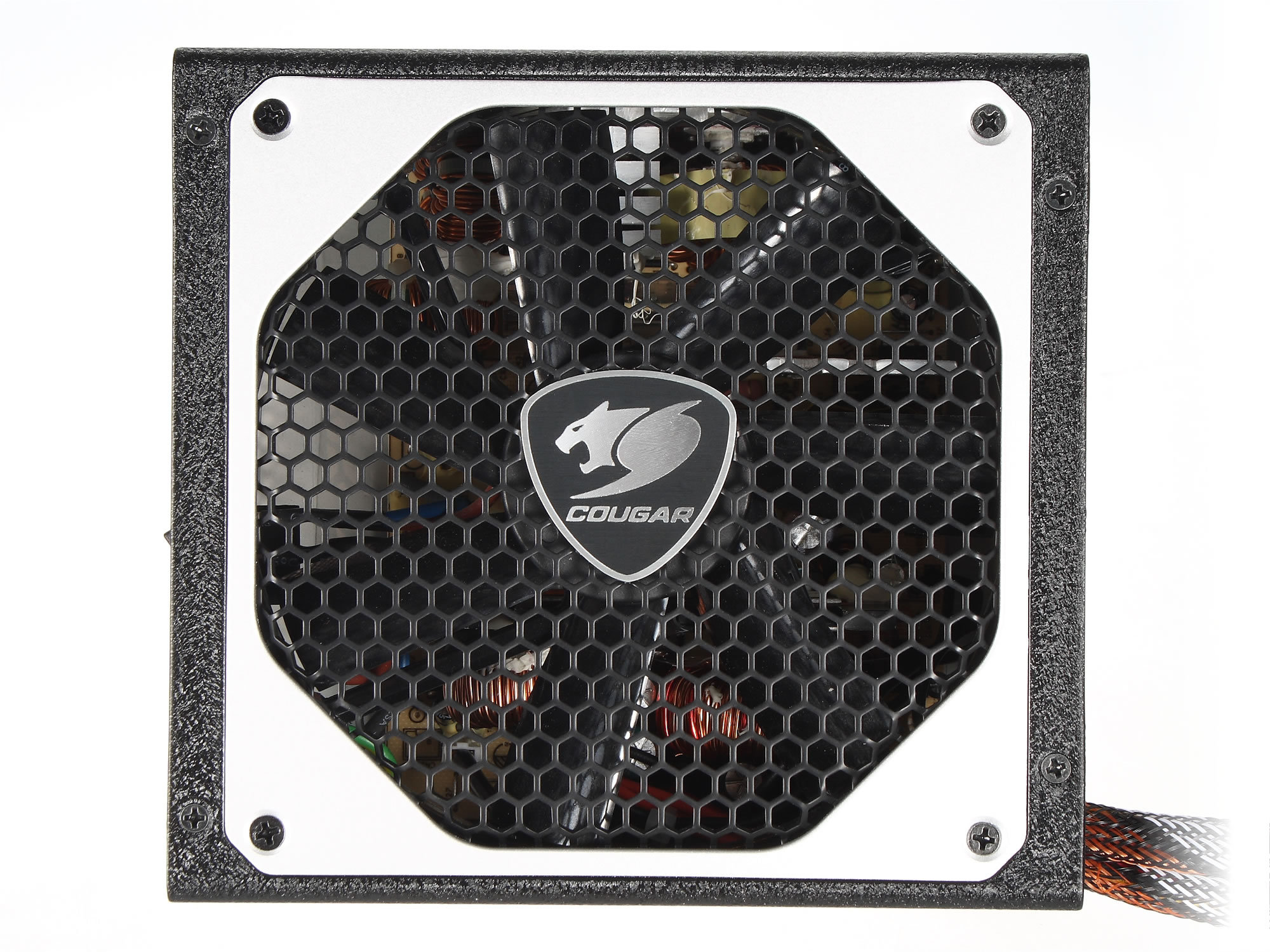

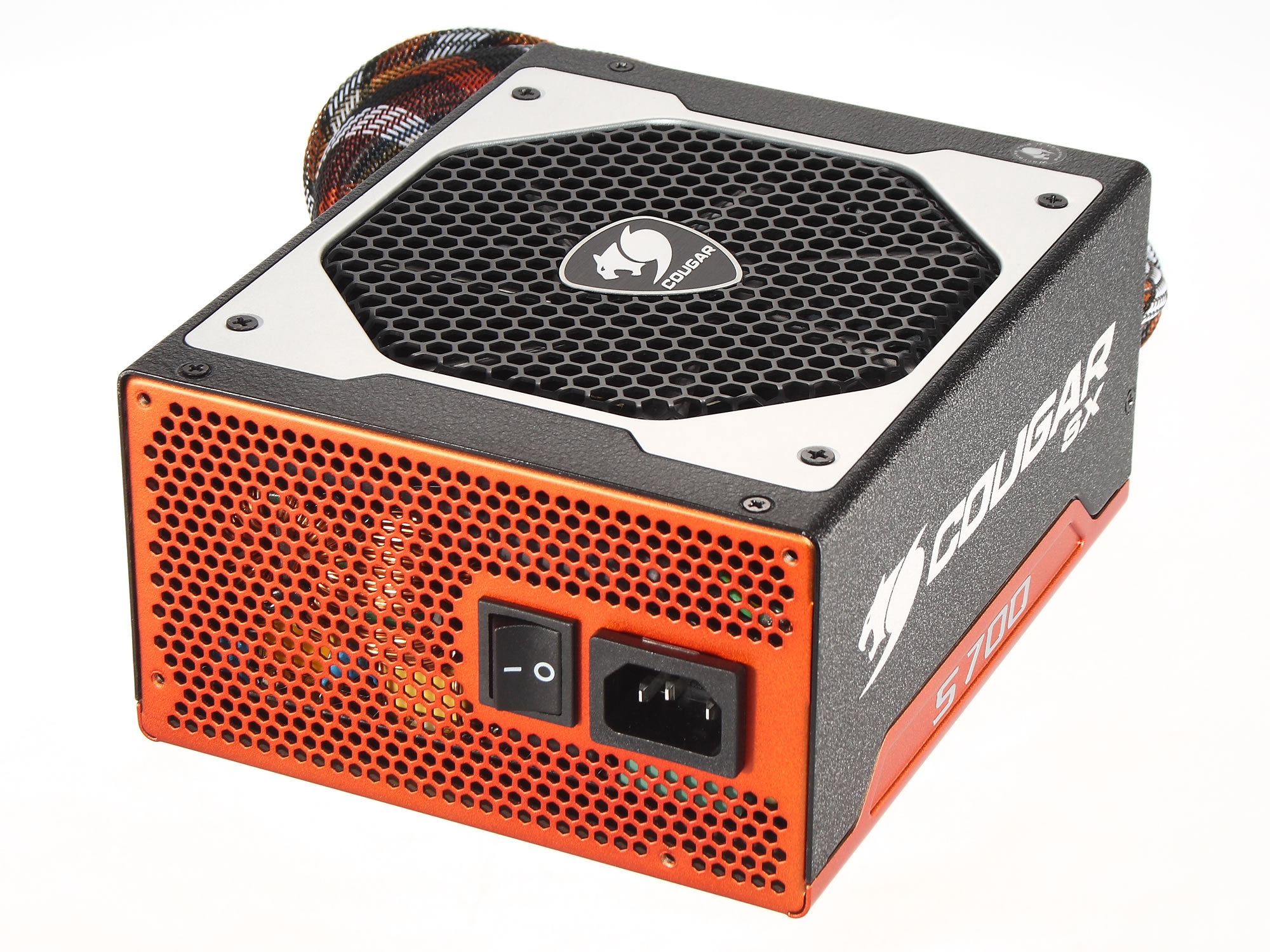

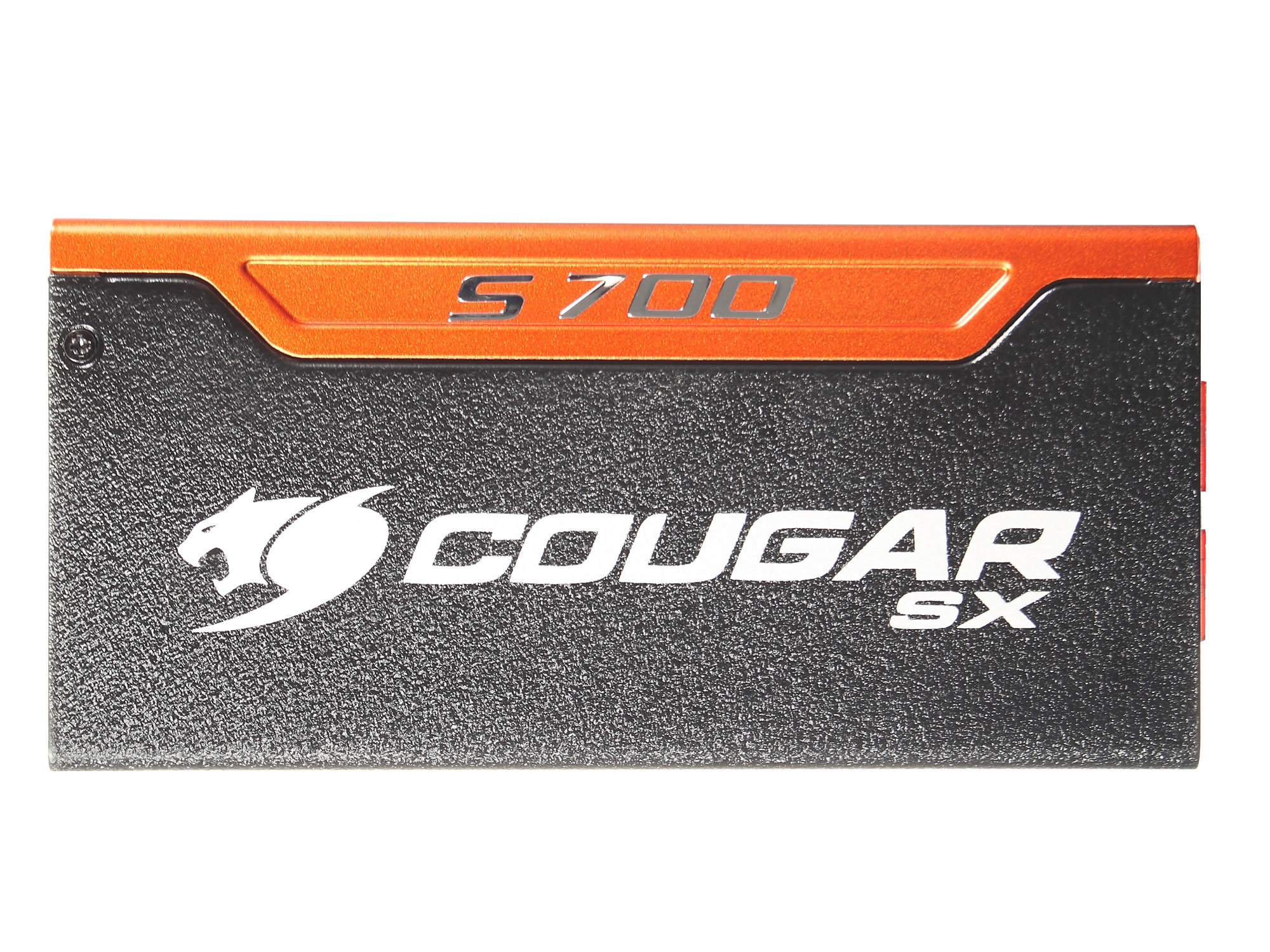

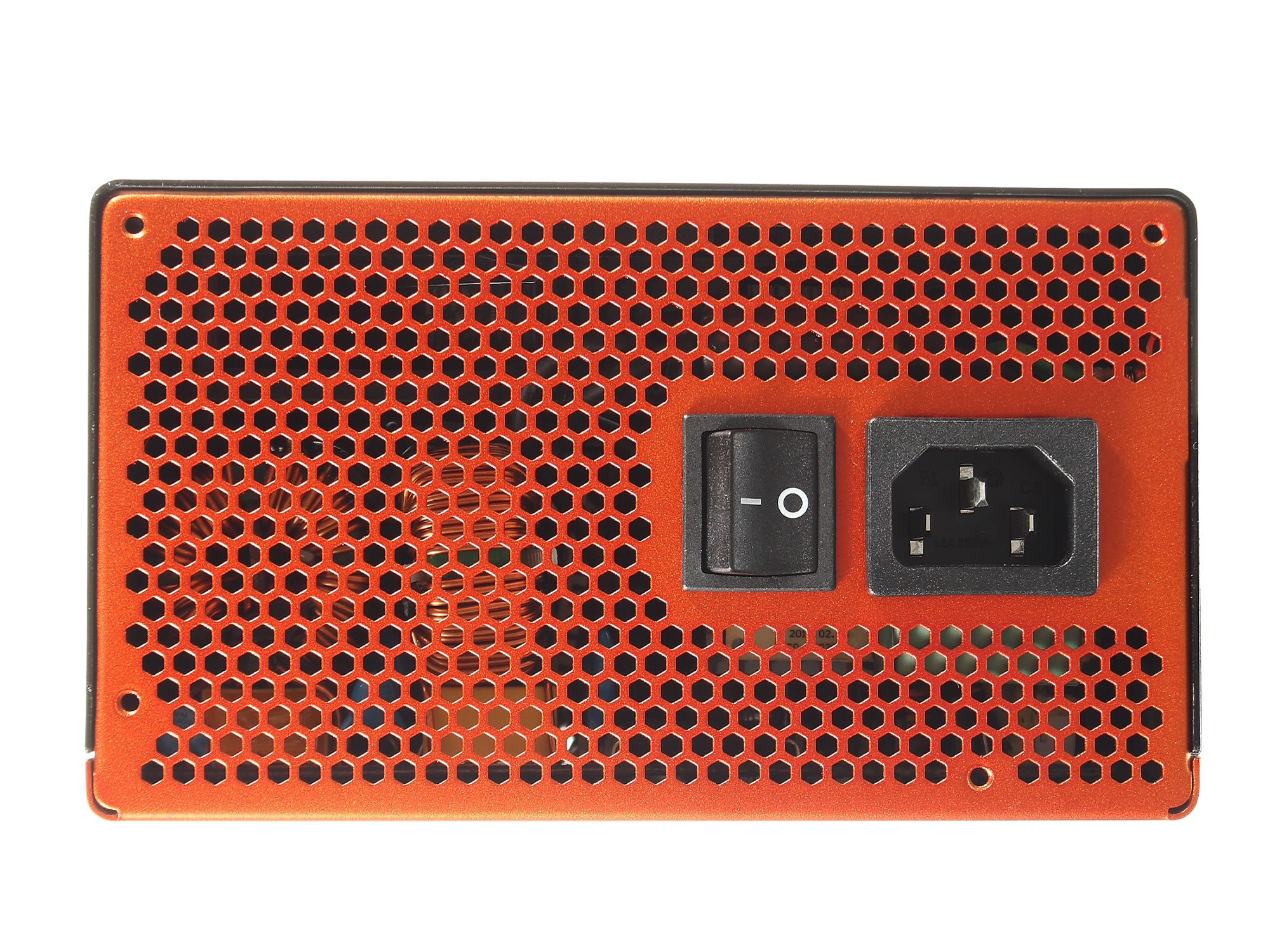

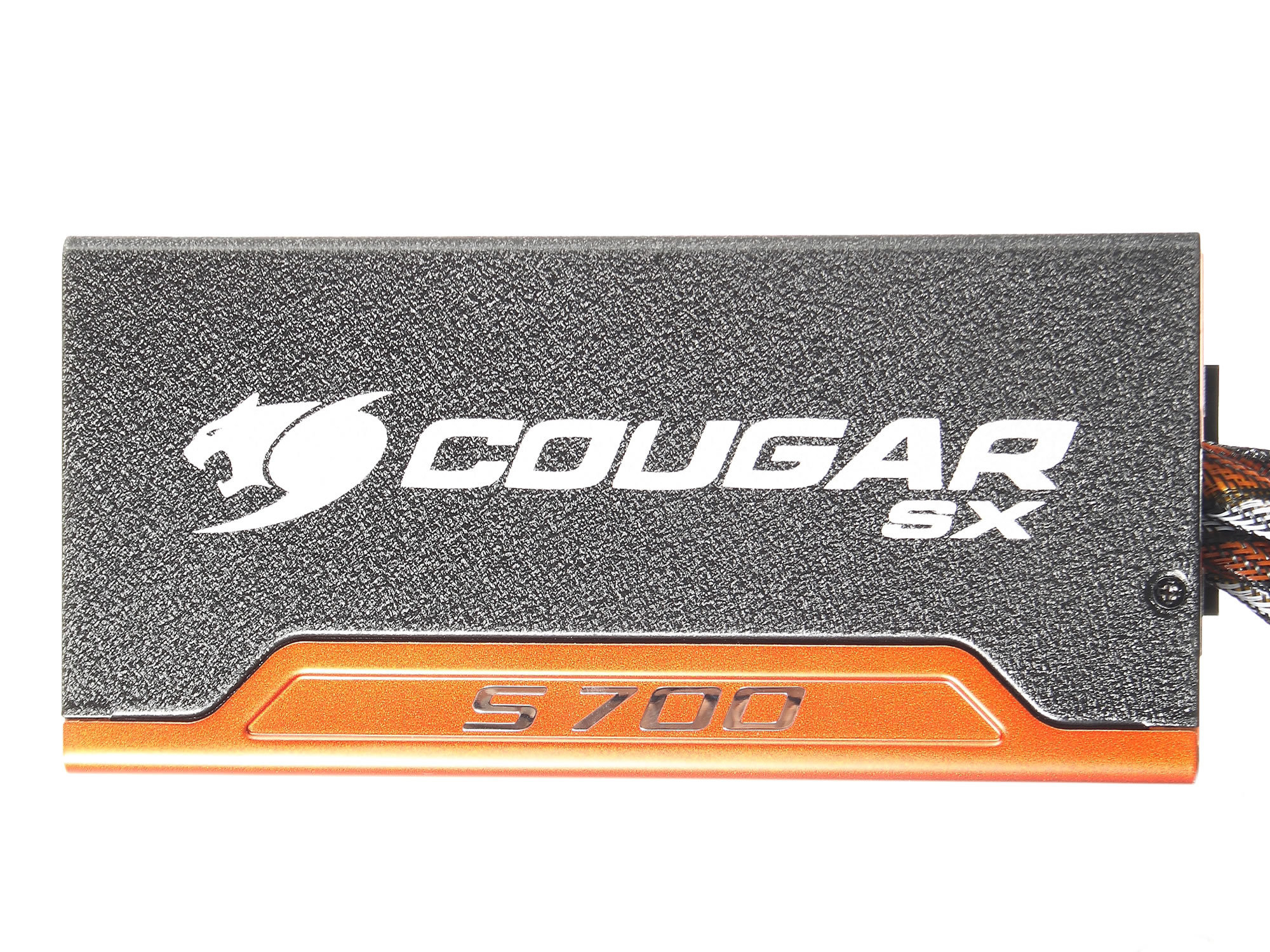

COUGAR SX700 power supply unit 700, 684 Black, Orange, Silver
Model SX700Part no. COUGAR SX700/R
20 specifications
- ColourBlack, Orange, Silver
- Total power700, 684
- Number of SATA power connectors8
Overview
- Colour
- Black, Orange, Silver
- Total power
- 700, 684
- Number of SATA power connectors
- 8
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- SX700
- Part numbers
- COUGAR SX700/R, COUGAR SX 700/R
- Also known as
- COUGAR SX700 power supply unit 700, 684 Black, Orange, Silver
Specifications
20 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 700, 684 |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Efficiency | 91% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Orange, Silver |
| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE, FCC |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 180 x 86 mm |
