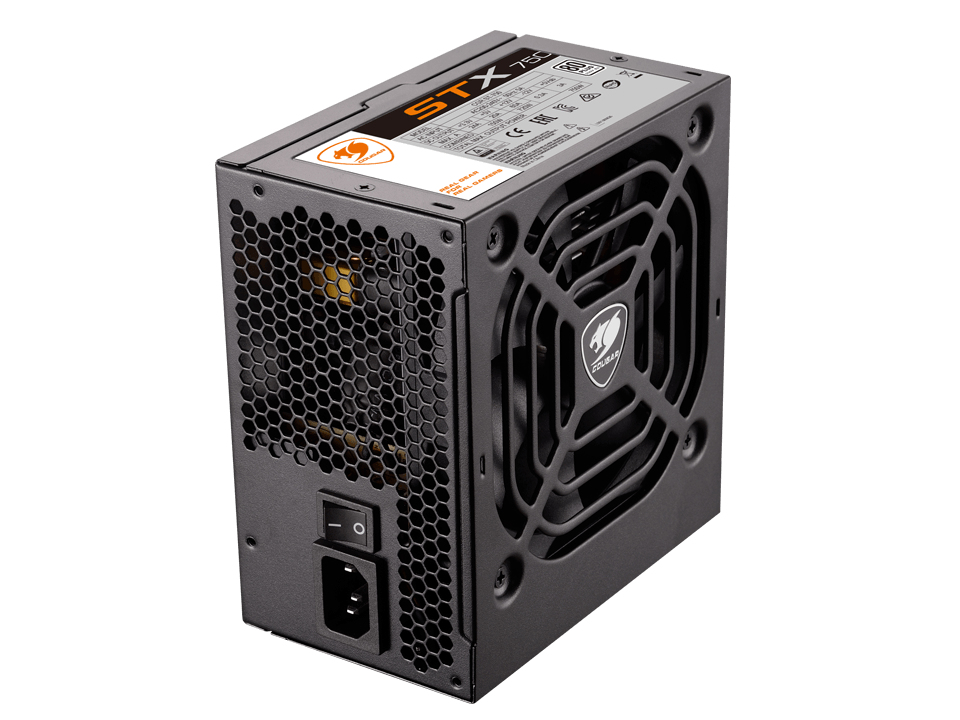

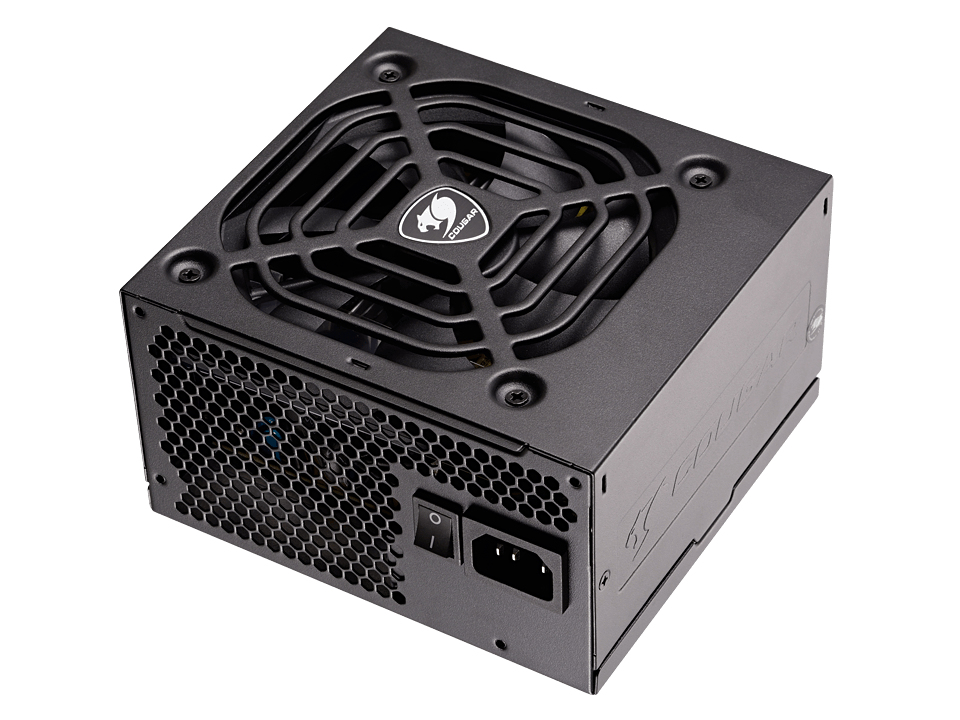

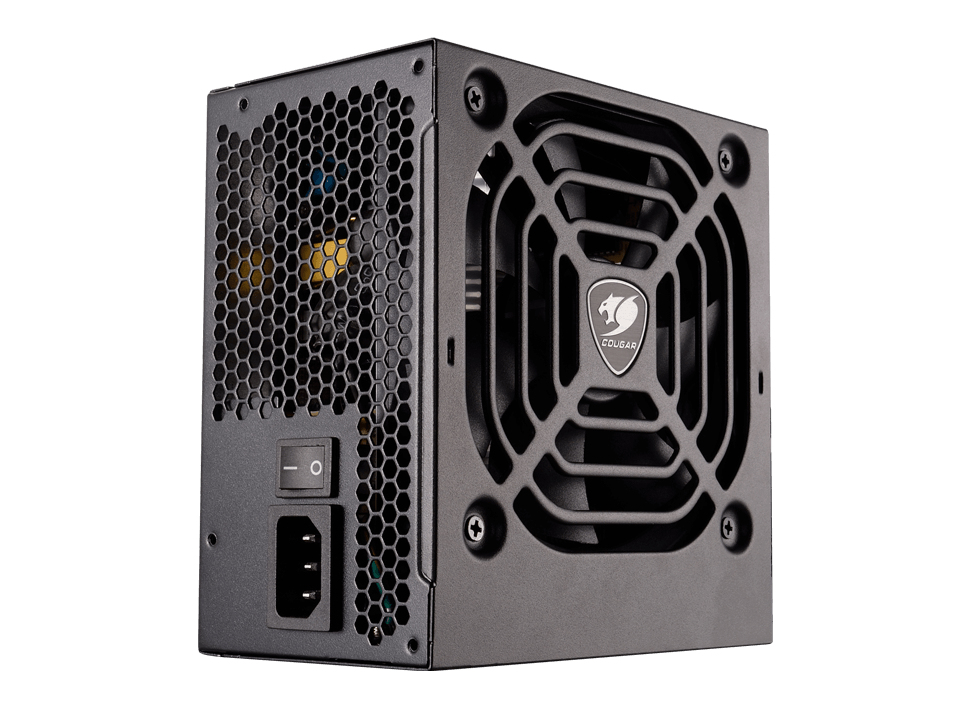

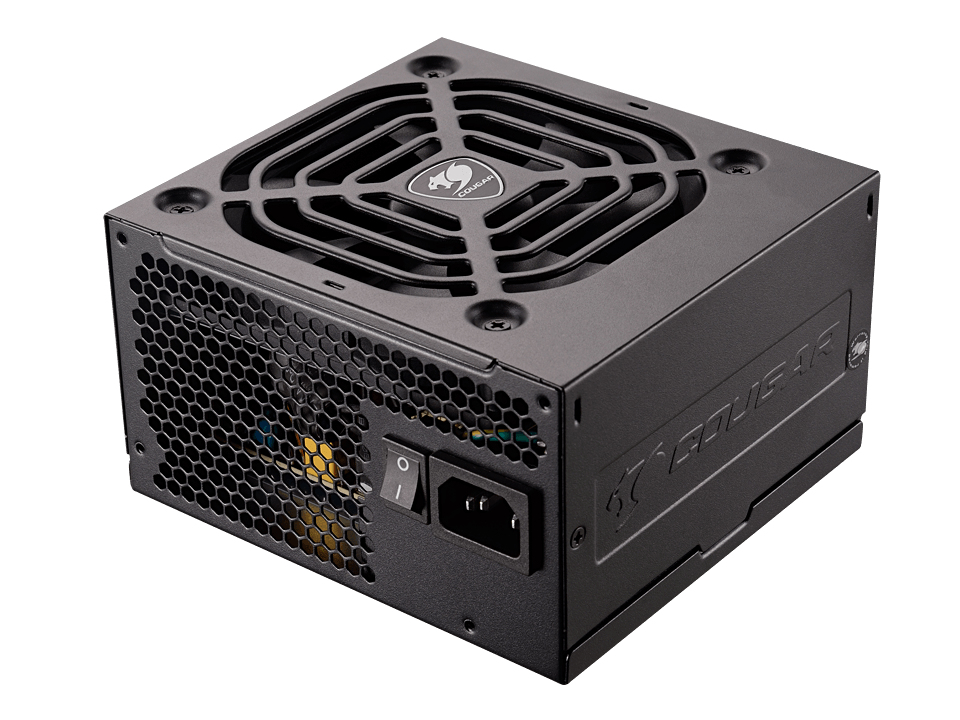

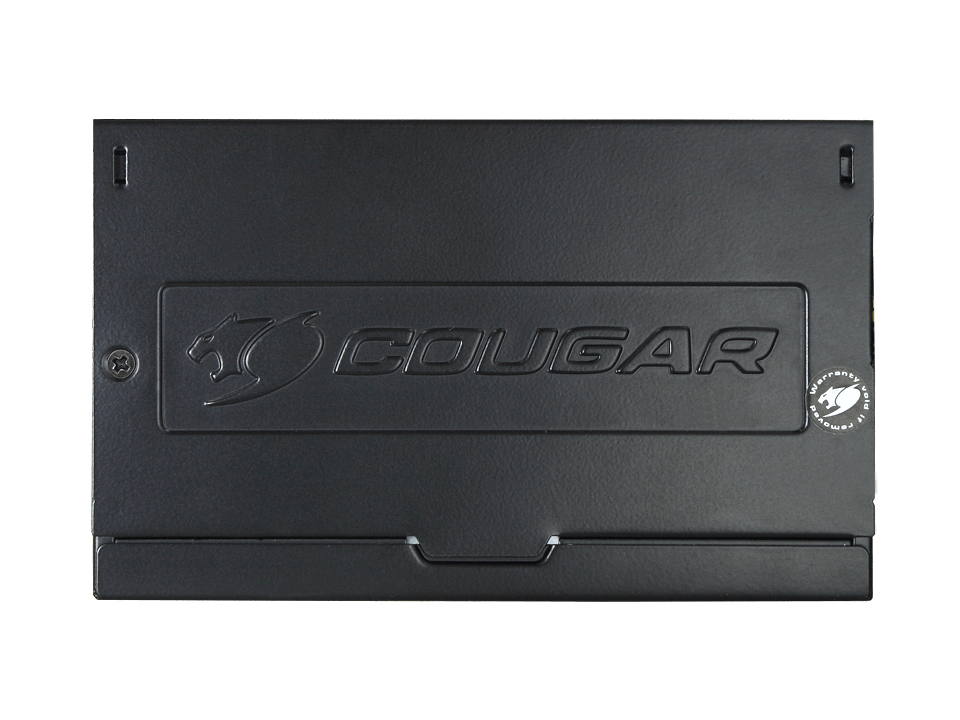

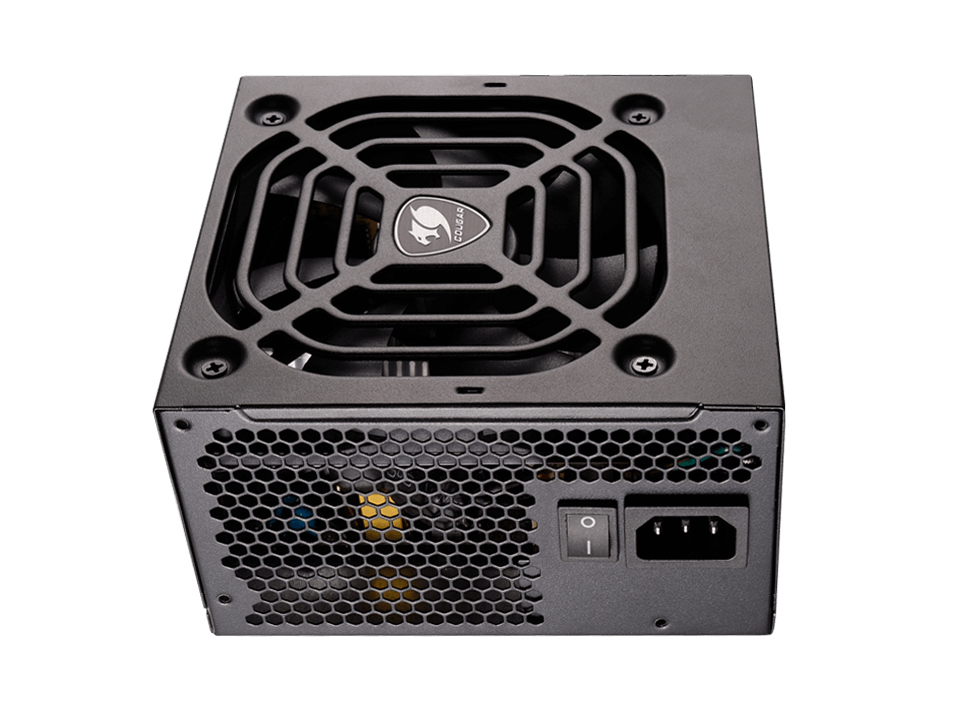

STX750 power supply unit
750 W 20+4 pin ATX ATX Black
Model STX750Part no. 31TD075.0009EAN 4715302447878
41 specifications
- Noise30 dB
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 30 dB
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- STX750
- Part number
- 31TD075.0009
- EAN / UPC
- 4715302447878
- Also known as
- COUGAR STX750 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
41 specifications in 7 groups
Power

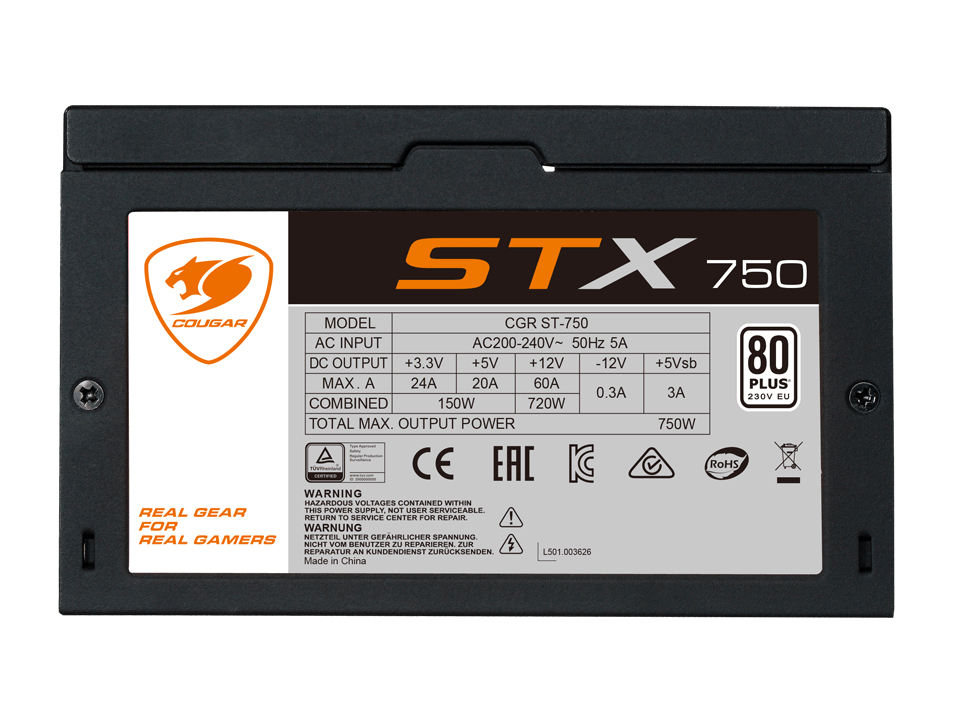

| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 720 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 60 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Noise level | 30 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

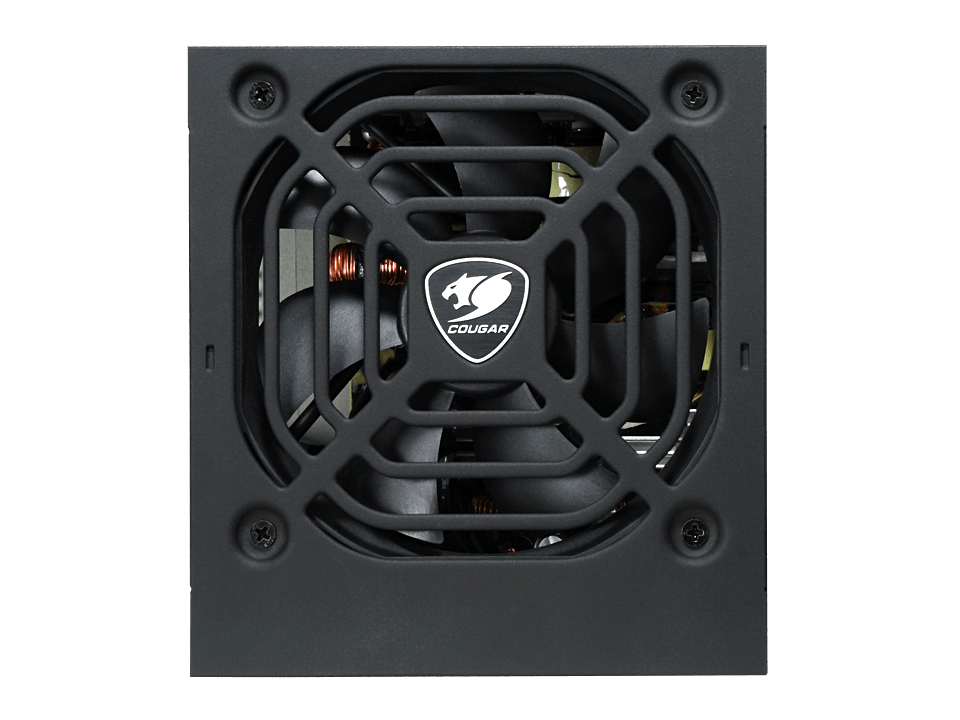

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

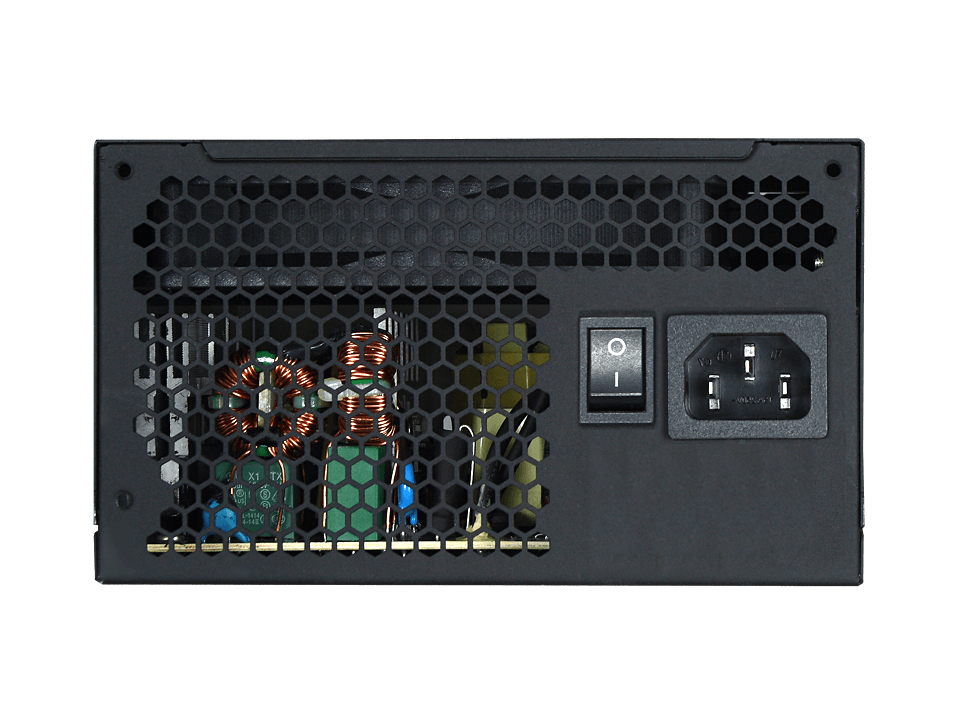

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Noise level (quiet mode, 50%) | 24 dB |
| Noise level (full-load mode, 100%) | 30 dB |
