Cougar PSU Auric 750
Model Cougar PSU Auric 750Part no. 31TP075058H-01EAN 4710483771538
43 specifications
- Weight1.55 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.55 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- Cougar PSU Auric 750
- Part number
- 31TP075058H-01
- EAN / UPC
- 4710483771538
- Also known as
- COUGAR PSU Auric 750 Black
Specifications
43 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10-5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Under voltage |

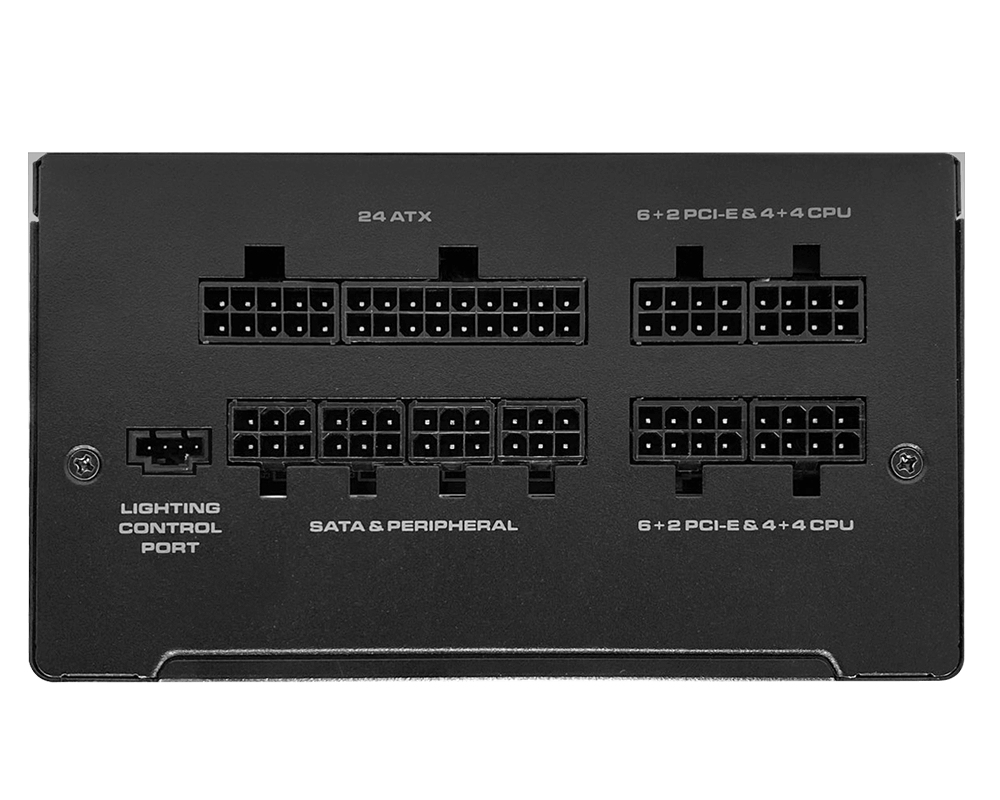

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 8 |
| SATA power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 2.76 kg |
