COUGAR PowerX power supply unit 550, 480 Black, Orange
Model PowerXPart no. COUGAR X550/REAN 4710918402693
18 specifications
- ColourBlack, Orange
- Total power550, 480
- Number of SATA power connectors6
Overview
- Colour
- Black, Orange
- Total power
- 550, 480
- Number of SATA power connectors
- 6
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- PowerX
- Part numbers
- COUGAR X550/R, COUGAR X700/R, COUGAR POWERX 700W/R
- EAN / UPC
- 4710918402693
- Also known as
- COUGAR PowerX power supply unit 550, 480 Black, Orange
Specifications
18 specifications in 5 groups

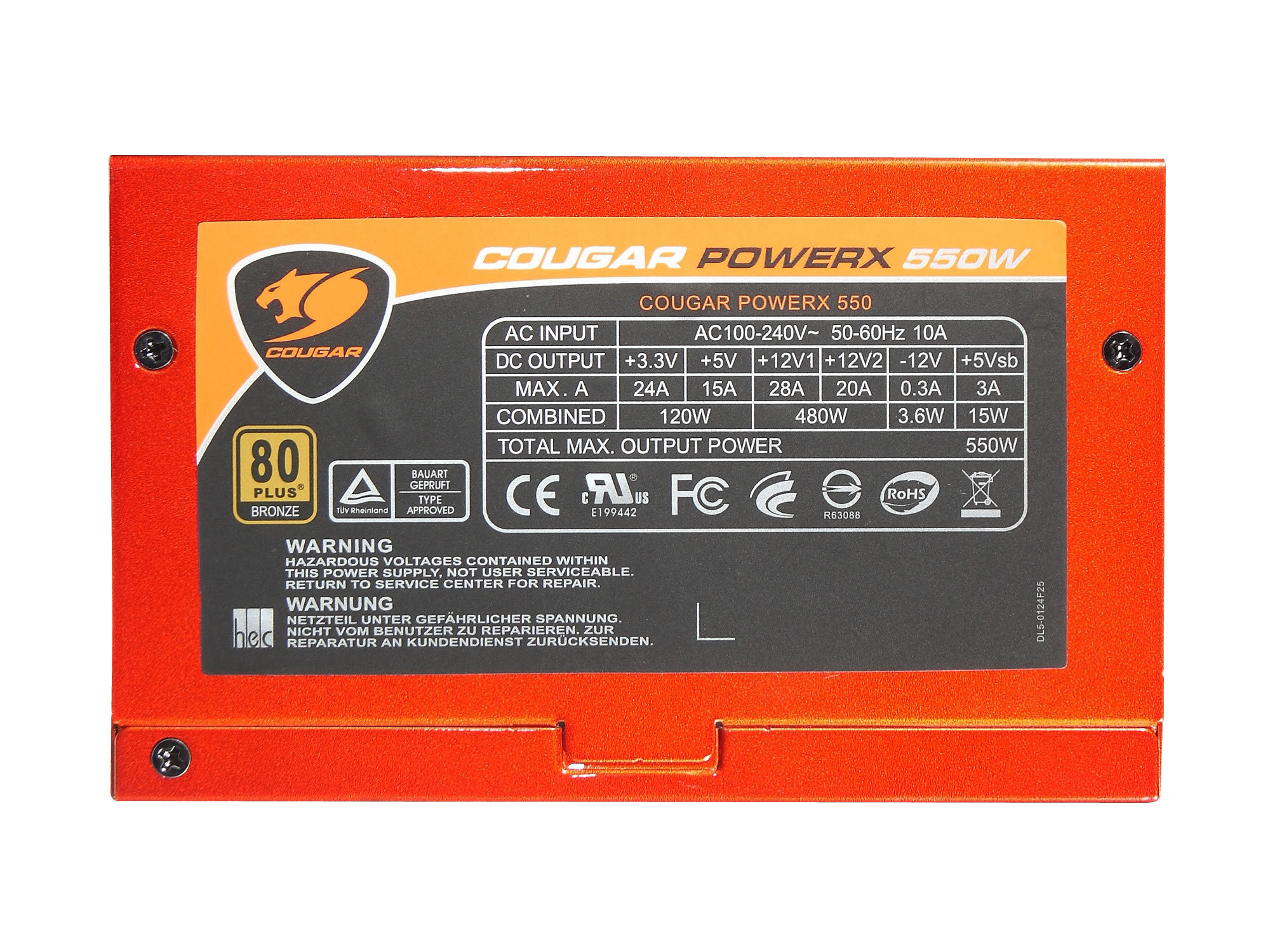

Power
| Specification | Value |
|---|---|
| Total power | 550, 480 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Efficiency | 89% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Orange |

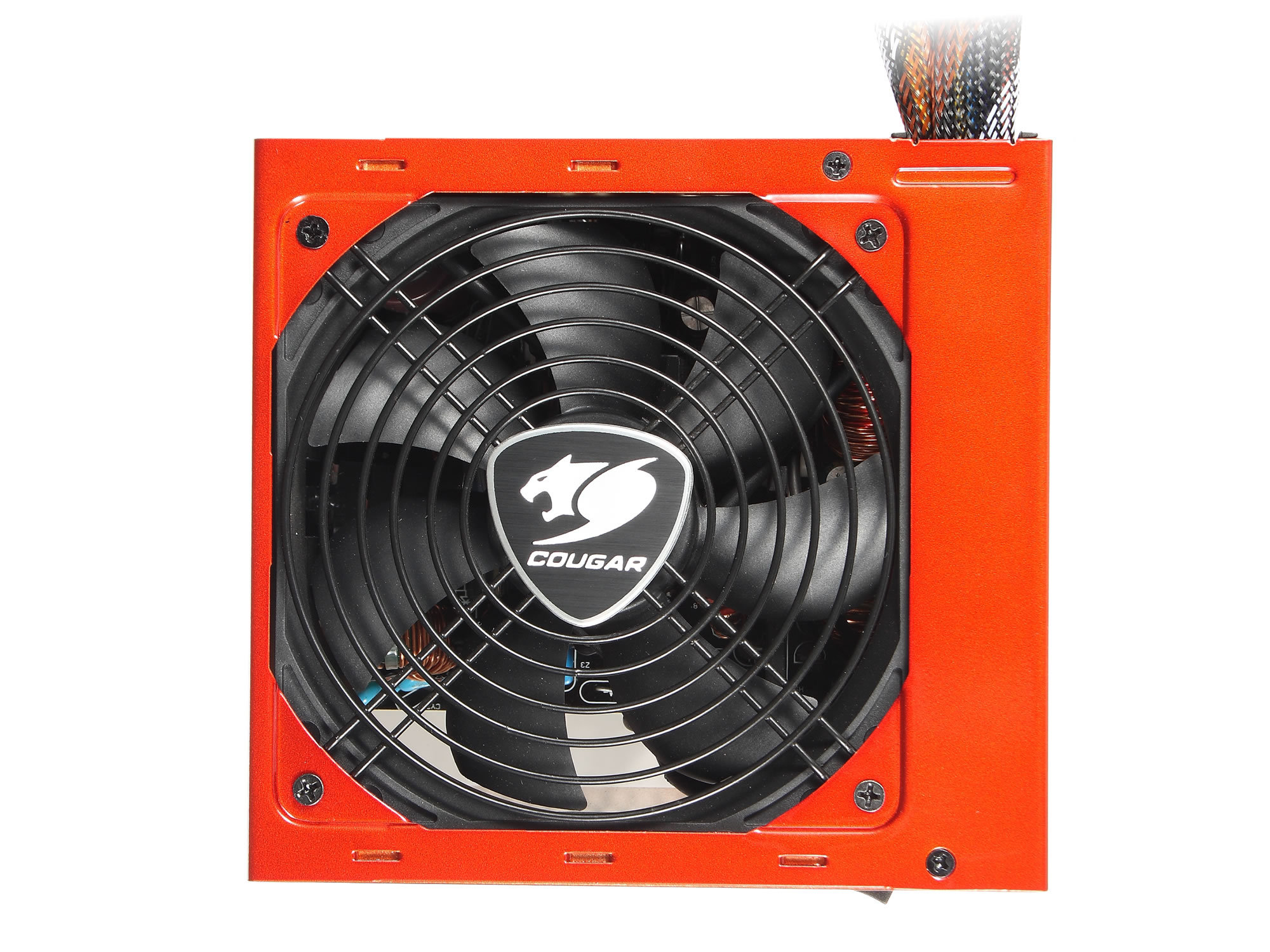

| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CB, FCC |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
