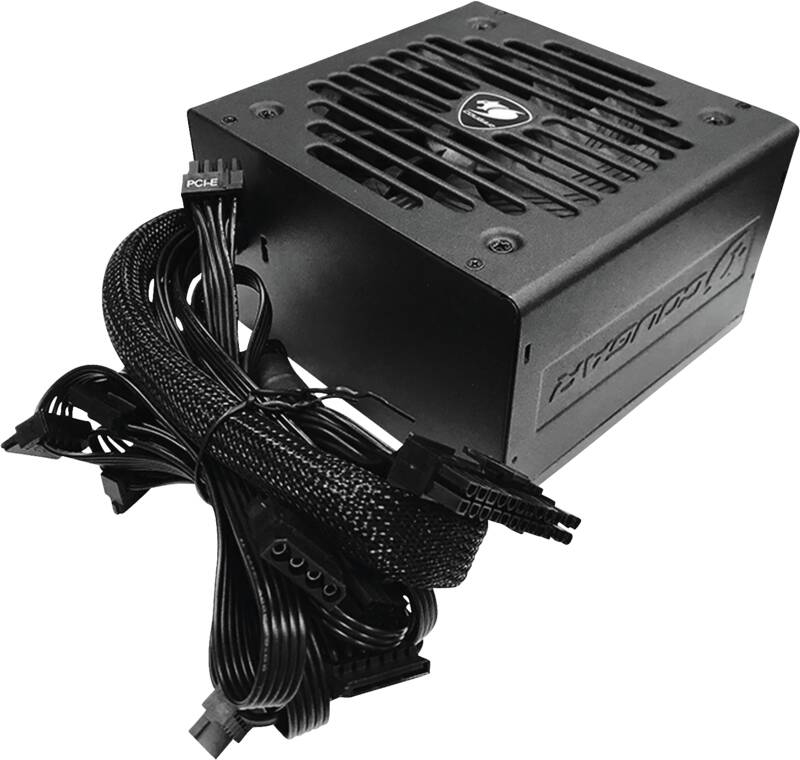

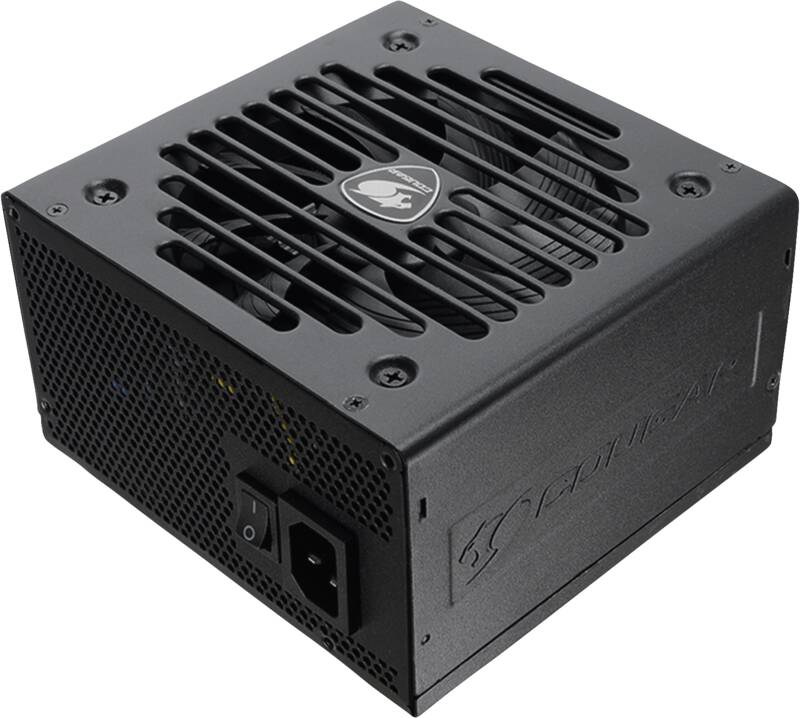

Netzteil VTE X2 650
Model Netzteil VTE X2 650Part no. CGR-VX-650EAN 4710483771675
48 specifications
- Weight1.35 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- Netzteil VTE X2 650
- Part number
- CGR-VX-650
- EAN / UPC
- 4710483771675
- Also known as
- COUGAR Netzteil VTE X2 650 power supply unit 650 W 20+4 pin ATX Black
Specifications
48 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| Input current | 15 A |
| Combined power (+3.3V) | 140 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 140 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 99% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PATA, PCIe, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 158 mm |
| Package depth | 187 mm |
| Package height | 165 mm |
| Package weight | 1.65 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
