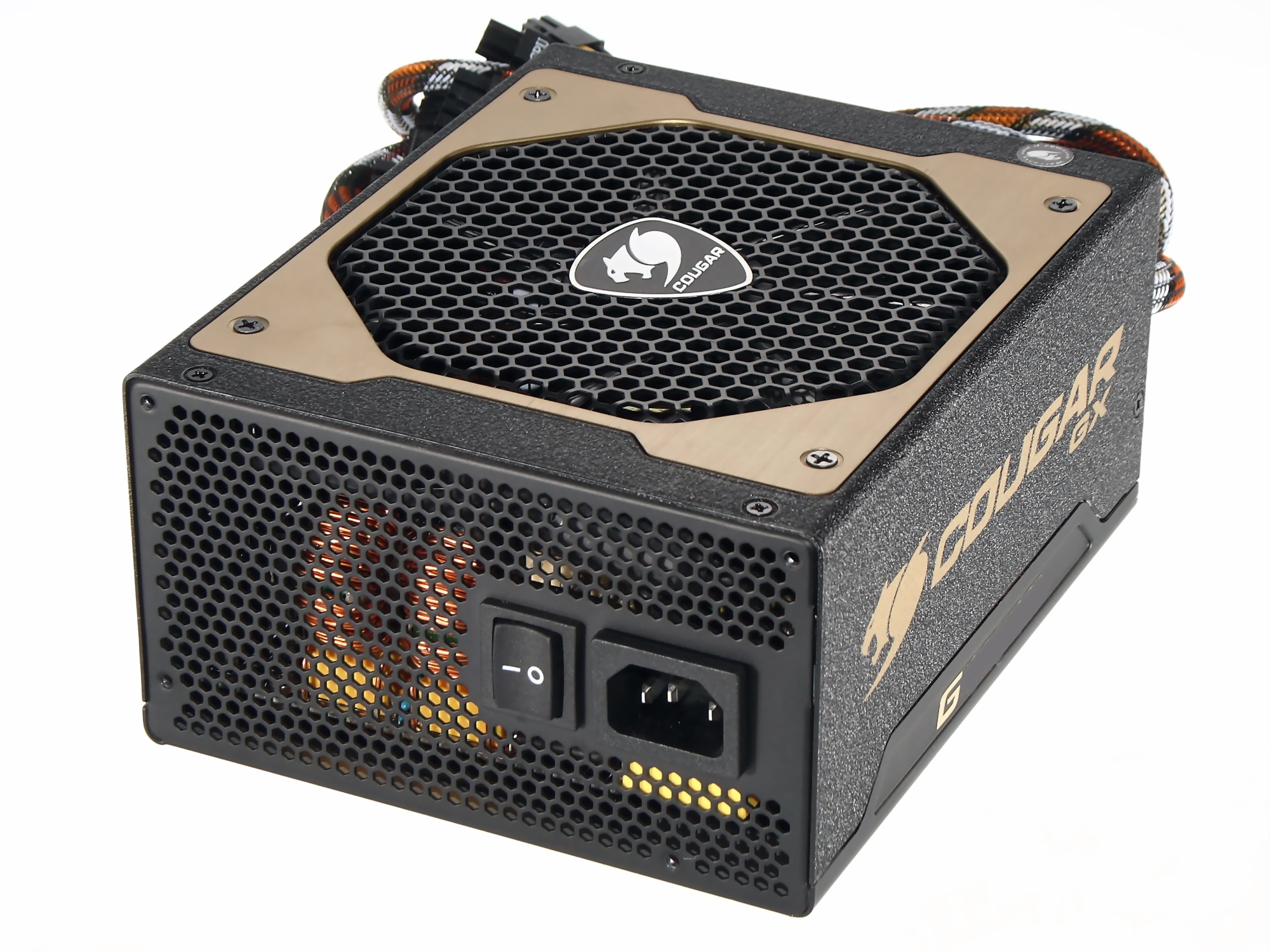

COUGAR GX1050 power supply unit
1050 W 20+4 pin ATX ATX Black
Model GX1050Part no. COUGAR GX 1050EAN 4710918407216
39 specifications
- ColourBlack
- Total power1050 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- SafetyCB,CE, FCC, CCC
- Sustainability certificatesENERGY STAR
Overview
- Colour
- Black
- Total power
- 1050 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Safety
- CB,CE, FCC, CCC
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- GX1050
- Part numbers
- COUGAR GX 1050, COUGAR GX1050V3/R
- EAN / UPC
- 4710918407216
- Also known as
- COUGAR GX1050 power supply unit 1050 W 20+4 pin ATX ATX Black
Specifications
39 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1050 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 13 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+12V5,+12V6,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 1008 W |
| Combined power (+5V) | 80 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 150 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| LED indicators | No |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB,CE, FCC, CCC |
Certificates
| Specification | Value |
|---|---|
| Certification | 2009/125/EC |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 180 x 86 mm |
| Power management | Yes |
| Power over Ethernet (PoE) | No |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
