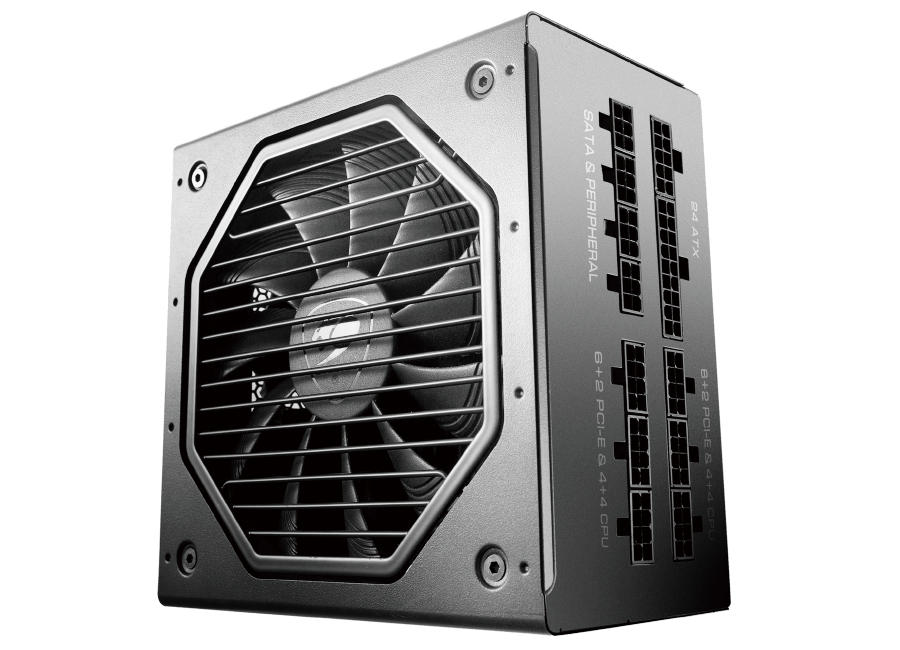

GX-F650 power supply unit
650 W 20+4 pin ATX ATX Black
Model GX-F650Part no. GXF650EAN 4715302449568
42 specifications
- Noise29 dB
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Sustainability certificatesENERGY STAR
Overview
- Noise
- 29 dB
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- GX-F650
- Part numbers
- GXF650, 31TP065.0005
- EAN / UPC
- 4715302449568
- Also known as
- COUGAR GX-F650 power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| Peak power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.35 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

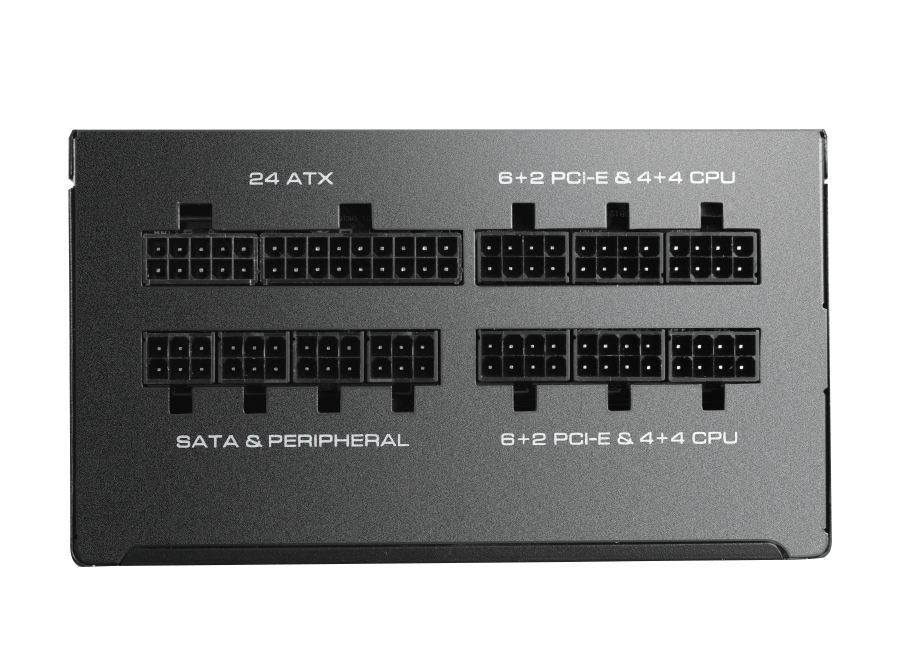

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 640 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Noise level | 29 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

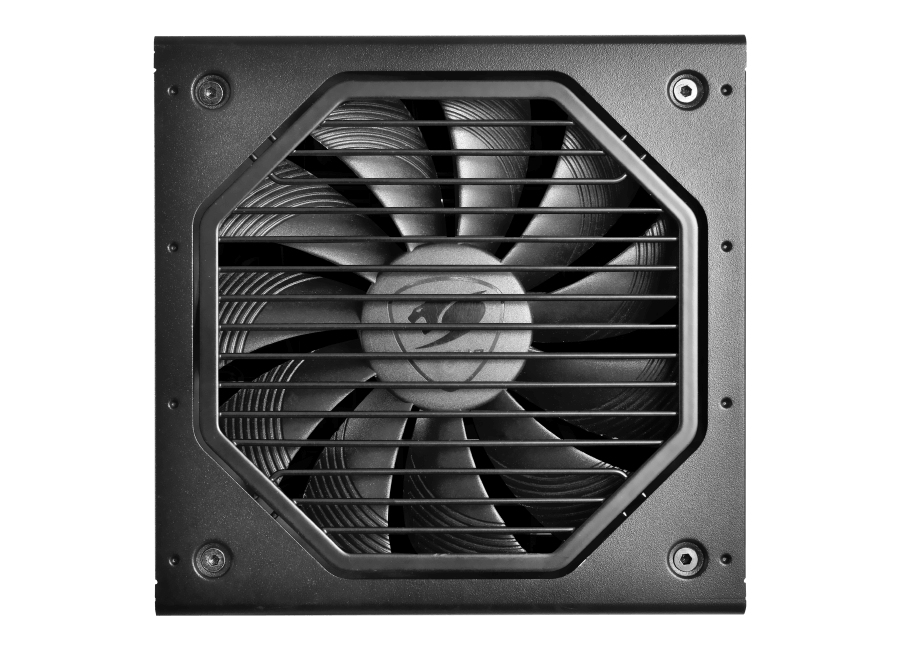

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 500 - 1500 RPM |
| Fan location | Top |

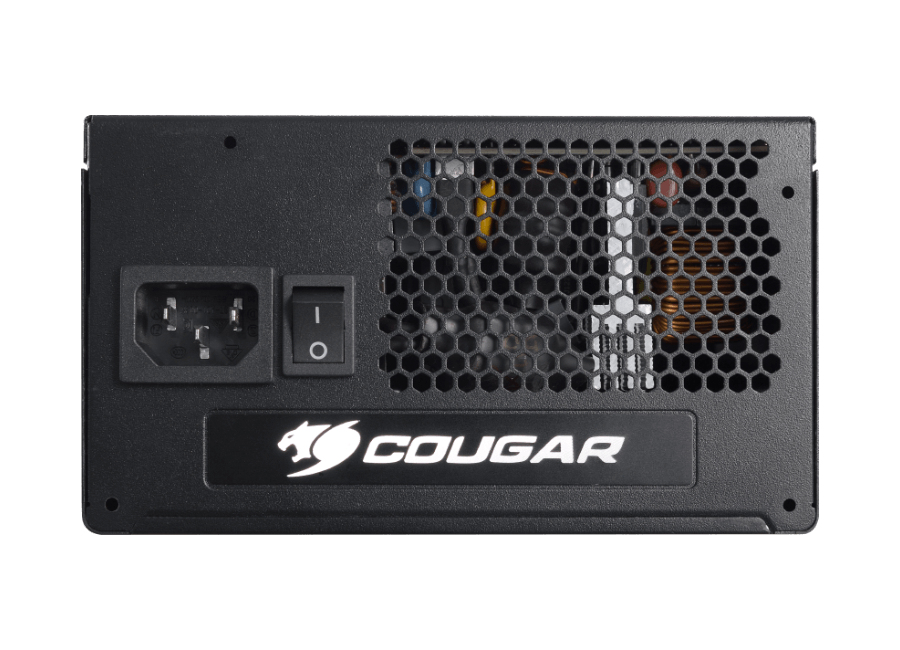

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Cable ties included | Yes |
| Noise level (silent mode, <30%) | 15 dB |
| Noise level (quiet mode, 50%) | 16 dB |
| Noise level (full-load mode, 100%) | 29 dB |
