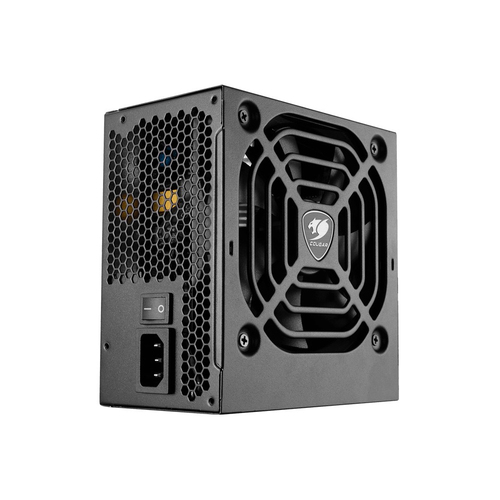

COUGAR GX-F550 power supply unit

COUGAR GX-F550 power supply unit

550 W 20+4 pin ATX ATX Black

Model GX-F550Part no. 31TP055.0008EAN 4715302449551

50 specifications
  • Noise29 dB
  • ColourBlack
  • Total power550 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Sustainability certificatesENERGY STAR
See all specifications

Overview

Noise
29 dB
Colour
Black
Total power
550 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Sustainability certificates
ENERGY STAR
Brand
COUGAR
Model
GX-F550
Part number
31TP055.0008
EAN / UPC
4715302449551
Also known as
COUGAR GX-F550 power supply unit 550 W 20+4 pin ATX ATX Black

Specifications

50 specifications in 7 groups

Power

Total power550 W
Peak power550 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current9 - 4 A
Maximum input current (@110V)9 A
Maximum input current (@220V)4 A
Combined power (+3.3V)130 W
Combined power (+12V)546 W
Combined power (+5V)130 W
Combined power (-12V)550 W
Combined power (+5Vsb)550 W
Max output current (+3.3V)24 A
Max output current (+12V)45.5 A
Max output current (+5V)24 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage, Overheating

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length60 cm
Number of PATA power connectors3
Number of SATA power connectors6
SATA power cable length690 mm
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length640 mm
PCI Express power connectors (6+2 pin)2
PCI Express power cable length60 cm
CPU power connector (4+4 pin)Yes
CPU power cable length70 cm
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
Noise level29 dB

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan speed500 - 1500 RPM
Fan locationTop
On/off switchYes

Certificates

Compliance certificatesRoHS

Technical details

Sustainability certificatesENERGY STAR

Other features

Screws includedYes
Cable ties includedYes
Noise level (silent mode, <30%)15 dB
Noise level (quiet mode, 50%)16 dB
Noise level (full-load mode, 100%)29 dB
Power managementYes
