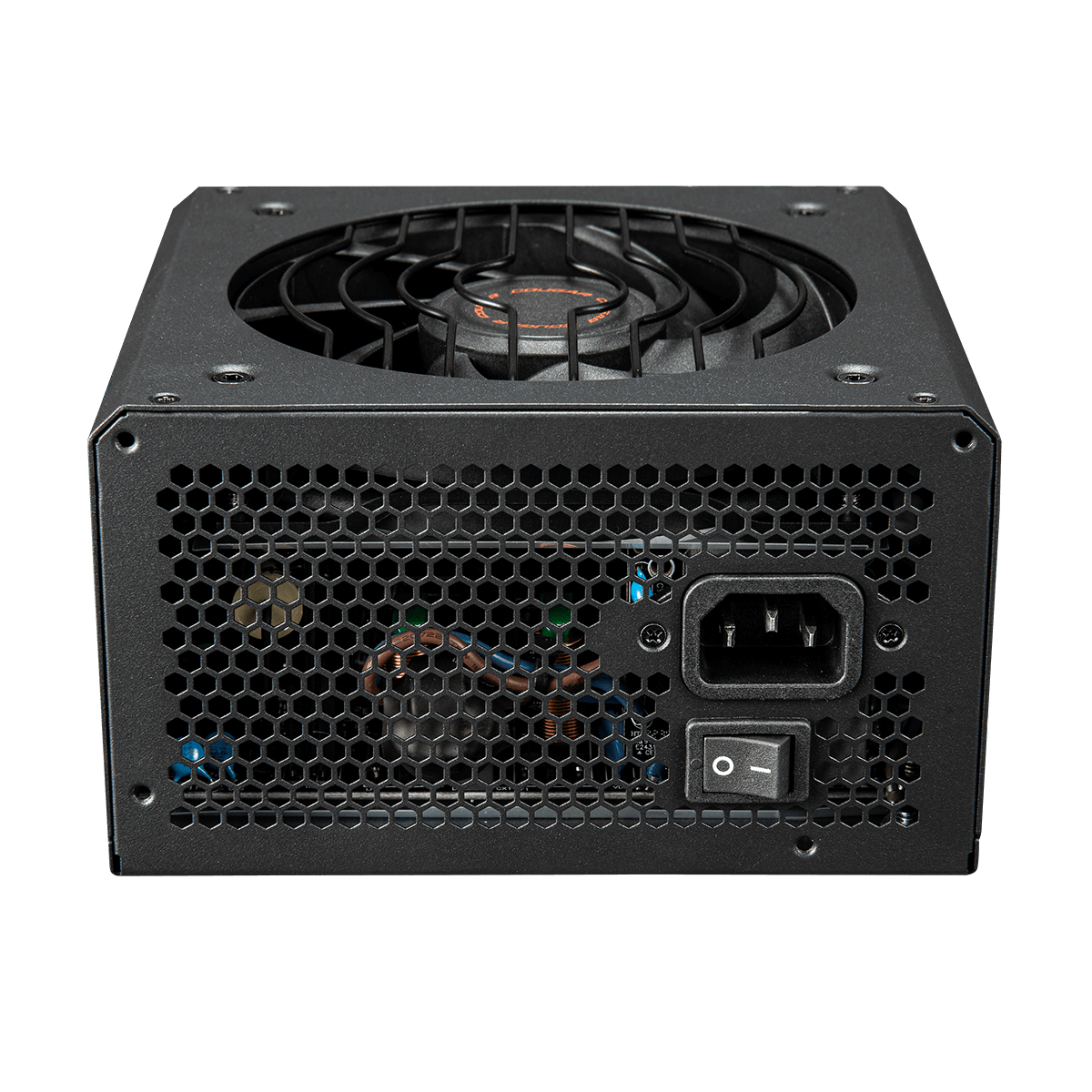

Power Supply GST
850W ATX3.1 / 80 Plus Gold
Model GST850Part no. 31GH085001P01EAN 4710483778186
53 specifications
- Weight2.22 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 40 °C
Overview
- Weight
- 2.22 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 40 °C
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- GST850
- Part number
- 31GH085001P01
- EAN / UPC
- 4710483778186
- Also known as
- COUGAR Power Supply GST 850W ATX3.1 / 80 Plus Gold
Specifications
53 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.22 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 215 mm |
| Package depth | 290 mm |
| Package height | 105 mm |
| Package weight | 3.02 kg |
