GEM 1200
Model GEM 1200Part no. 31GM120001P01EAN 4710483774119
40 specifications
- Weight2.42 kg
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.42 kg
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- GEM 1200
- Part number
- 31GM120001P01
- EAN / UPC
- 4710483774119
- Also known as
- COUGAR GEM 1200 power supply unit 1200 W 20+4 pin ATX Black
Specifications
40 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 20 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 92% |
| Power protection features | Over power, Over voltage, Under voltage, Over current, Short circuit |

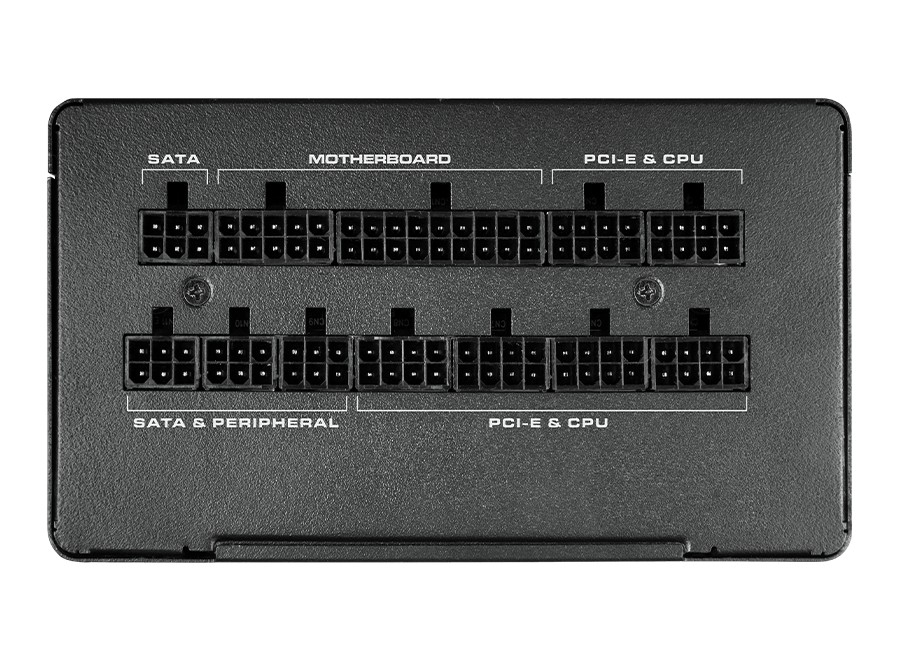

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 650 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 650 mm |
| PCI Express power cable length | 65 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 326 mm |
| Package height | 115 mm |
| Package weight | 2.92 kg |
| Package type | Box |
