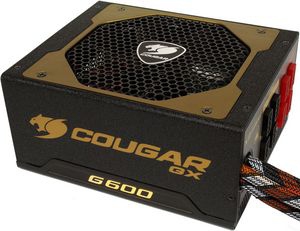

COUGAR G 600
Model G 600Part no. GX600/R
19 specifications
- ColourBlack
- Total power600 W
- Number of SATA power connectors8
- Power supply unit (PSU) form factorATX
Overview
- Colour
- Black
- Total power
- 600 W
- Number of SATA power connectors
- 8
- Power supply unit (PSU) form factor
- ATX
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- G 600
- Part number
- GX600/R
- Also known as
- COUGAR G 600 power supply unit 600 W ATX Black
Specifications
19 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 - 10 A |
| Efficiency | 93% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |

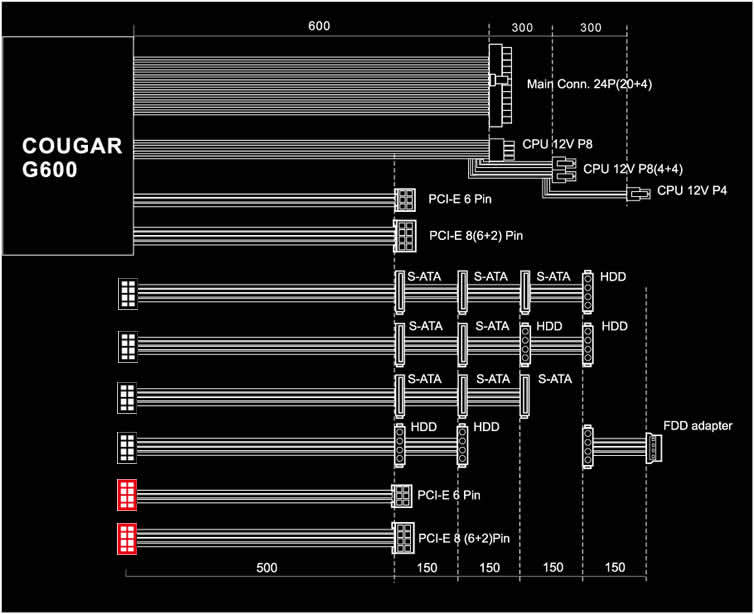

Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (8-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |

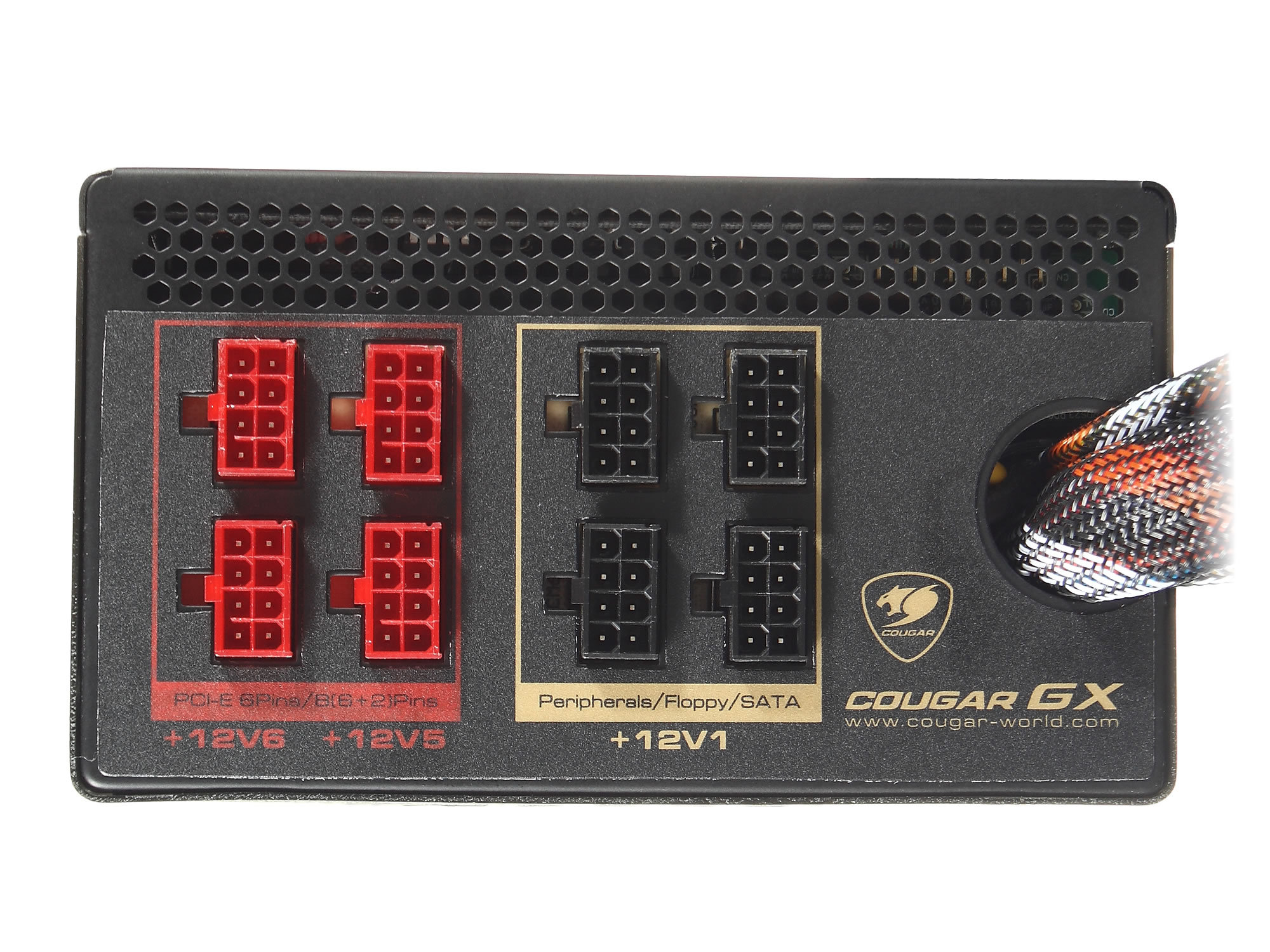

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

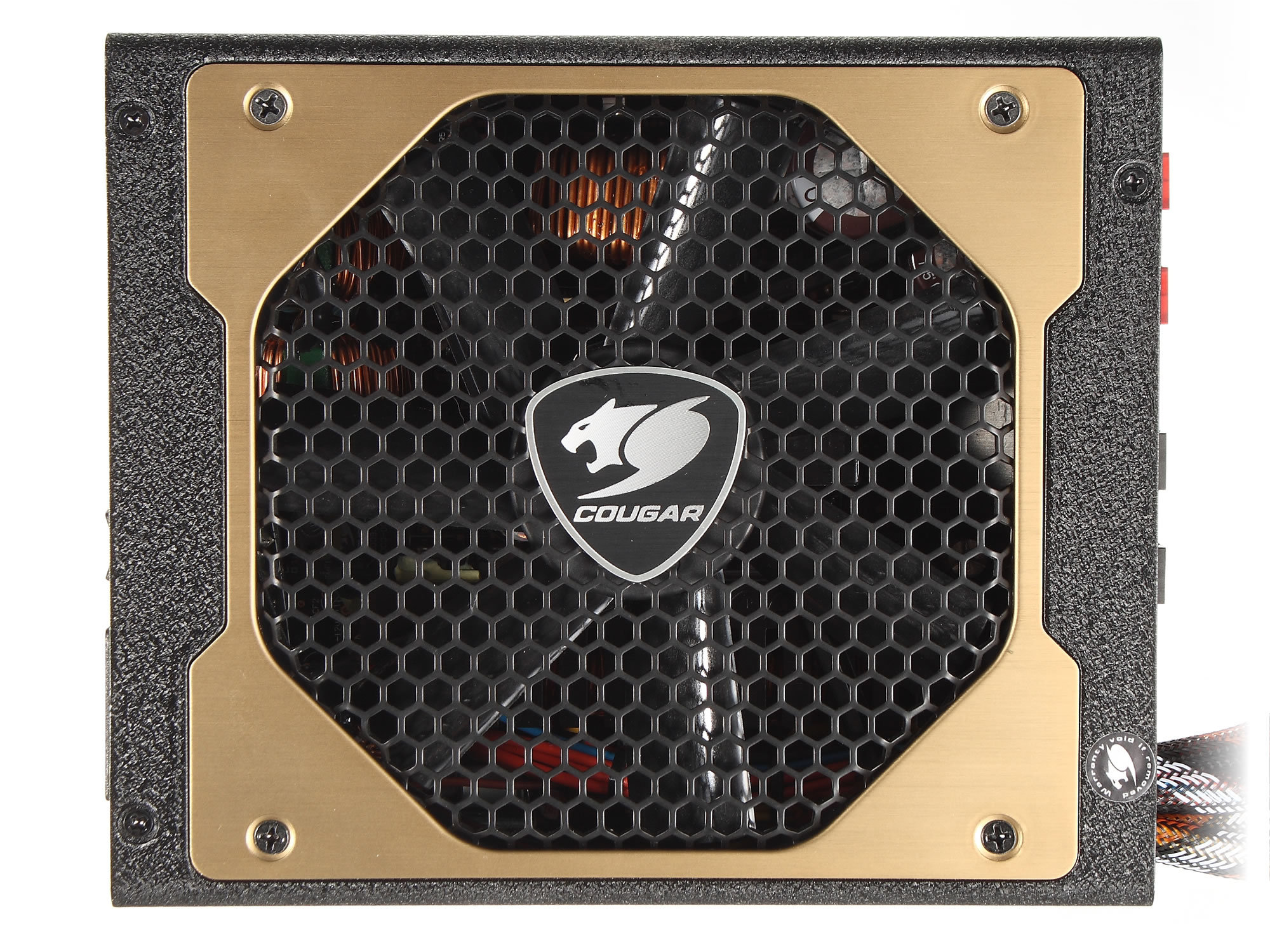

| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE, FCC |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 180 x 86 mm |
| Output voltage note | +3.3V, +5V, +12V1, +12V2, +12V3, +12V4, -12V, +5Vsb |
