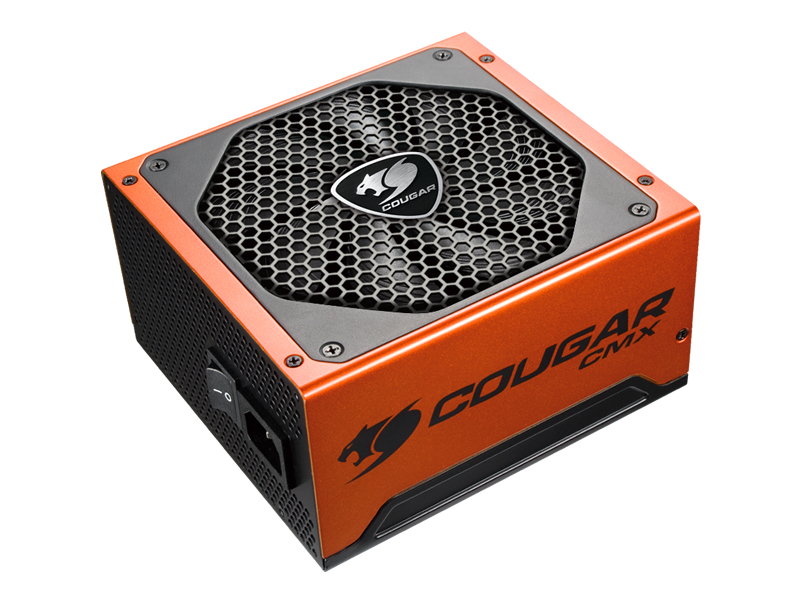

CMX850 power supply unit
850 W 20+4 pin ATX ATX Black, Red
Model CMX850Part no. 31TG085047-01EAN 4710918405403
36 specifications
- ColourBlack, Red
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black, Red
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CMX850
- Part number
- 31TG085047-01
- EAN / UPC
- 4710918405403
- Also known as
- COUGAR CMX850 power supply unit 850 W 20+4 pin ATX ATX Black, Red
Specifications
36 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 828 W |
| Combined power (+5V) | 160 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 50 A |
| Max output current (+12V2) | 50 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 88% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |

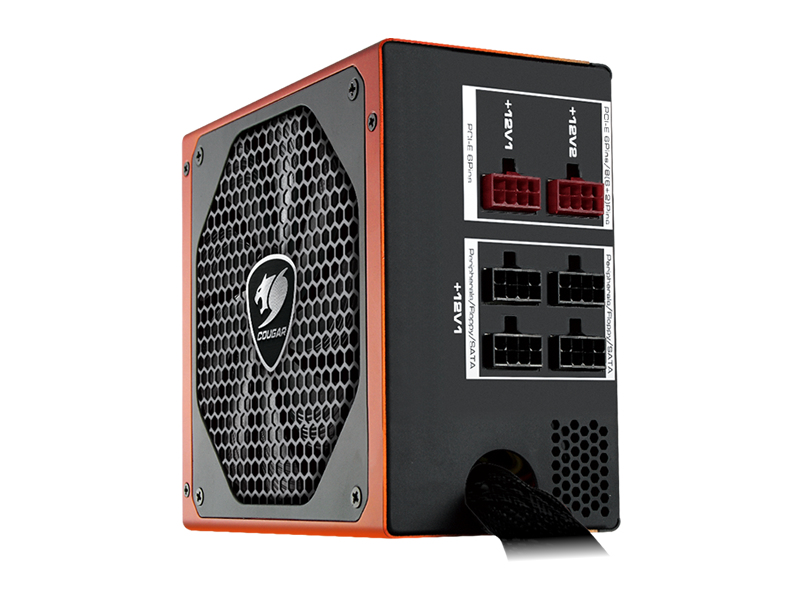

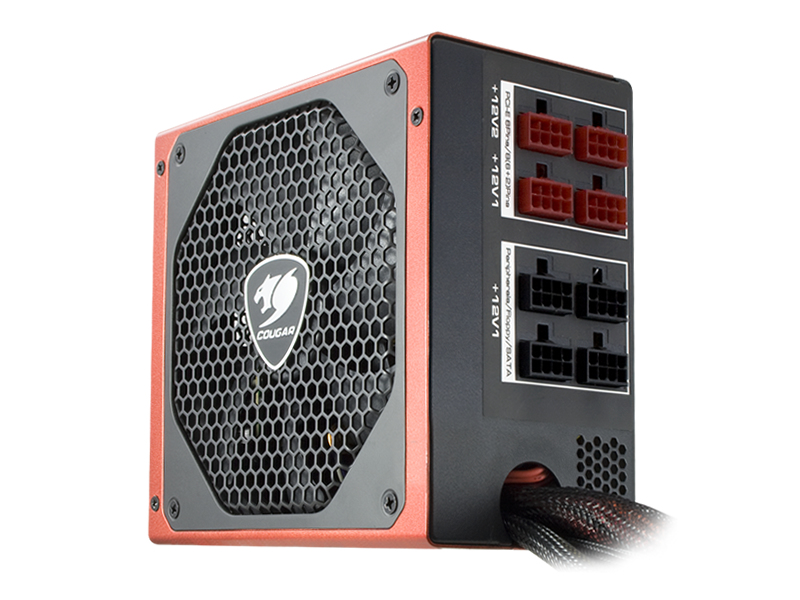

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |

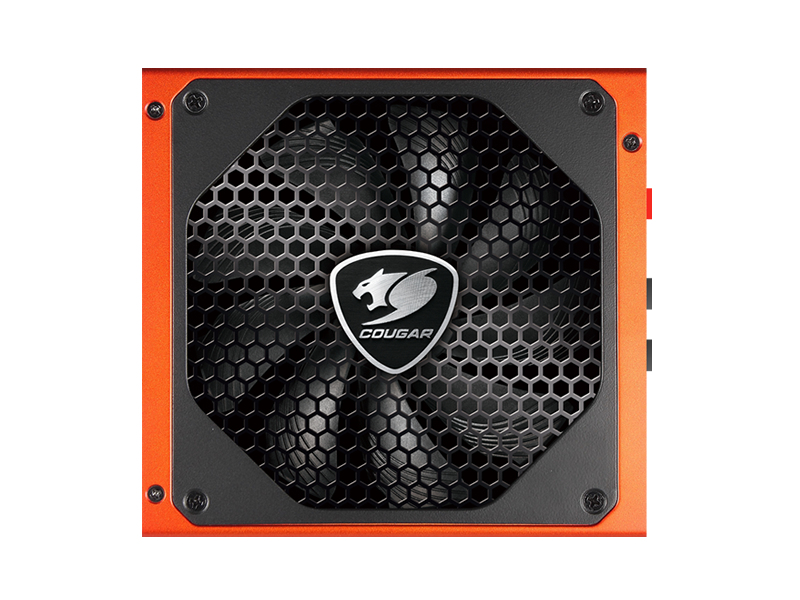

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

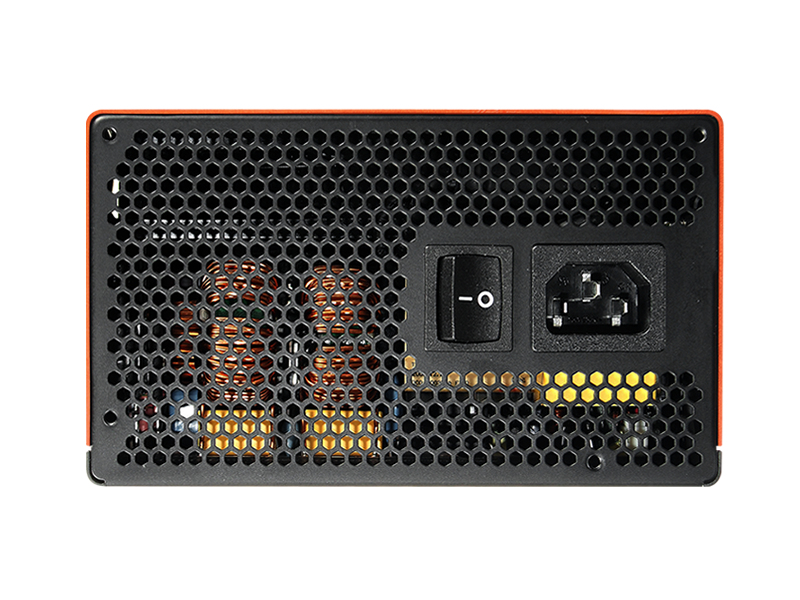

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
