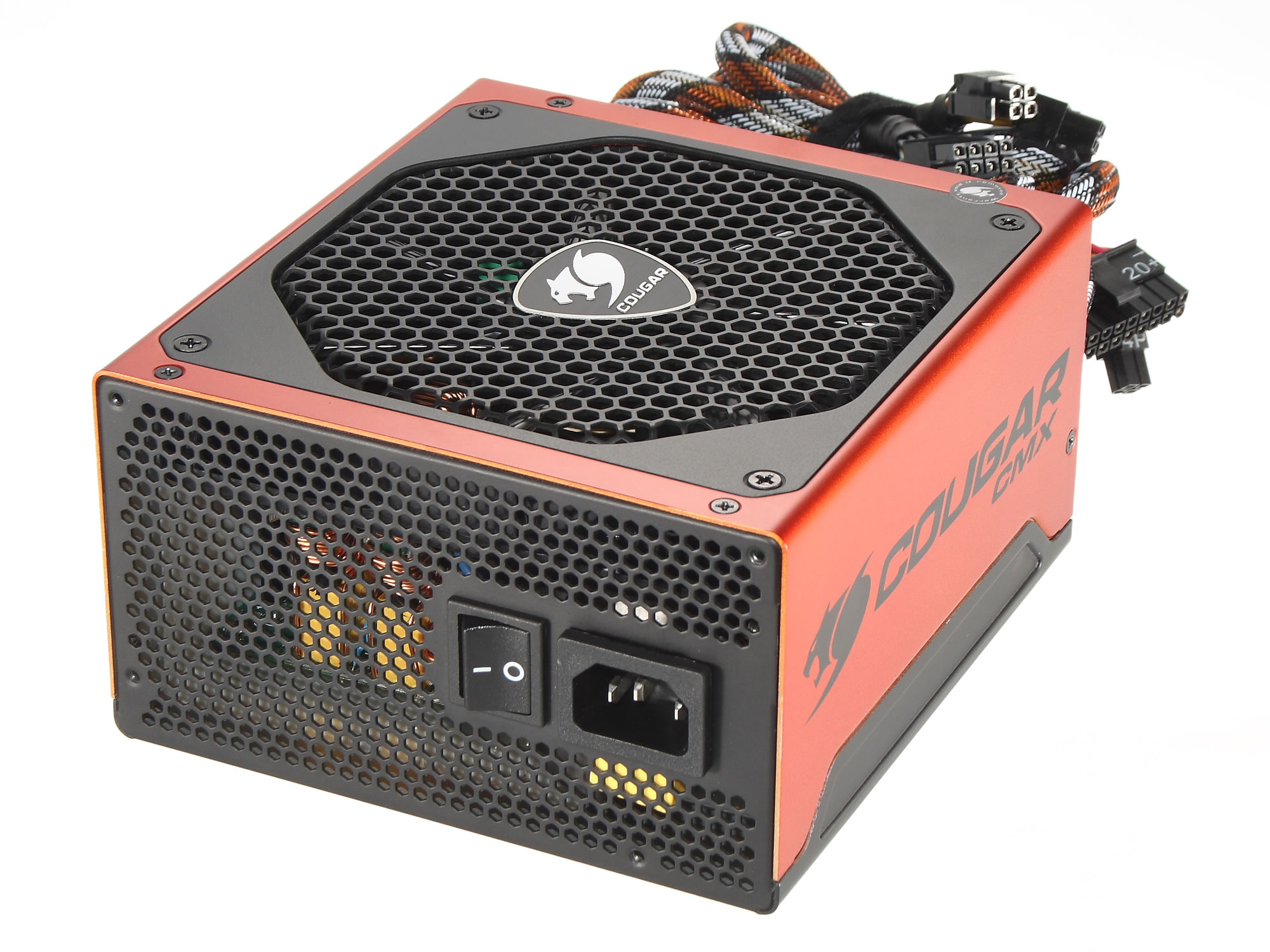

COUGAR CMX 700
Model CMX 700Part no. COUGAR 700CMX/R
42 specifications
- ColourBlack, Red
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Sustainability certificatesENERGY STAR
Overview
- Colour
- Black, Red
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CMX 700
- Part number
- COUGAR 700CMX/R
- Also known as
- COUGAR CMX 700 power supply unit 700 W 20+4 pin ATX ATX Black, Red
Specifications
42 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 115 - 240 V |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 60 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 60 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |

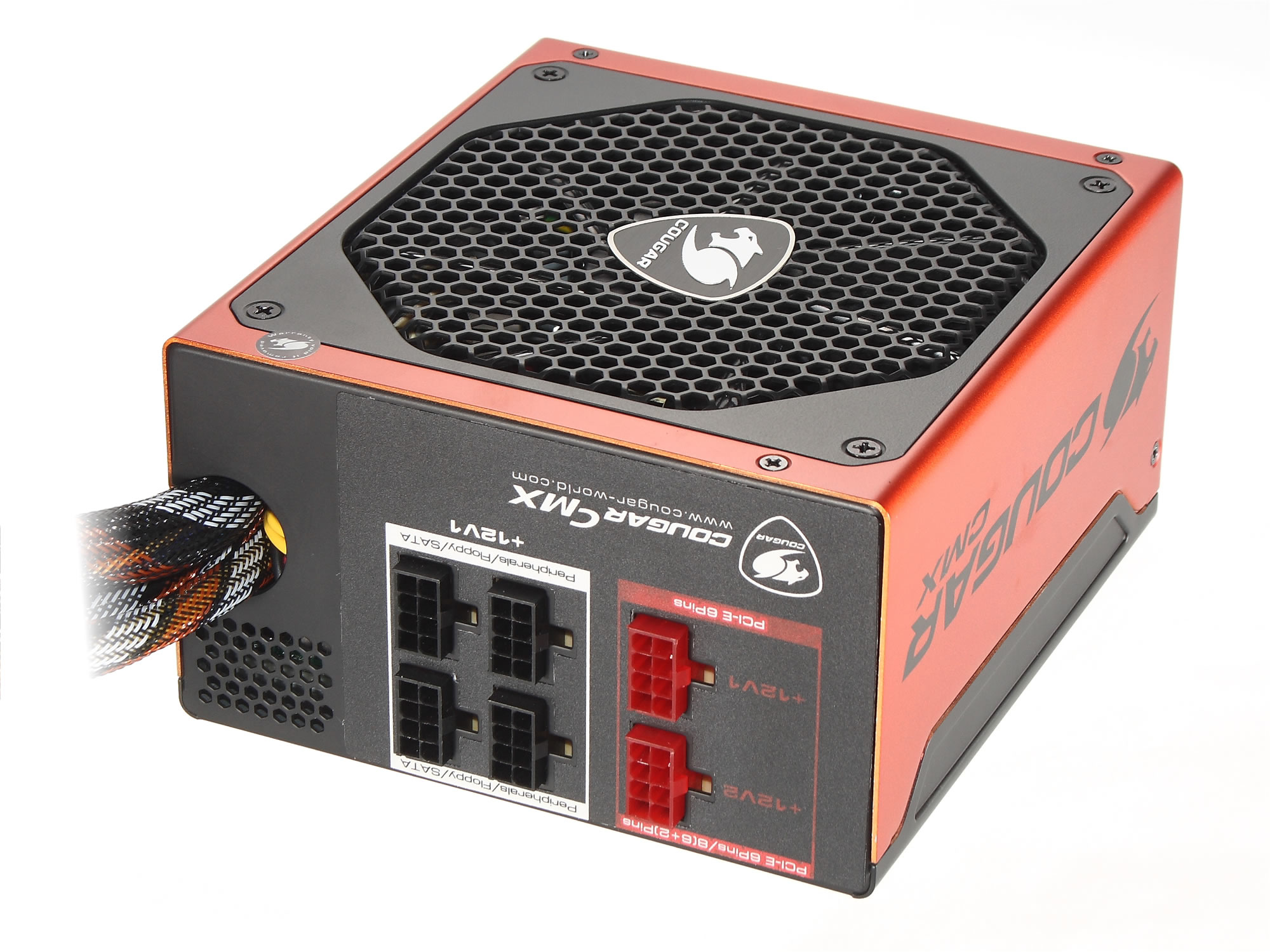

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | HDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| LED indicators | No |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB,CE, FCC, CCC, TUV, RUus, R63088 |
Certificates
| Specification | Value |
|---|---|
| Certification | 2009/125/EC (ErP) |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 180 x 86 mm |
| Power management | Yes |
| Power over Ethernet (PoE) | No |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
