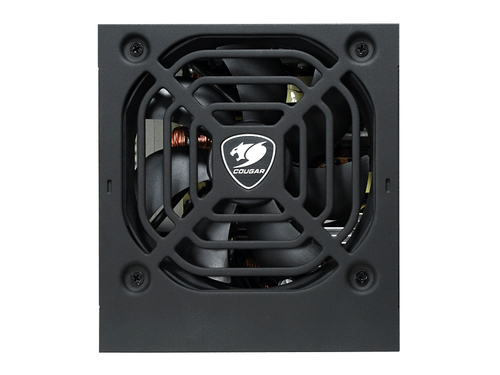

COUGAR CMX 1200
Model CMX 1200Part no. CMX1200V3
26 specifications
- ColourBlack, Orange
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Colour
- Black, Orange
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CMX 1200
- Part numbers
- CMX1200V3, 31TG120.0008
- Also known as
- COUGAR CMX 1200 power supply unit 1200 W 20+4 pin ATX Black, Orange
Specifications
26 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 8 A |
| Maximum input current (@220V) | 15 A |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 1176 W |
| Combined power (+5V) | 160 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 60 A |
| Max output current (+12V2) | 60 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 4 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Orange |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
