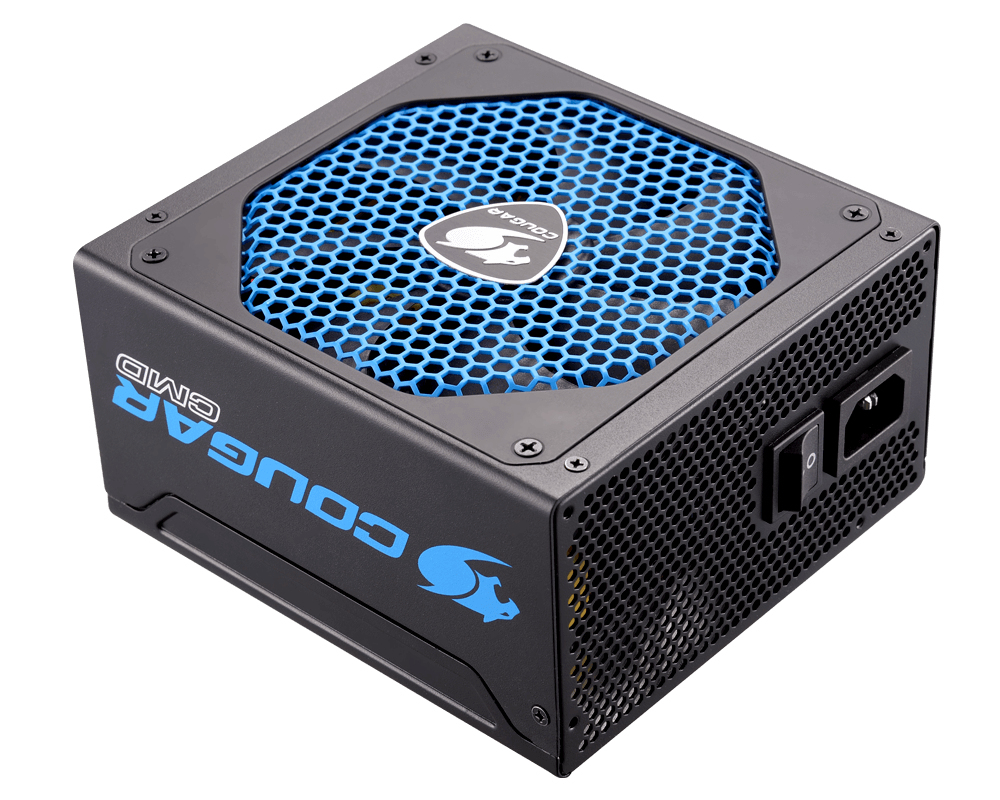

COUGAR CMD 500
Model CMD 500Part no. CS-CMD500
33 specifications
- ColourBlack, Blue
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Sustainability certificatesENERGY STAR
Overview
- Colour
- Black, Blue
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CMD 500
- Part number
- CS-CMD500
- Also known as
- COUGAR CMD 500 power supply unit 500 W 20+4 pin ATX Black, Blue
Specifications
33 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 - 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 480 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |

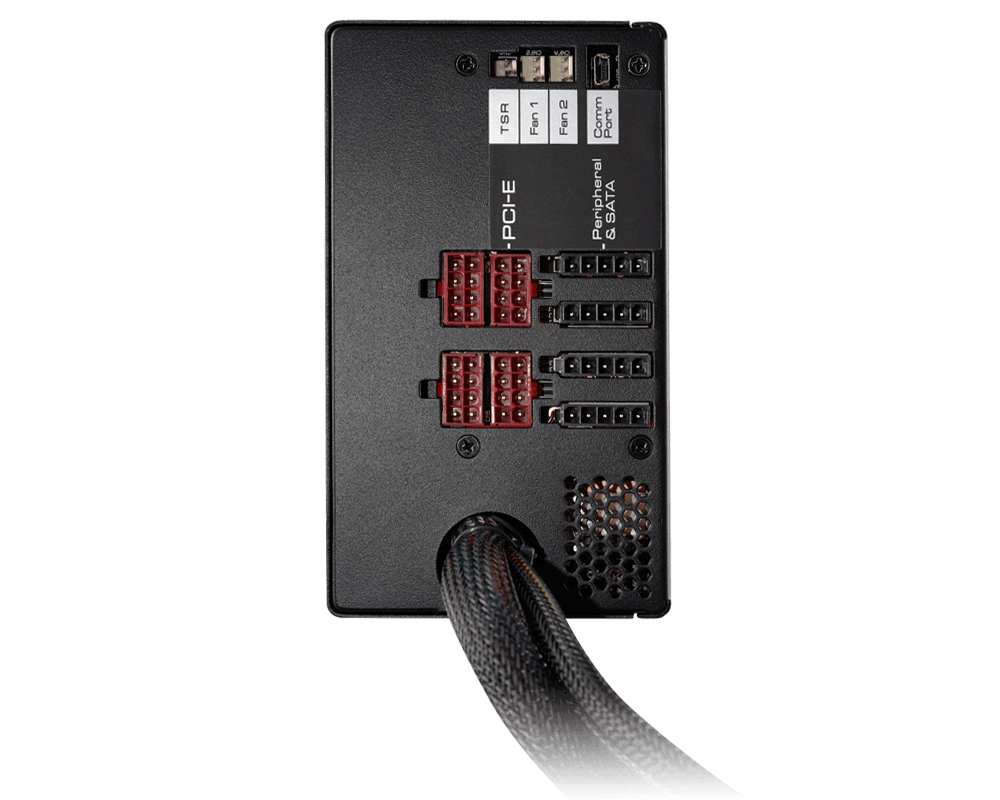

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power connectors (8-pin) | 1 |
| PCI Express connector | Yes |

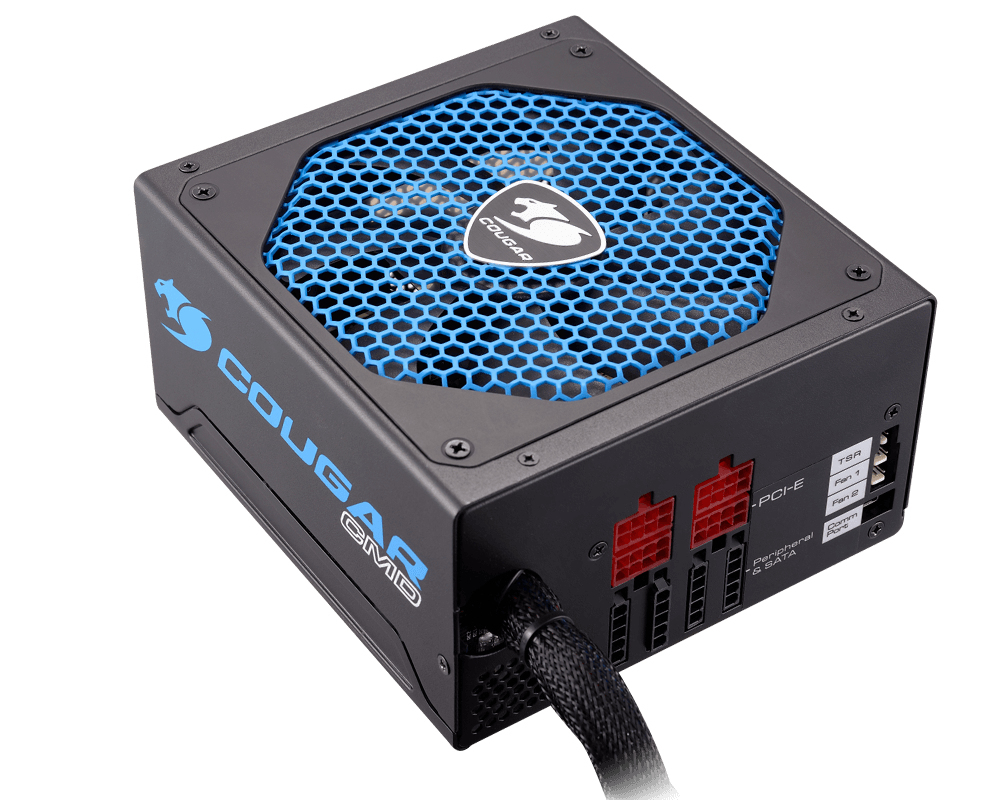

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| Number of fans | 1 fan(s) |

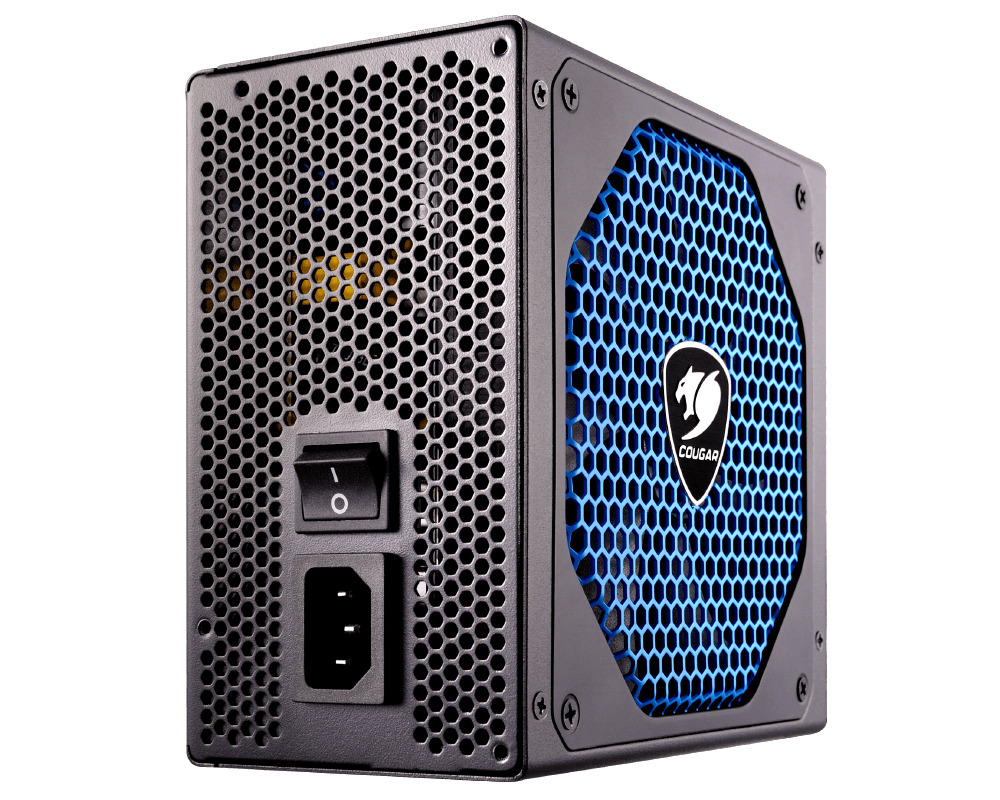

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Case colour | Black |
| Number of SATA connectors | 5 |
| PCI Express slots quantity | 2 |
