Power Supply ATLAS
750W ATX3.1 / 80 Plus Bronze
Model CGRVG-750Part no. 31AA075001P01EAN 4711649770198
47 specifications
- Weight1.94 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.94 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CGRVG-750
- Part number
- 31AA075001P01
- EAN / UPC
- 4711649770198
- Also known as
- COUGAR Power Supply ATLAS 750W ATX3.1 / 80 Plus Bronze
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 140 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 140 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |

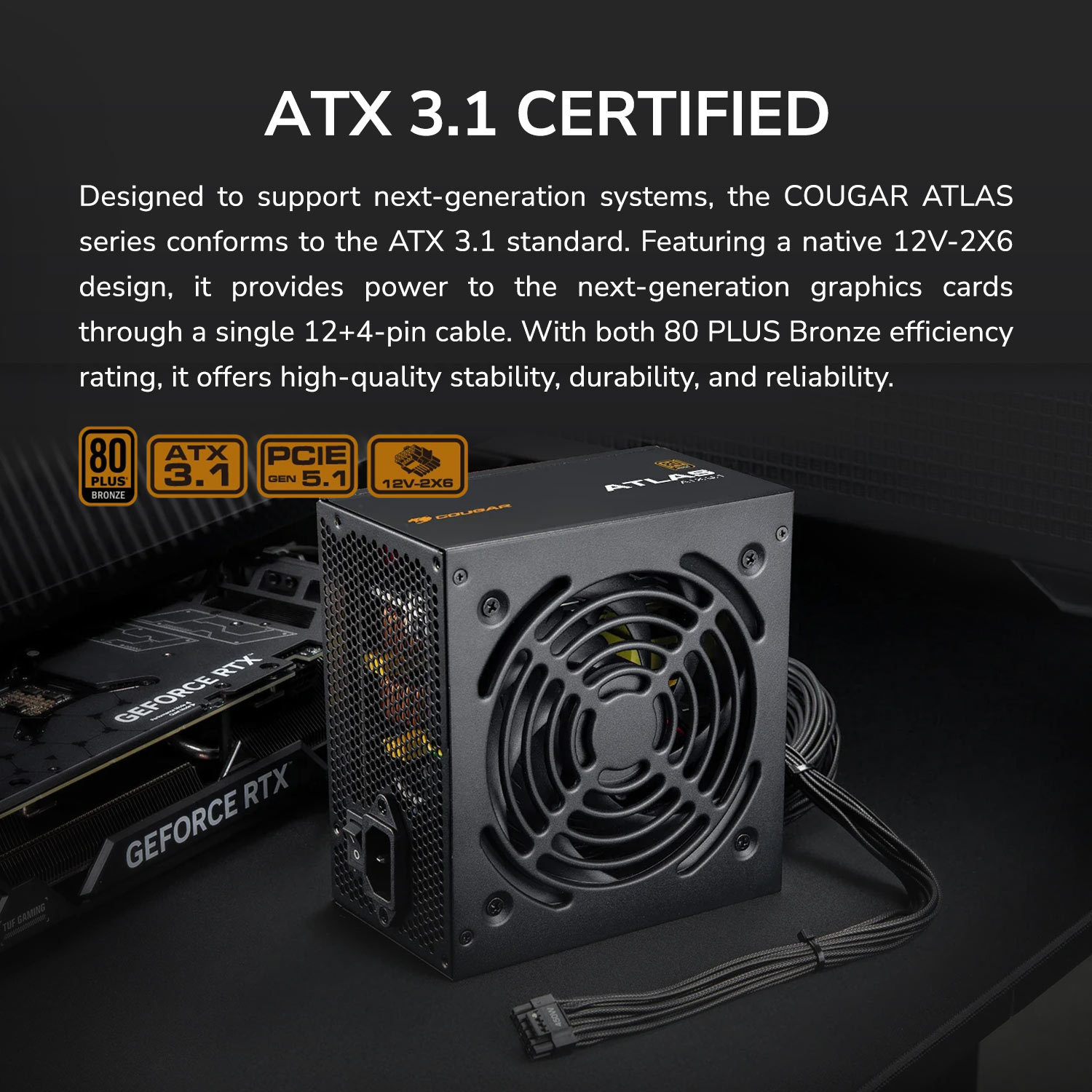

| ATX version | 3.1 |
| Bearing technology | Rifle |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.94 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 187 mm |
| Package depth | 158 mm |
| Package height | 165 mm |
| Package weight | 2.23 kg |
