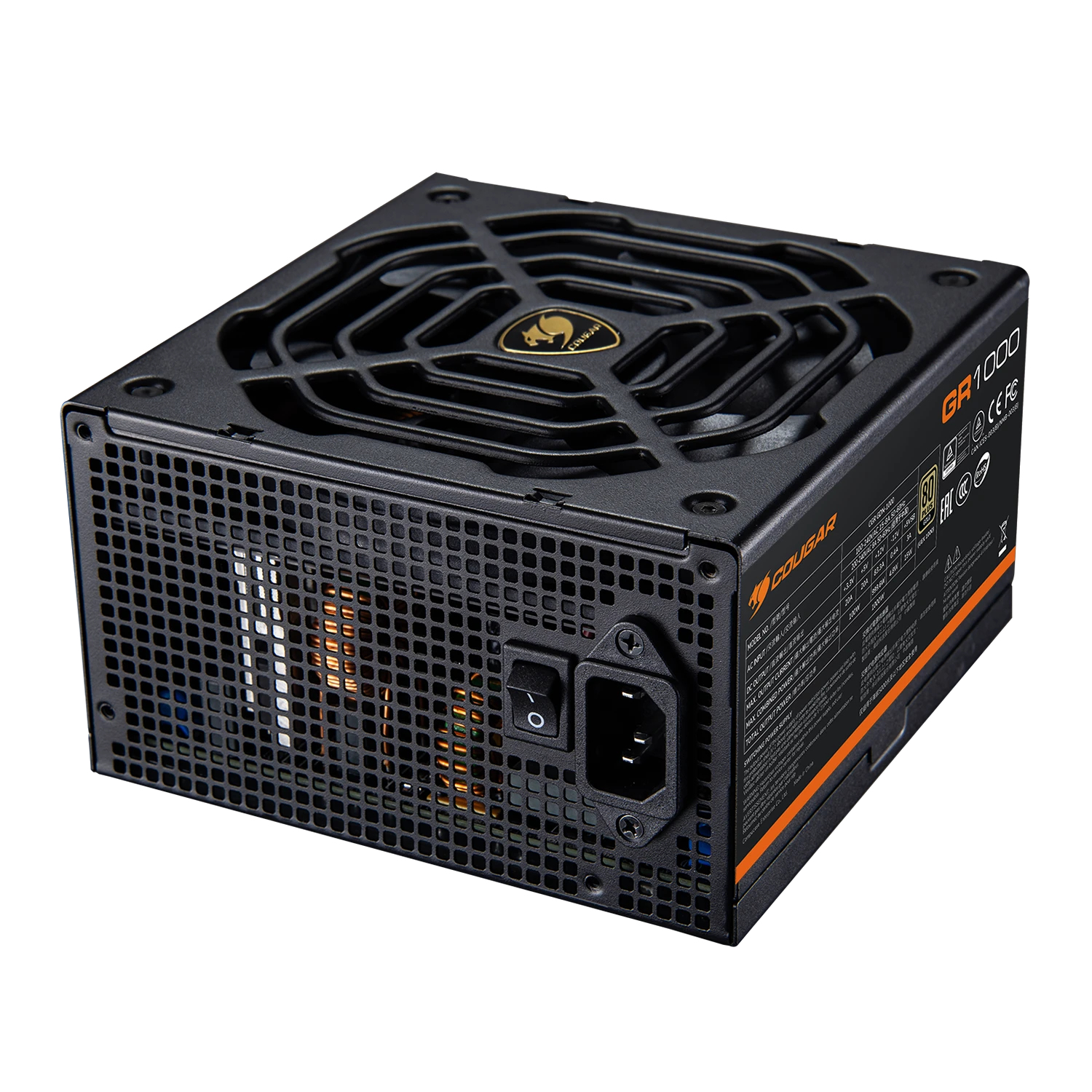

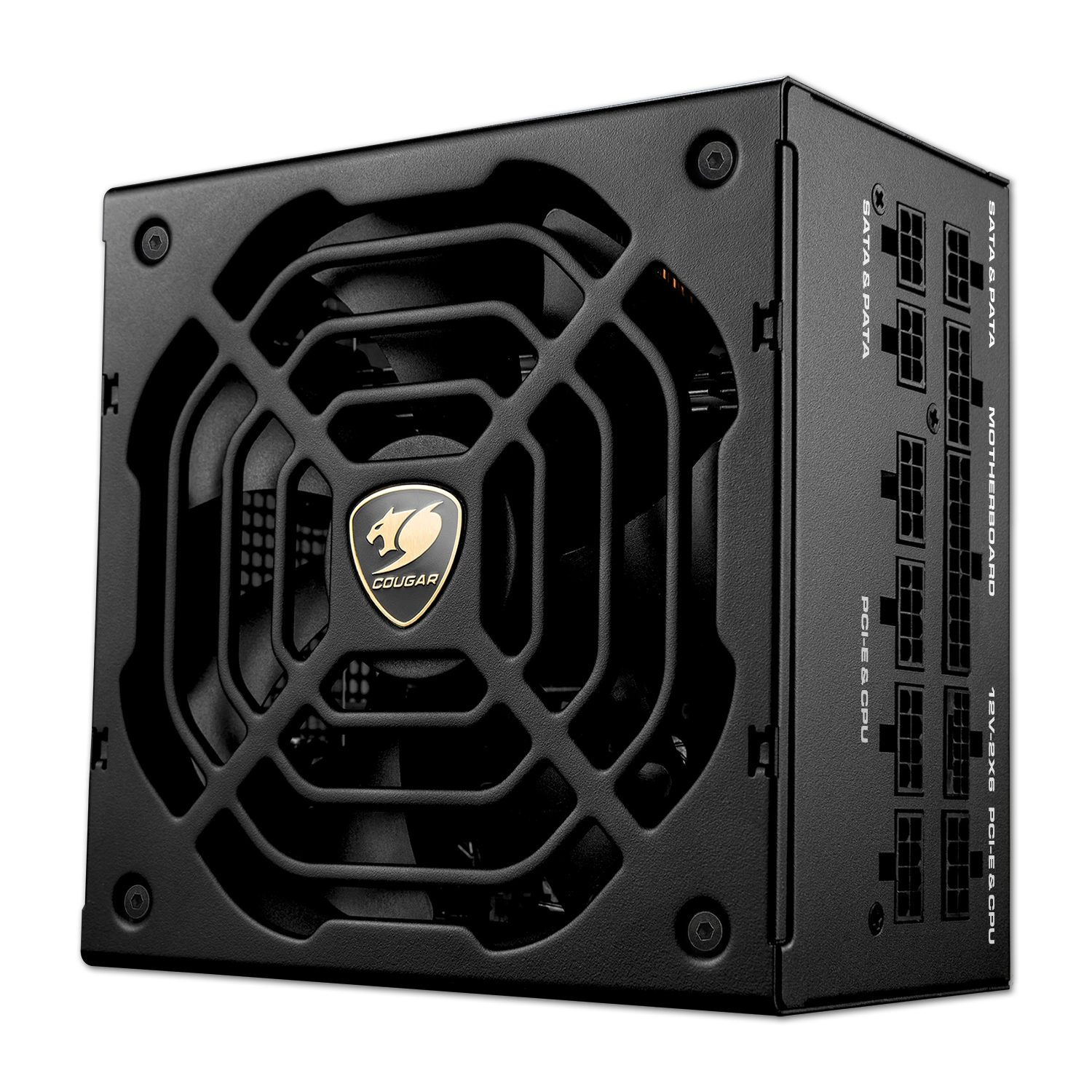

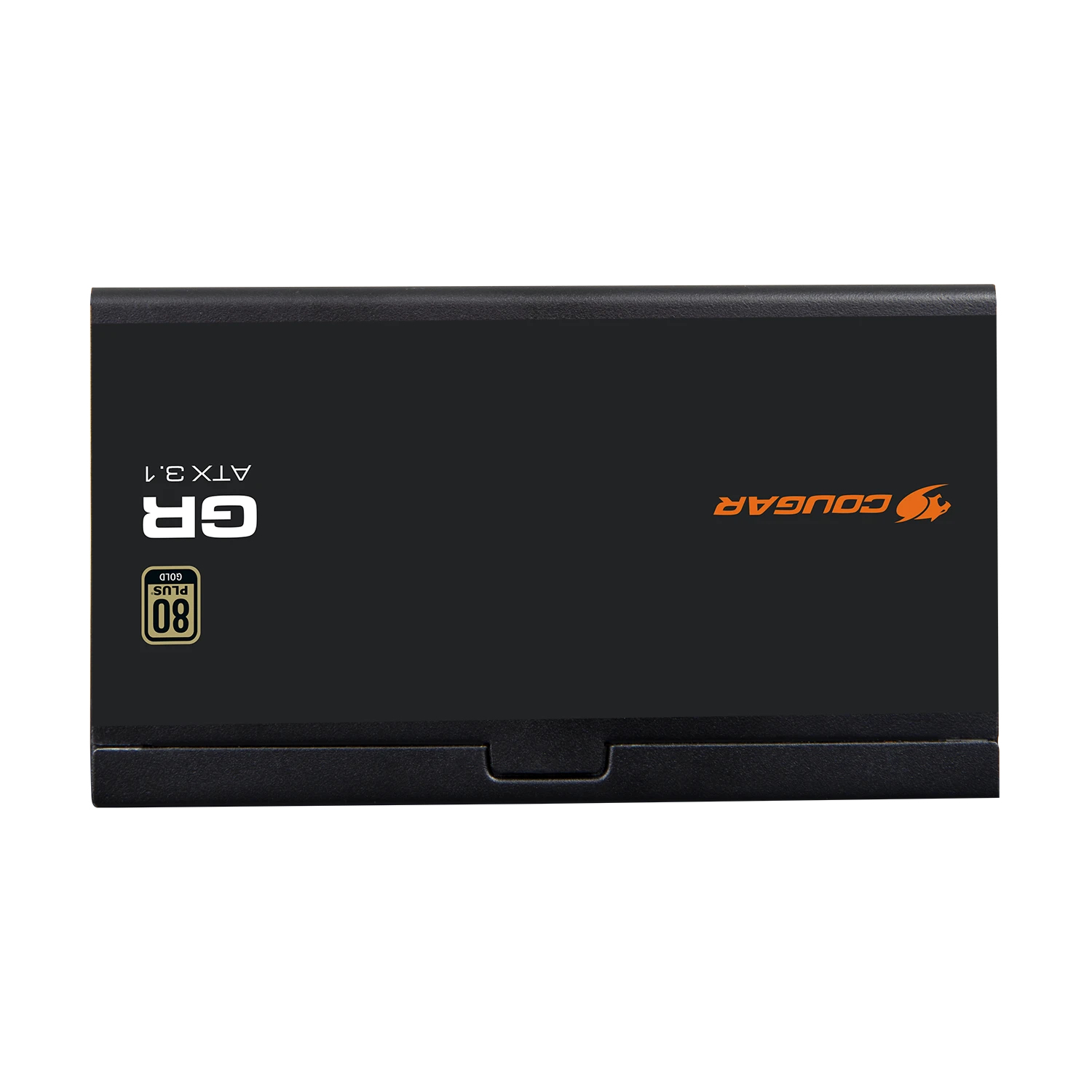

Power Supply GR
1000W ATX3.1/PCIE 5.1 / 80 Plus Gold
Model CGRGDN-1000Part no. 31GR100001P01EAN 4710483779978
47 specifications
- Weight2.25 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.25 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CGRGDN-1000
- Part number
- 31GR100001P01
- EAN / UPC
- 4710483779978
- Also known as
- COUGAR Power Supply GR 1000W ATX3.1/PCIE 5.1 / 80 Plus Gold
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15-8 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage |

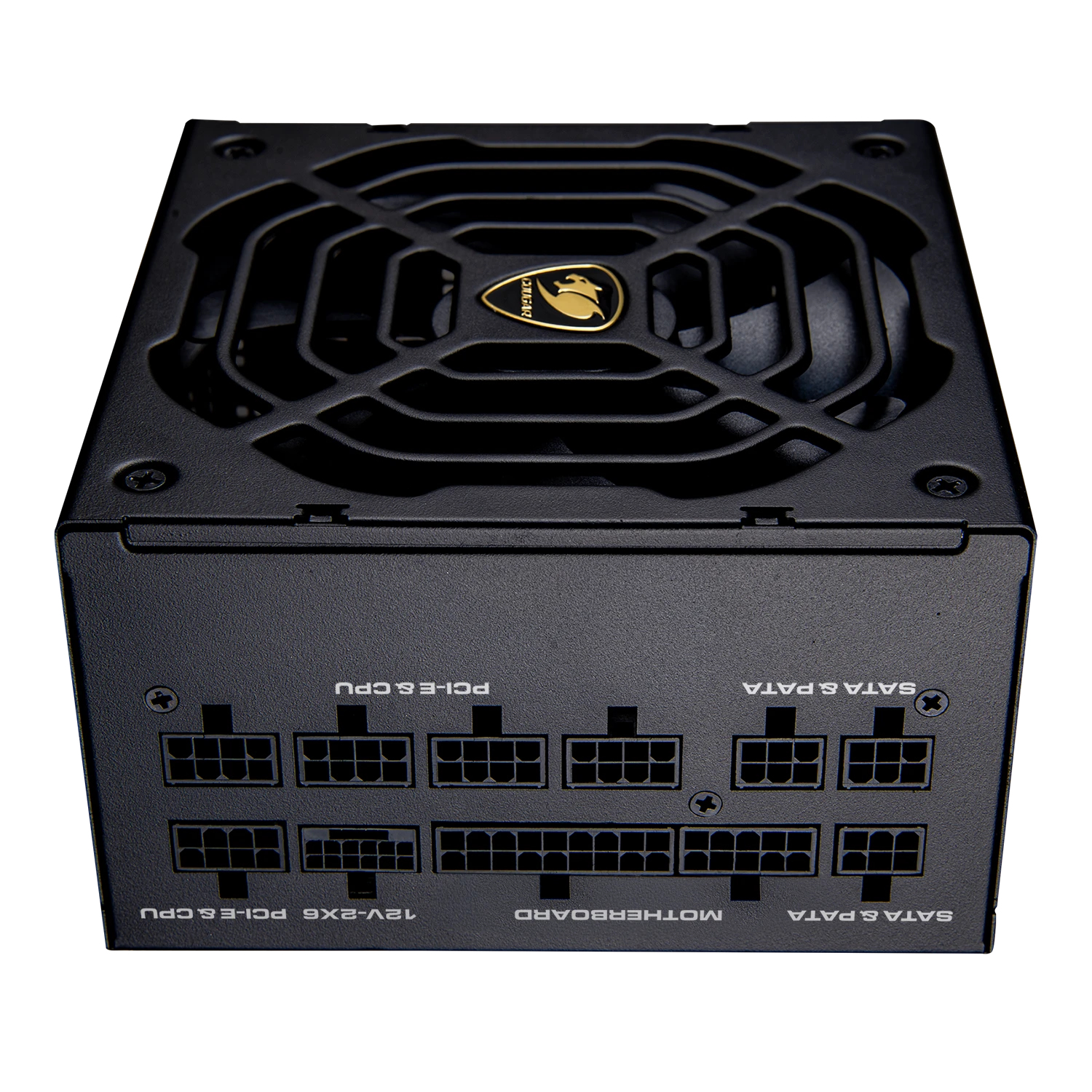

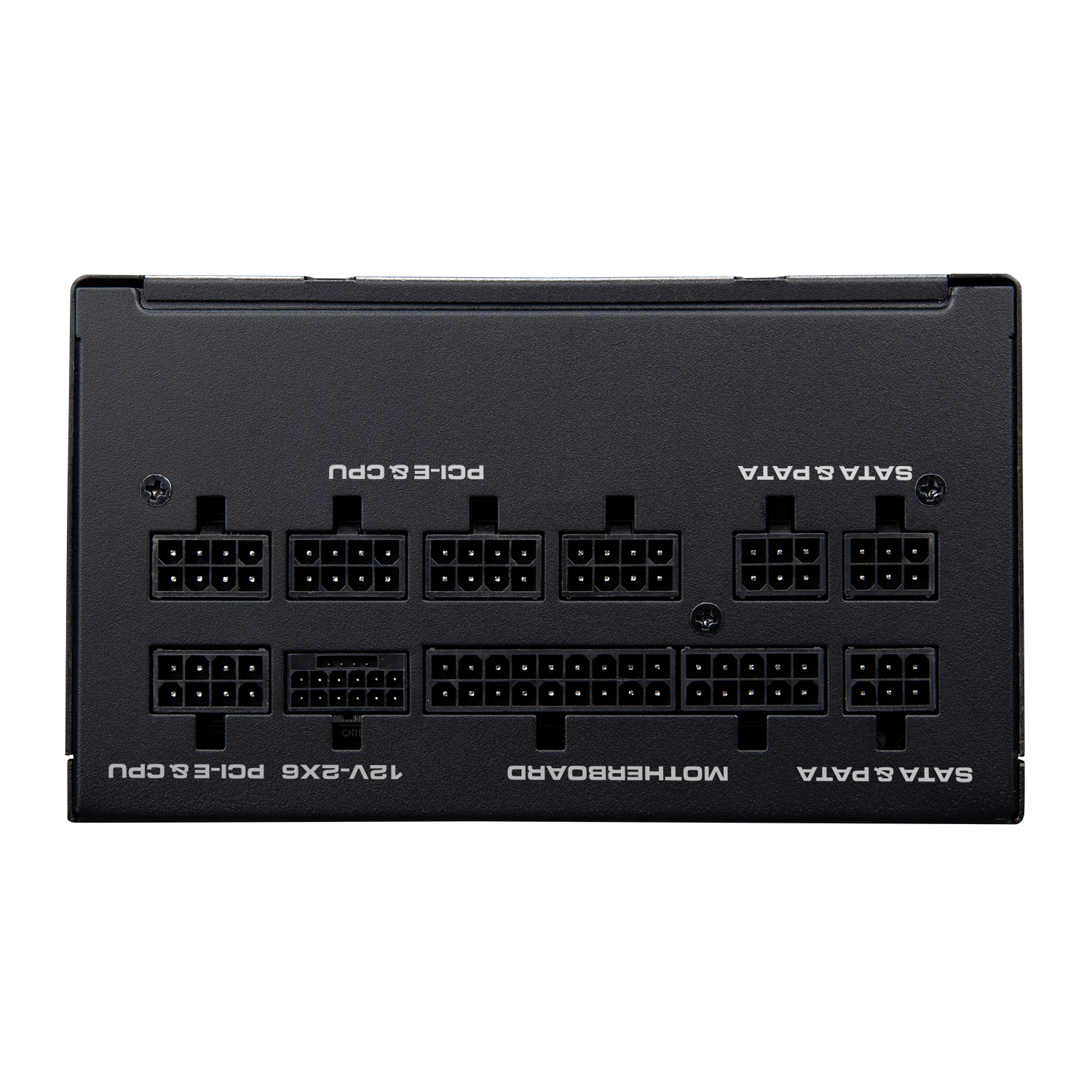

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 150,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

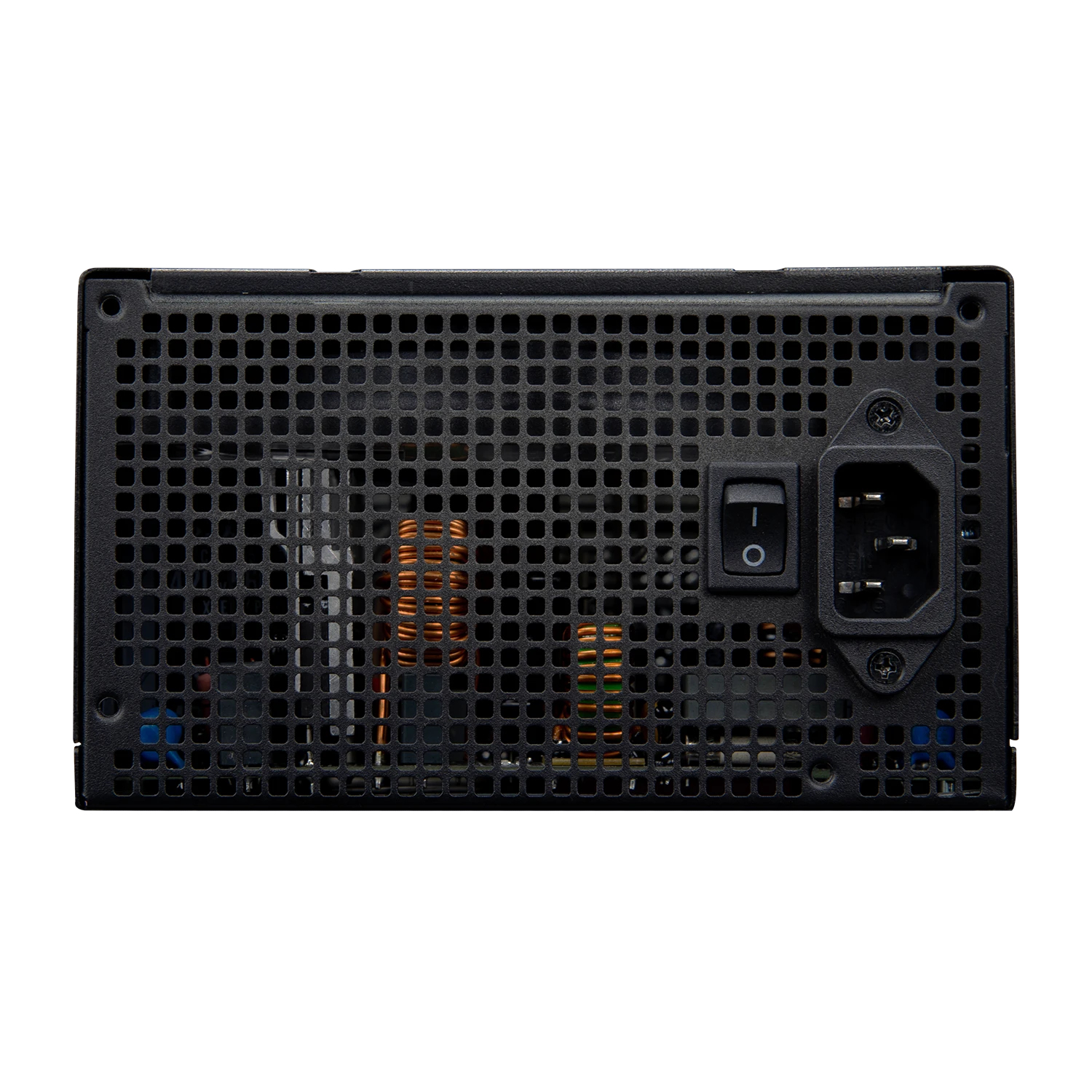

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, EAC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.25 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 316 mm |
| Package depth | 220 mm |
| Package height | 107 mm |
| Package weight | 3.45 kg |
