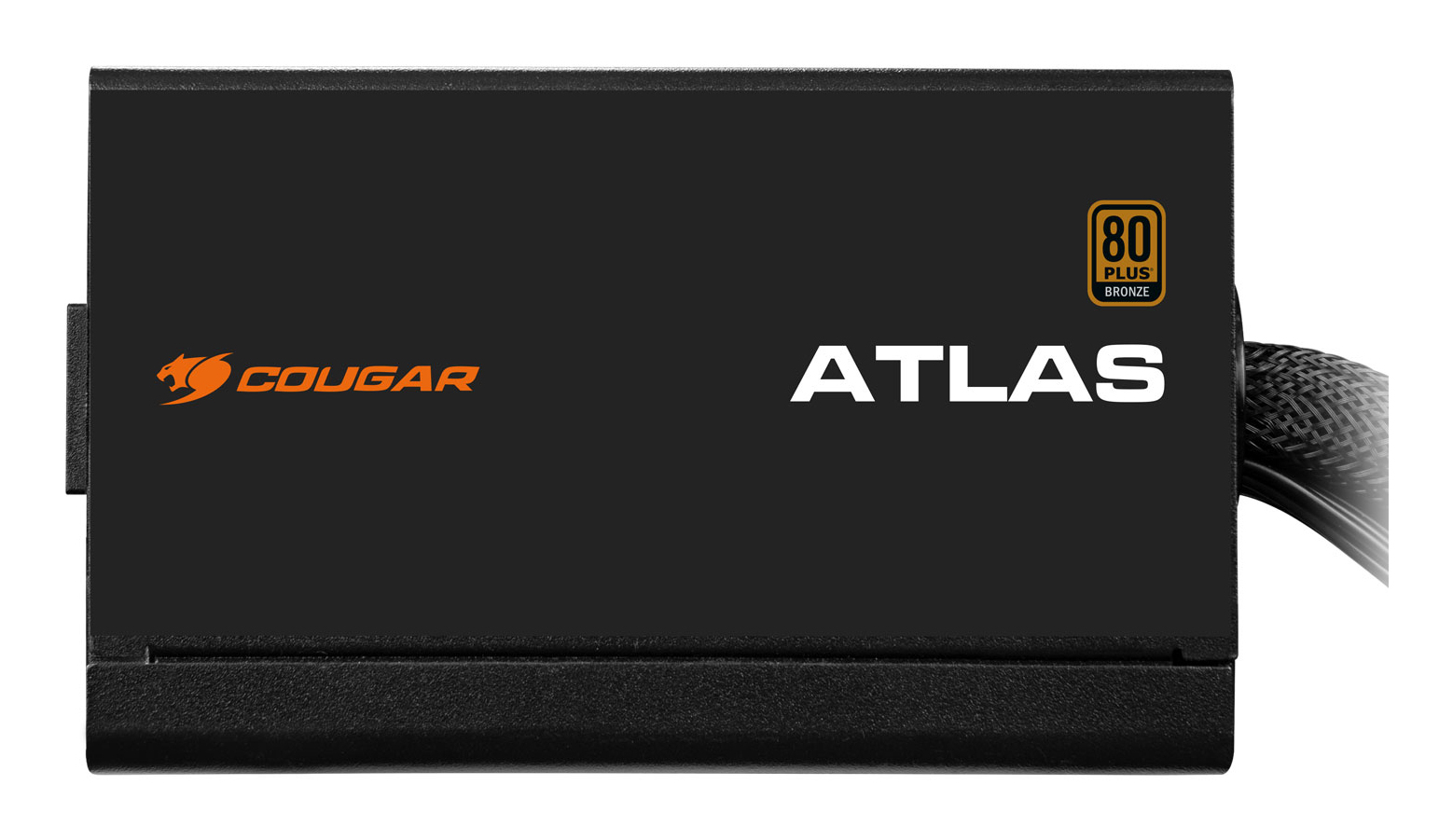

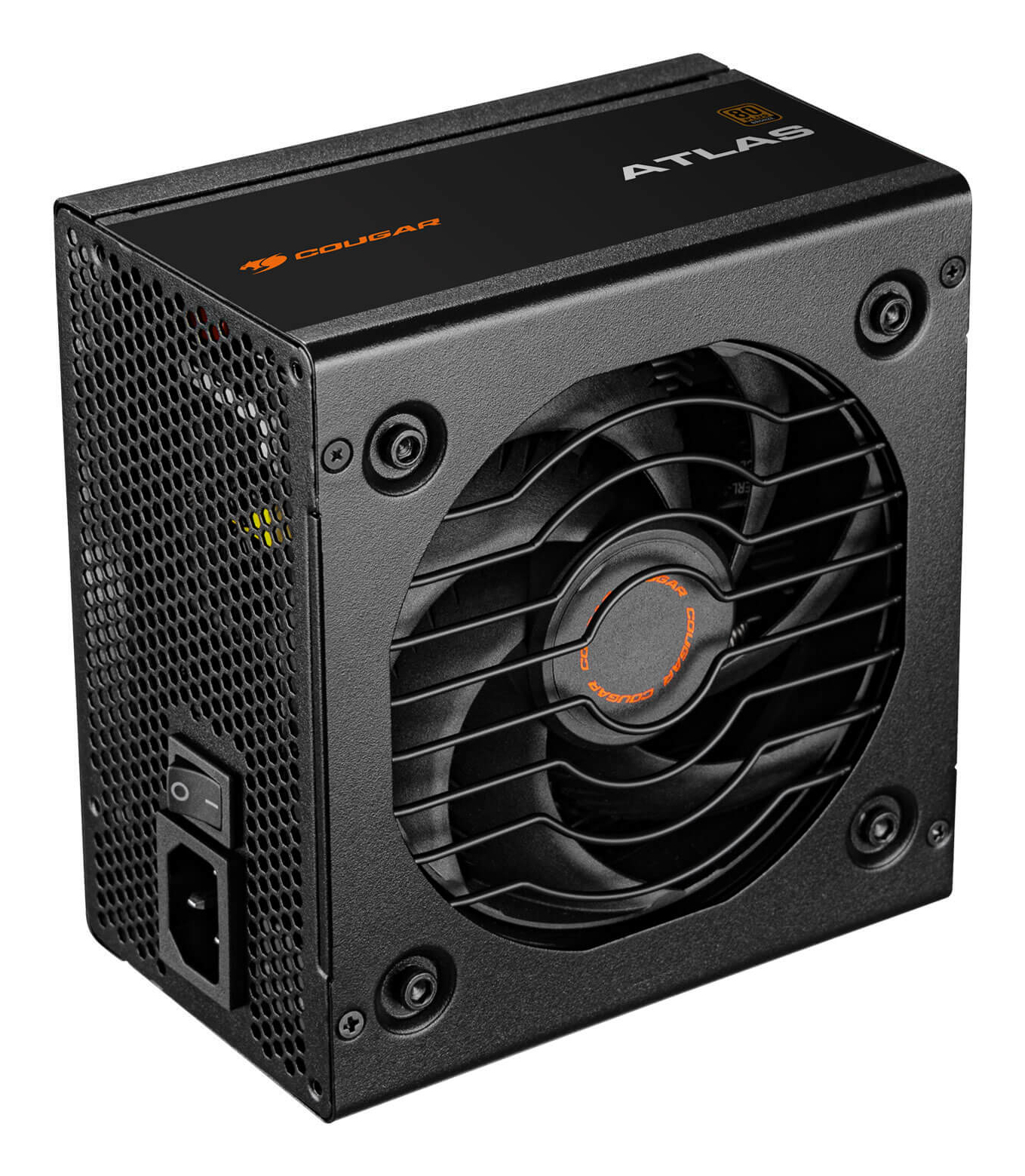

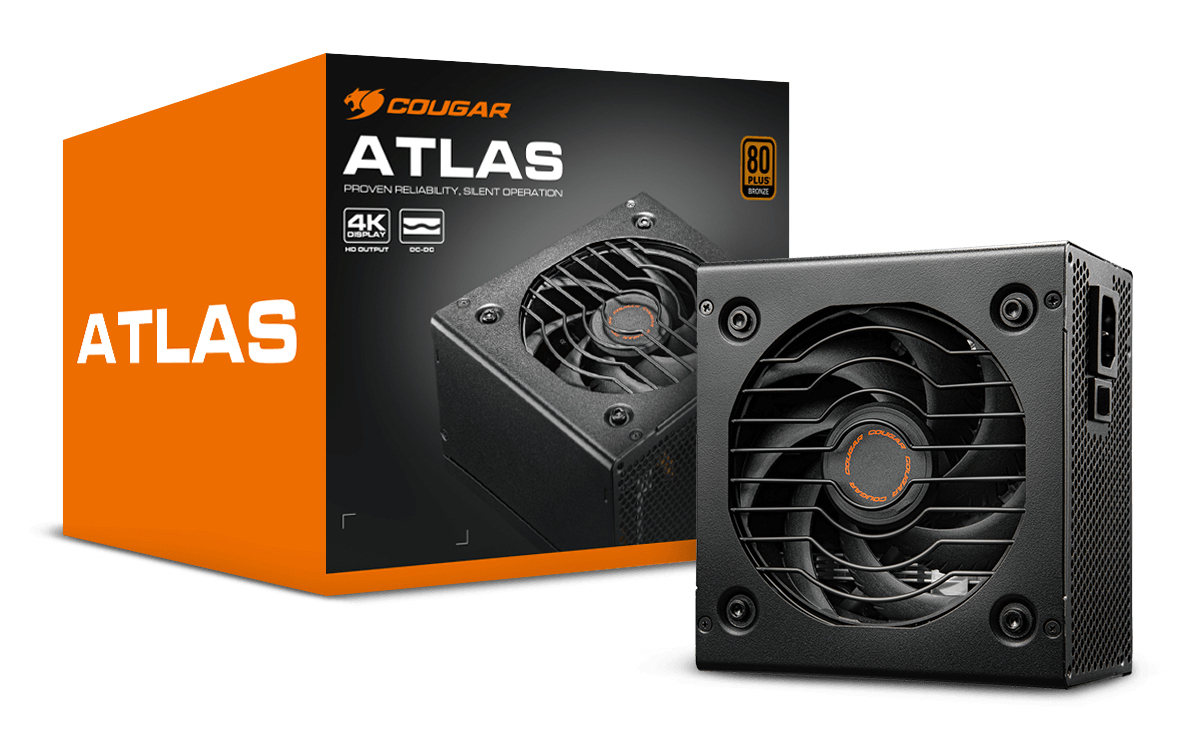

Power Supply ATLAS
650W ATX / 80 Plus Bronze
Model CGRBD-650Part no. 31AL065001P01EAN 192554005263
45 specifications
- Weight1.69 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Weight
- 1.69 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CGRBD-650
- Part number
- 31AL065001P01
- EAN / UPC
- 192554005263, 4541995037320, 4710483774874
- Also known as
- COUGAR Power Supply ATLAS 650W ATX / 80 Plus Bronze
Specifications
45 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

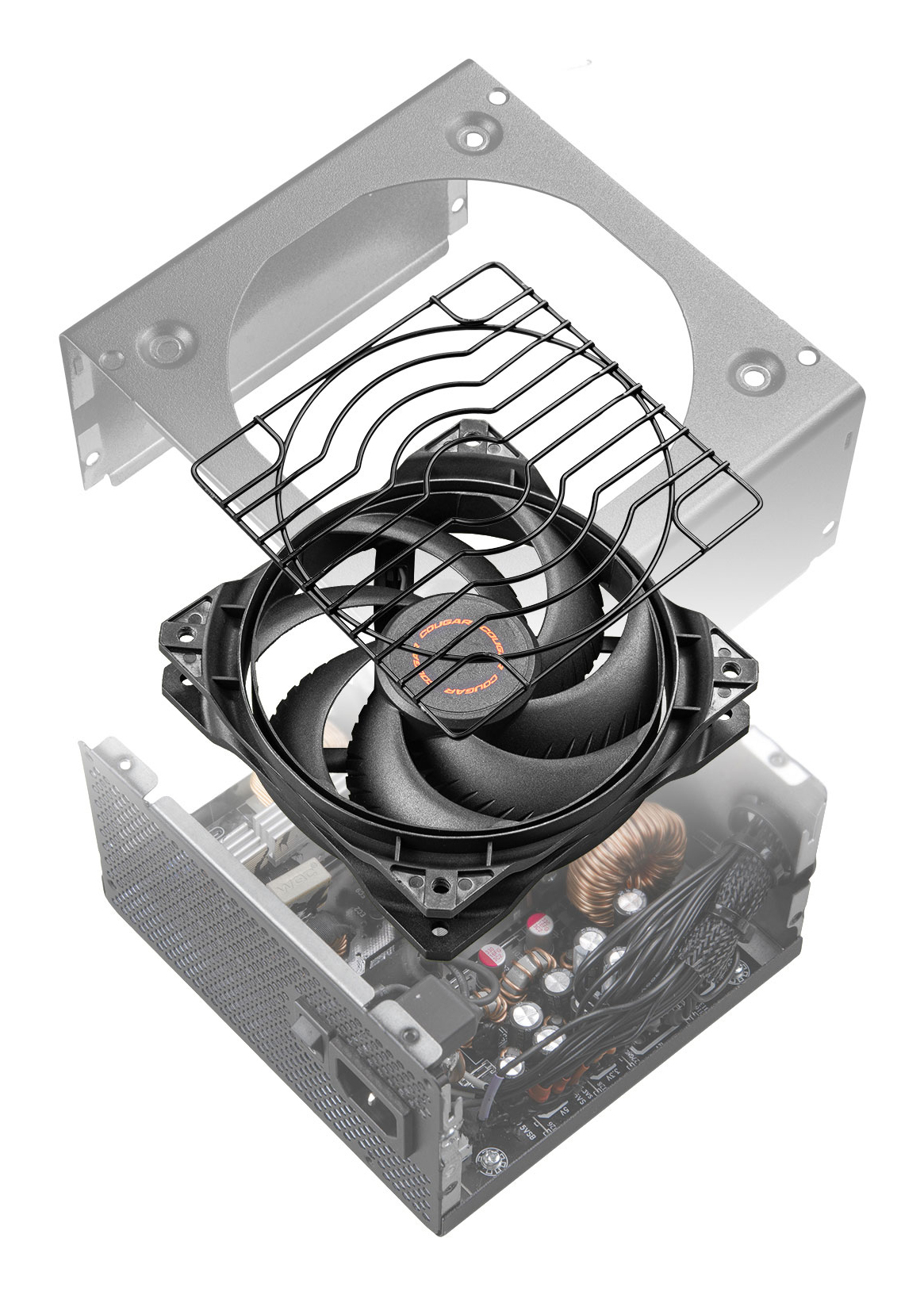

| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

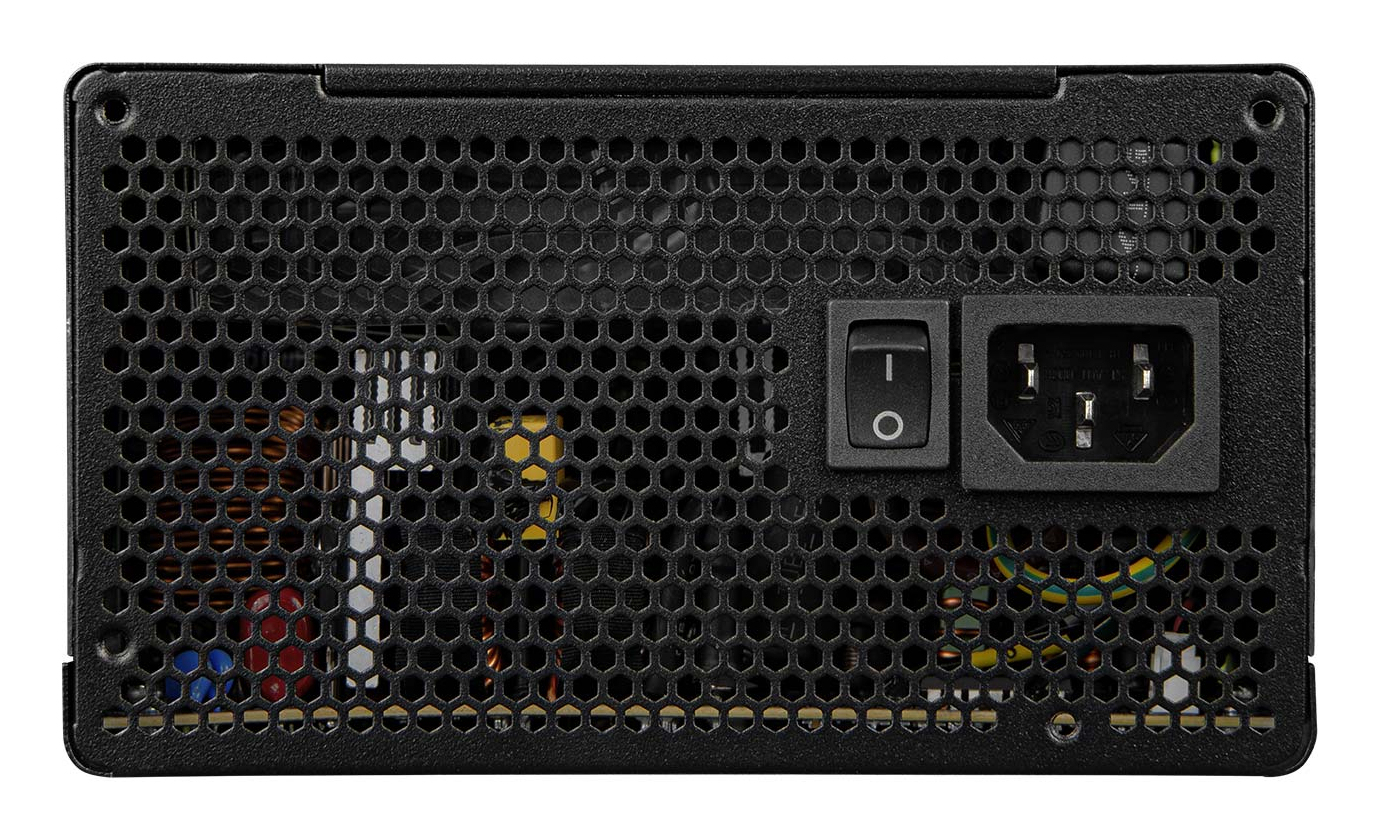

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.69 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 158 mm |
| Package depth | 187 mm |
| Package height | 165 mm |
| Package weight | 1.99 kg |
| Package type | Box |
