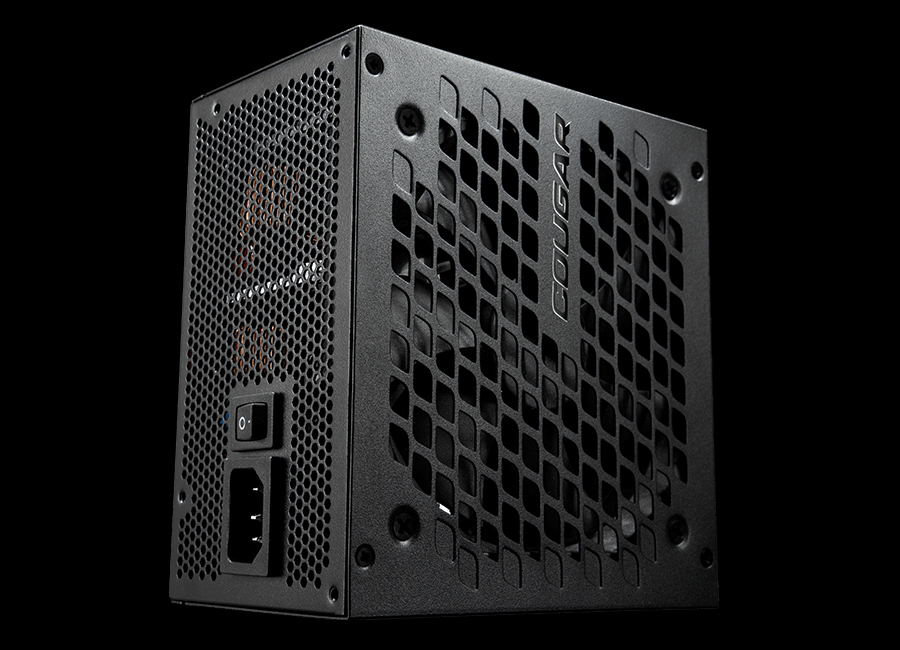

CGR GC-650
Model CGR GC-650Part no. 31GC065.0001PEAN 192554003030
39 specifications
- Weight1.45 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.45 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- CGR GC-650
- Part number
- 31GC065.0001P
- EAN / UPC
- 192554003030, 4710483771941
- Also known as
- COUGAR CGR GC-650 power supply unit 650 W 20+4 pin ATX Black
Specifications
39 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6.3 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 510 mm |
| Package depth | 263 mm |
| Package height | 231 mm |
| Package weight | 2.25 kg |
| Package type | Box |
