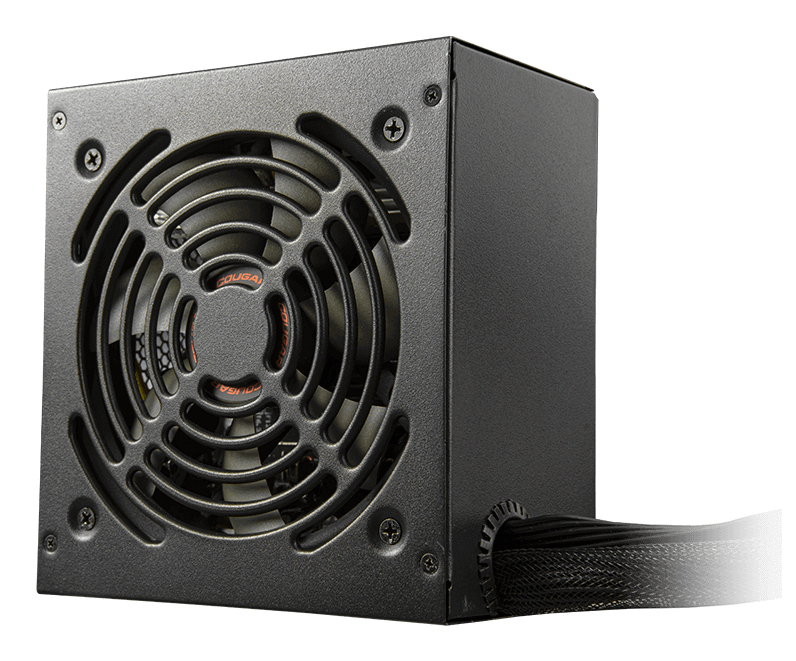

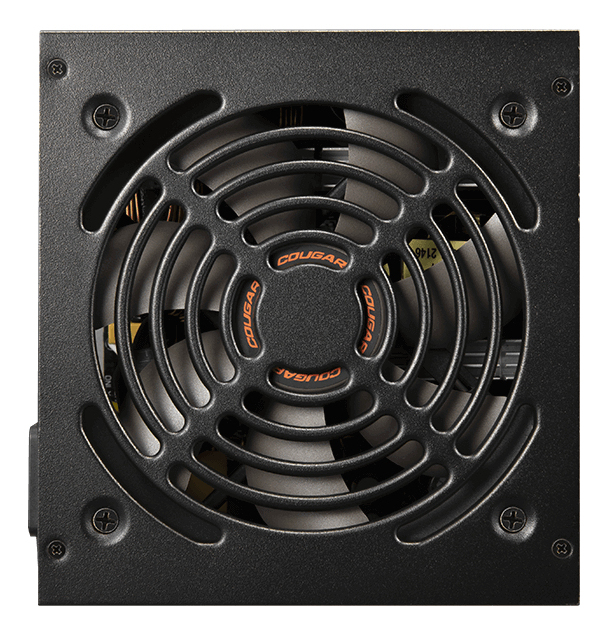

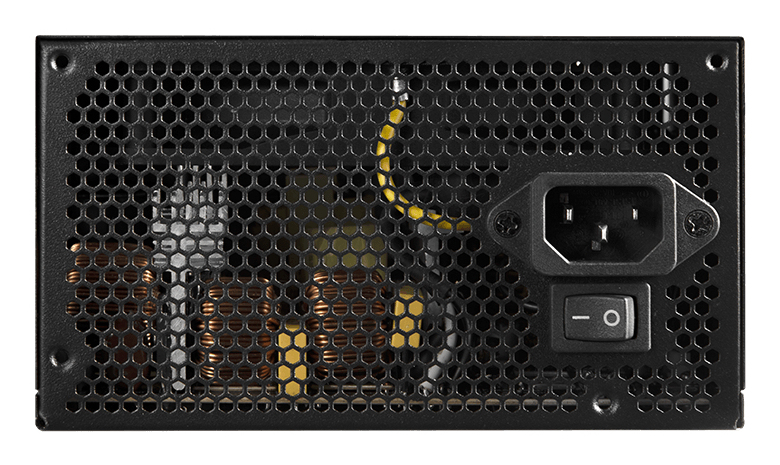

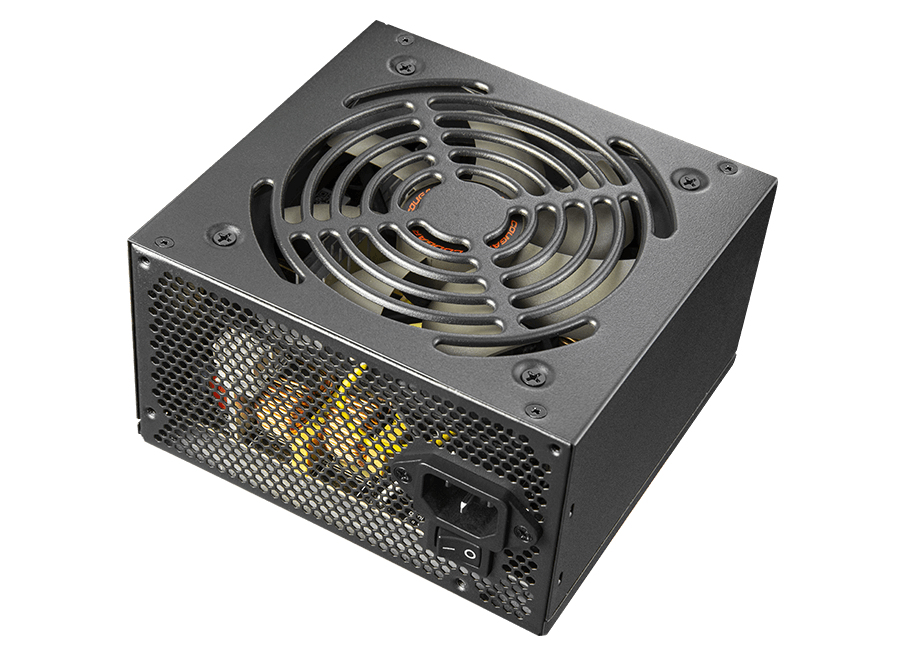

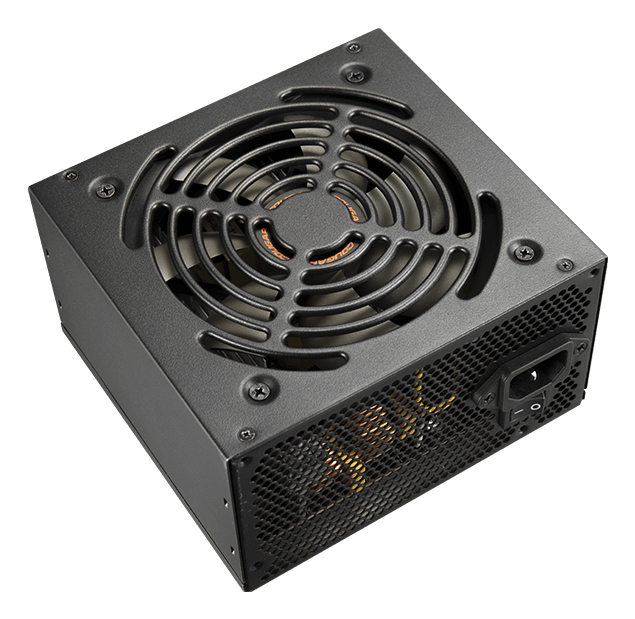

ATLAS 750
Model ATLAS 750Part no. 31AT075008P01
23 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- ATLAS 750
- Part number
- 31AT075008P01
- Also known as
- COUGAR ATLAS 750 power supply unit 750 W 20+4 pin ATX Black
Specifications
23 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Combined power (+3.3V) | 140 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 140 W |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
