COUGAR A450 power supply unit
450 W ATX Black
Model A450Part no. A450W/REAN 4710918402730
20 specifications
- ColourBlack
- Total power450 W
- Number of SATA power connectors6
- Power supply unit (PSU) form factorATX
Overview
- Colour
- Black
- Total power
- 450 W
- Number of SATA power connectors
- 6
- Power supply unit (PSU) form factor
- ATX
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- A450
- Part numbers
- A450W/R, A450/R
- EAN / UPC
- 4710918402730, 4710918407063
- Also known as
- COUGAR A450 power supply unit 450 W ATX Black
Specifications
20 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Efficiency | 89% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

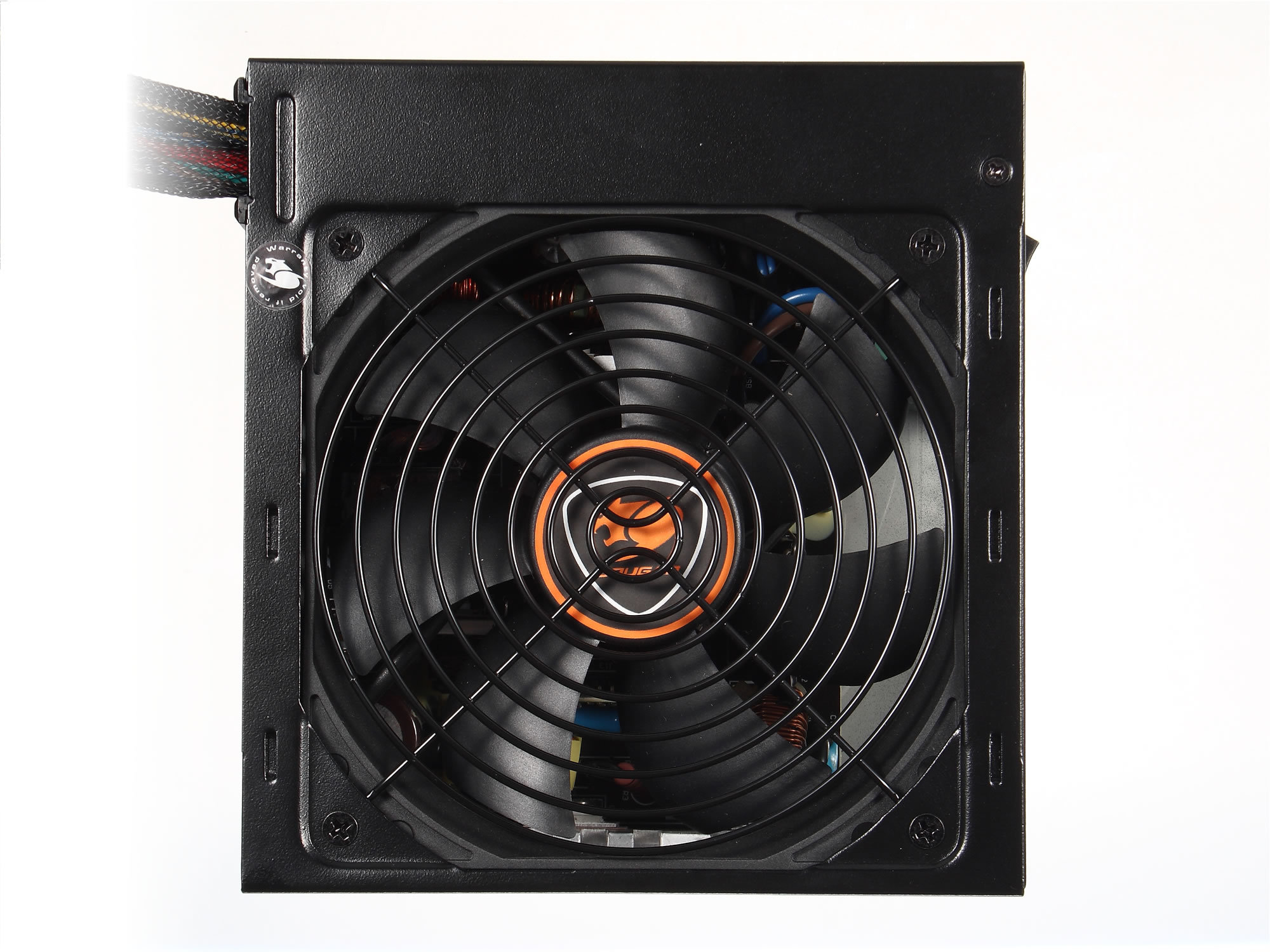

| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE, FCC |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
| Output voltage note | +3.3V, +5V, +12V1, +12V2, -12V, +5Vsb |
What people say
Reviews & ratings
COUGAR A450 power supply unit
No reviews yet
Be the first to tell others how COUGAR A450 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare COUGAR A450 power supply unit
All power supply unit comparisons- COUGAR A450 power supply unit vsCOUGAR PowerX power supply unit 550, 480 Black, OrangeCompare specs
- COUGAR A450 power supply unit vsCOUGAR SX700 power supply unit 700, 684 Black, Orange, SilverCompare specs
- COUGAR A450 power supply unit vsCOUGAR A350 power supply unitCompare specs

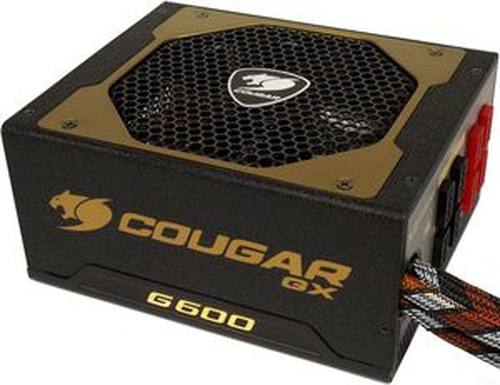

- COUGAR A450 power supply unit vsCOUGAR G 600Compare specs
