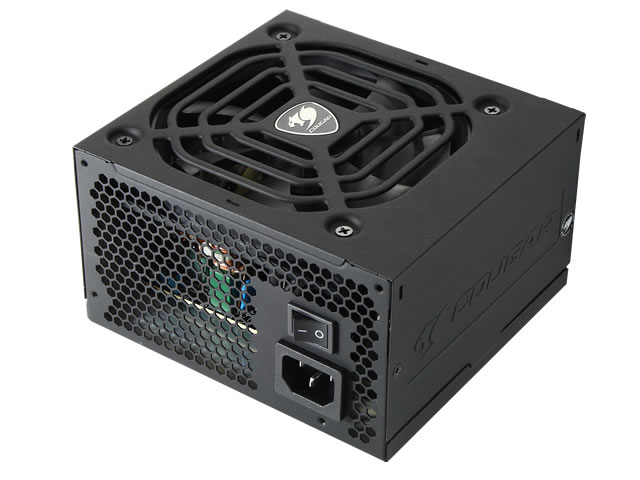

COUGAR A400 power supply unit
400 W 20+4 pin ATX ATX Black
Model A400Part no. A400/REAN 4710918407056
41 specifications
- Noise20 dB
- ColourBlack
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Sustainability certificatesENERGY STAR
Overview
- Noise
- 20 dB
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Sustainability certificates
- ENERGY STAR
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- A400
- Part numbers
- A400/R, COUGAR A400W/R
- EAN / UPC
- 4710918407056
- Also known as
- COUGAR A400 power supply unit 400 W 20+4 pin ATX ATX Black
Specifications
41 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 384 W |
| Combined power (+5V) | 40 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 89% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 20 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1500 |
| Fan location | Top |
| LED indicators | No |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB,CE, FCC, CCC, TUV, RUus, R63088 |
Certificates
| Specification | Value |
|---|---|
| Certification | 2009/125/EC (ErP) |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 150 x 86 mm |
| Power management | Yes |
| Power over Ethernet (PoE) | No |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
