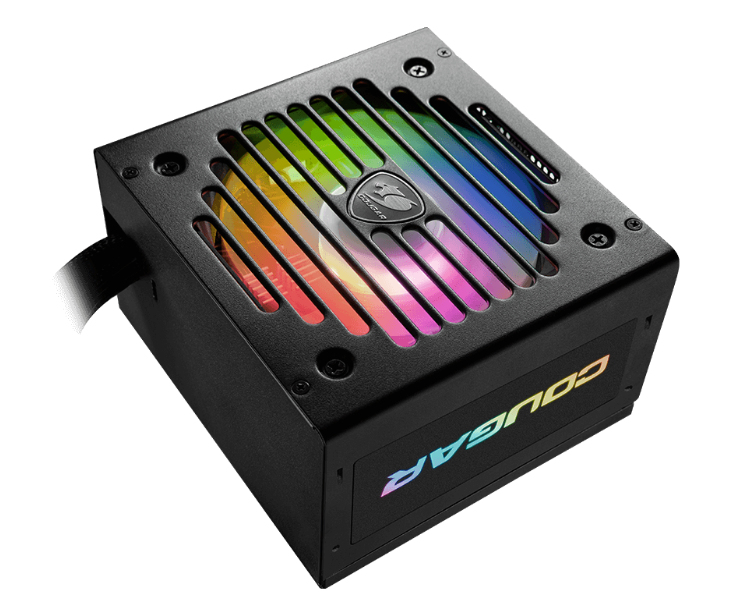

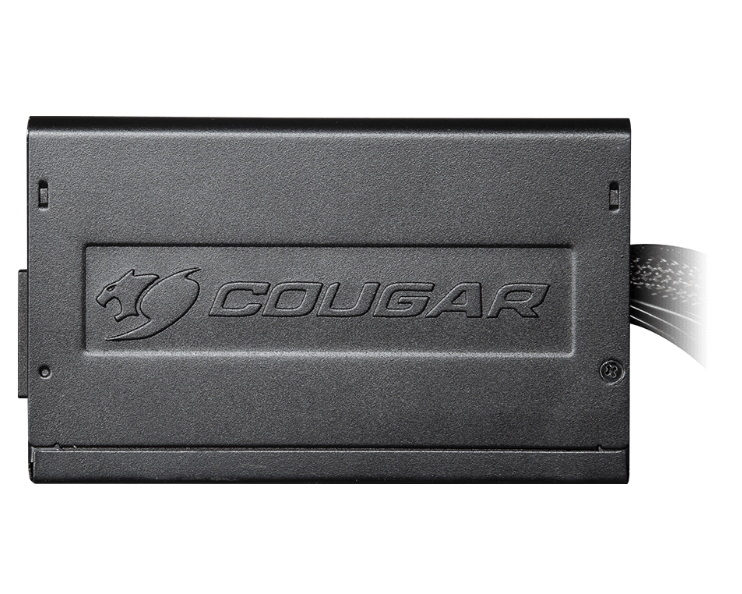

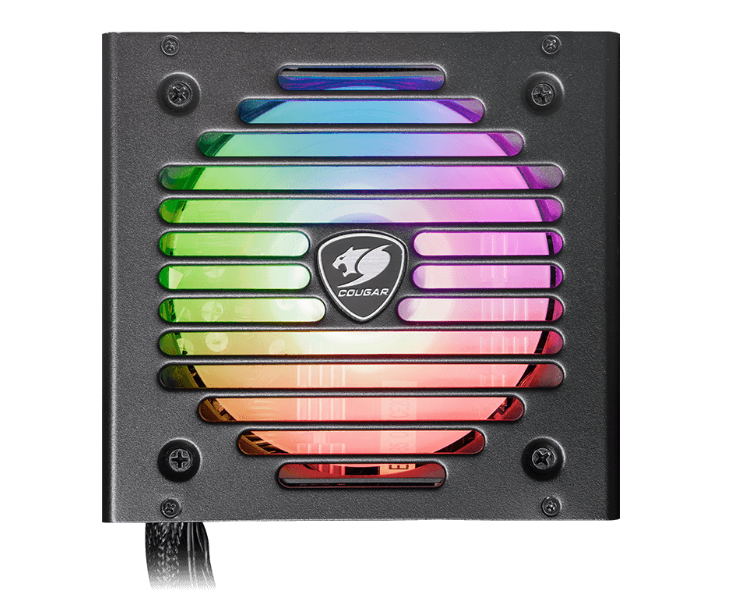

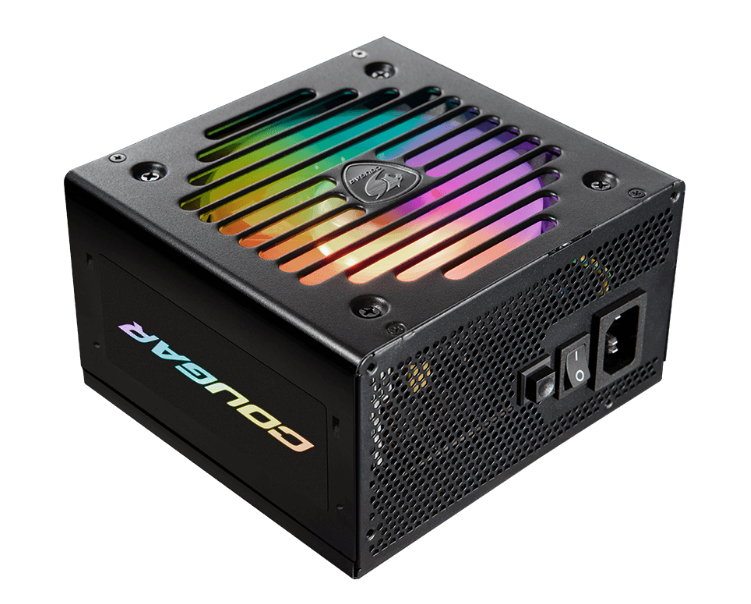

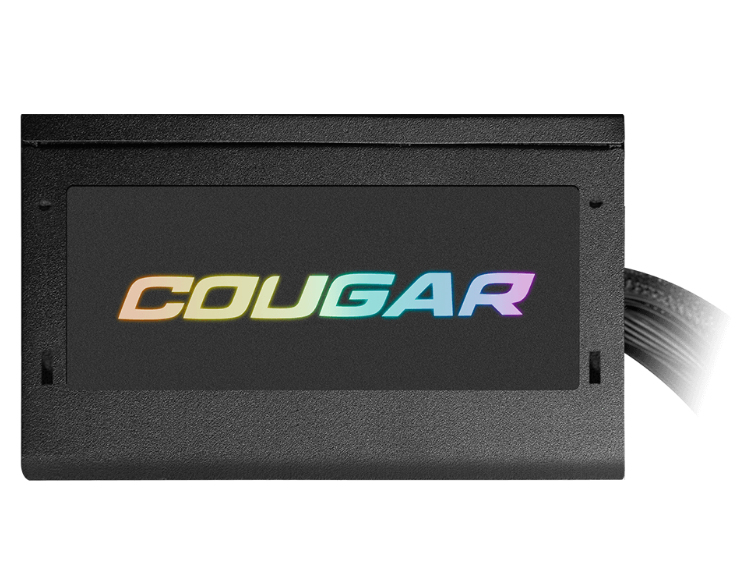

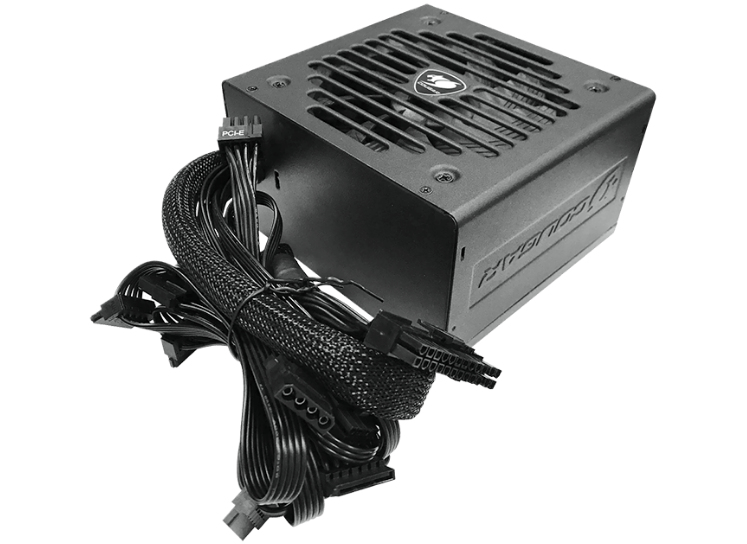

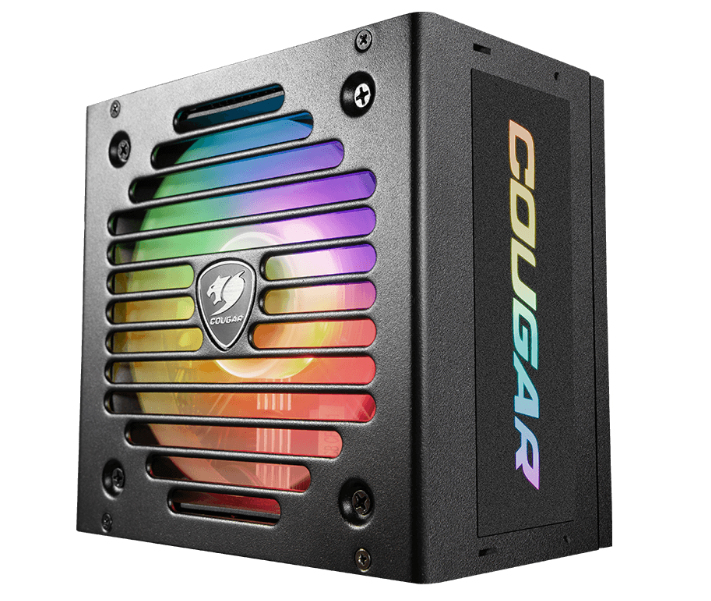

31VG065.0001P power supply unit
550 W 20+4 pin ATX ATX Black
Model 31VG065.0001PEAN 4710483772252
51 specifications
- Weight1.35 kg
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- 31VG065.0001P
- Part number
- 31VG065.0001P
- EAN / UPC
- 4710483772252
- Also known as
- COUGAR 31VG065.0001P power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
51 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| Peak power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Maximum input current (@110V) | 4 A |
| Maximum input current (@220V) | 8 A |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 504 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 99% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Silent mode | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 158 mm |
| Package depth | 187 mm |
| Package height | 165 mm |
| Package weight | 1.65 kg |
| Package type | Box |
