31TP065056H-01 power supply unit
650 W 20+4 pin ATX ATX Black
Model 31TP065056H-01EAN 4710483771521
45 specifications
- Noise0 dB
- Weight1.55 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 0 dB
- Weight
- 1.55 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- 31TP065056H-01
- Part number
- 31TP065056H-01
- EAN / UPC
- 4710483771521
- Also known as
- COUGAR 31TP065056H-01 power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
45 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | 5 A |
| Maximum input current (@220V) | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

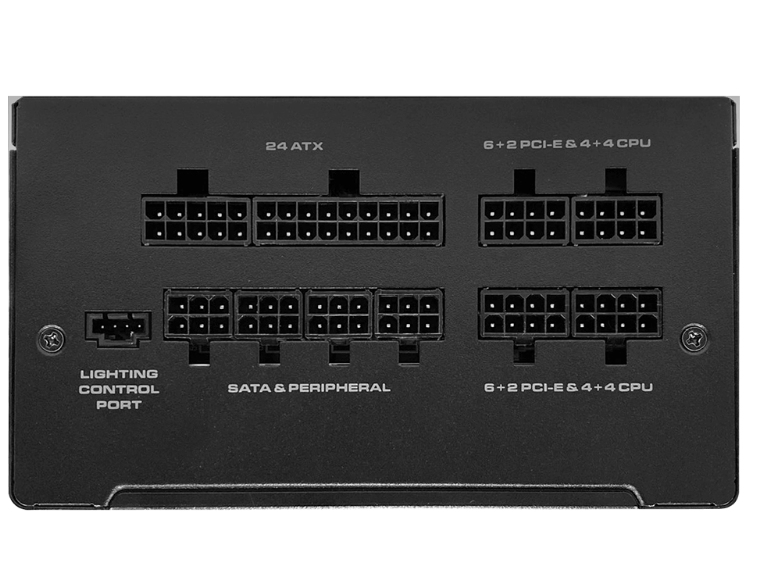

| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 8 |
| SATA power cable length | 120,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| PCI Express power connectors (6+2 pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | Yes |
| Noise level | 0 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan location | Side |
| Illumination | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 2.76 kg |
| Package type | Box |
