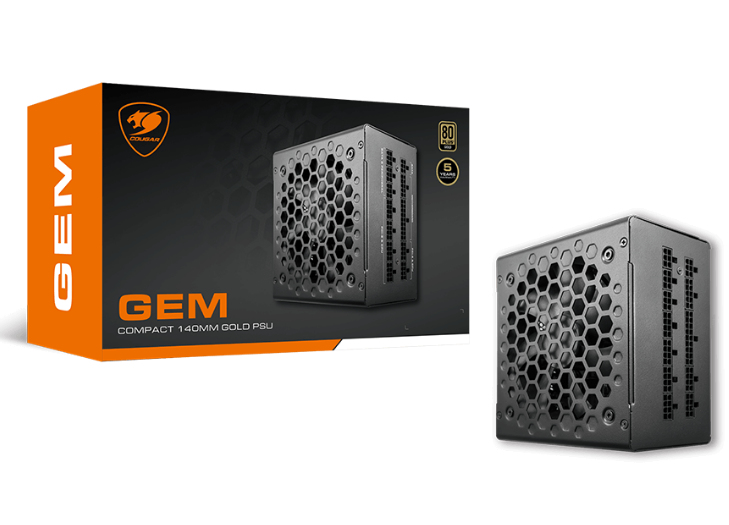

31GM105001P01 power supply unit
1050 W 20+4 pin ATX ATX Black
Model 31GM105001P01EAN 4710483774102
42 specifications
- Weight2.25 kg
- ColourBlack
- Total power1050 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.25 kg
- Colour
- Black
- Total power
- 1050 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- 31GM105001P01
- Part number
- 31GM105001P01
- EAN / UPC
- 4710483774102
- Also known as
- COUGAR 31GM105001P01 power supply unit 1050 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1050 W |
| Peak power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 8 A |
| Maximum input current (@220V) | 16 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

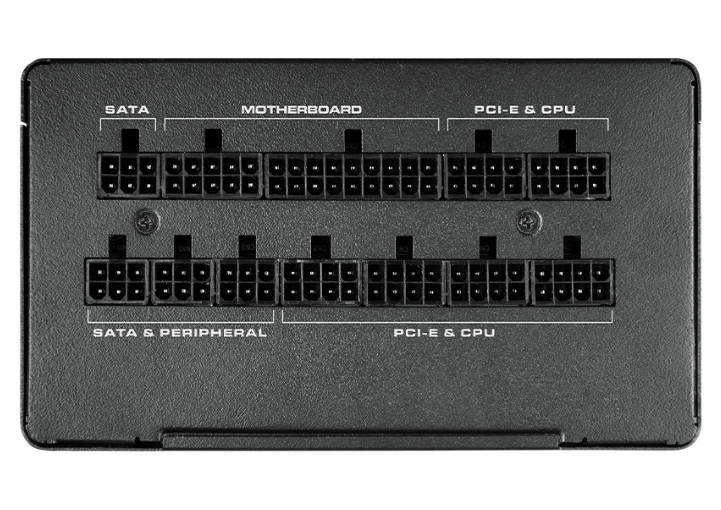

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
Packaging content
| Specification | Value |
|---|---|
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.25 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 326 mm |
| Package height | 115 mm |
| Package weight | 2.75 kg |
| Package type | Box |
