CoolBox S300 power supply unit
300 W 20+4 pin ATX SFX Silver
Model S300Part no. COO-FA300SBZEAN 8436556140624
29 specifications
- Weight593 g
- ColourSilver
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 593 g
- Colour
- Silver
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- S300
- Part numbers
- COO-FA300SBZ, FALCOO300SBZ
- EAN / UPC
- 8436556140624
- Also known as
- CoolBox S300 power supply unit 300 W 20+4 pin ATX SFX Silver
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 180 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+3.3V) | 6 A |
| Max output current (+12V1) | 10 A |
| Max output current (+12V2) | 10 A |
| Max output current (+5V) | 6 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over voltage, Short circuit |

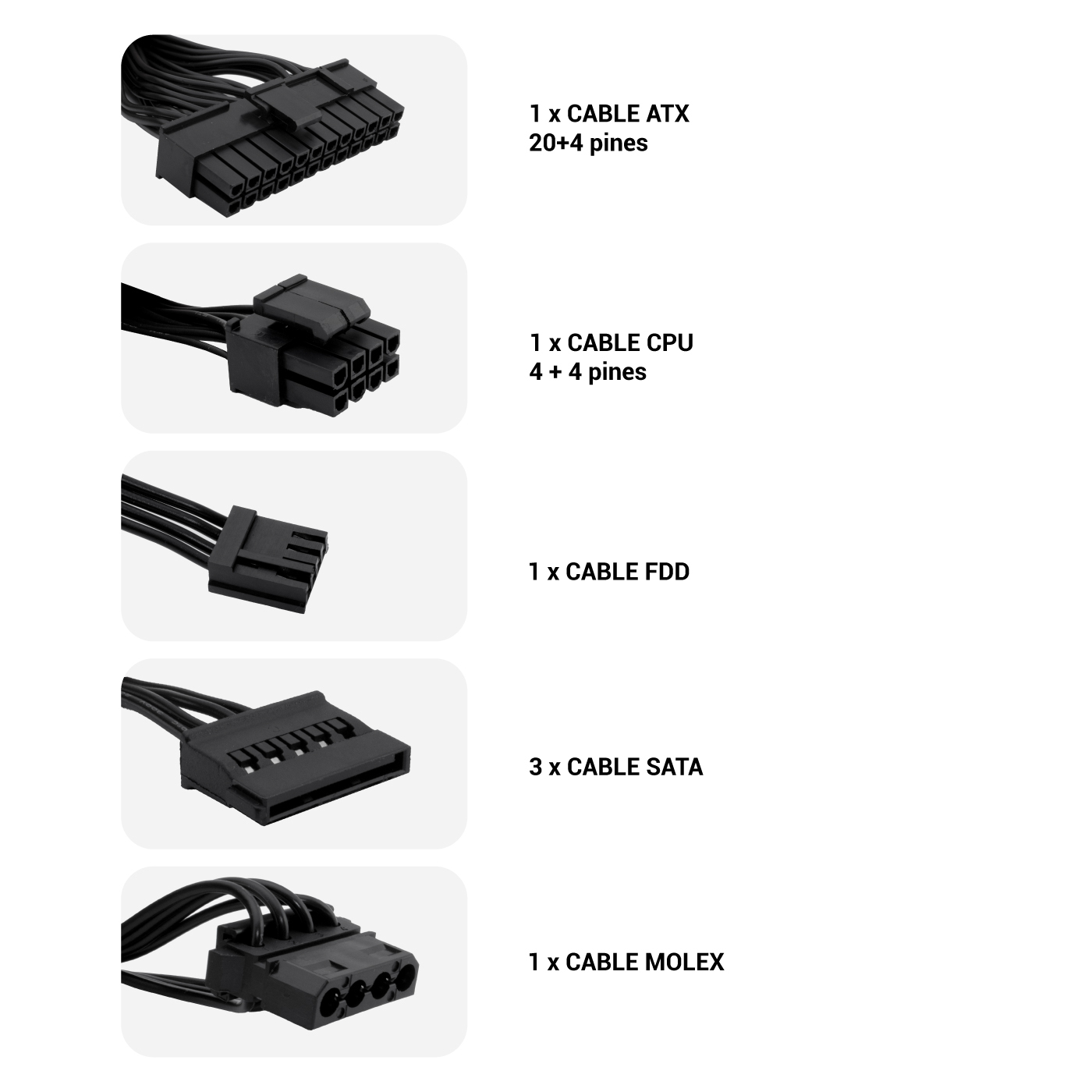

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 8 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 62 mm |
| Weight | 593 g |
