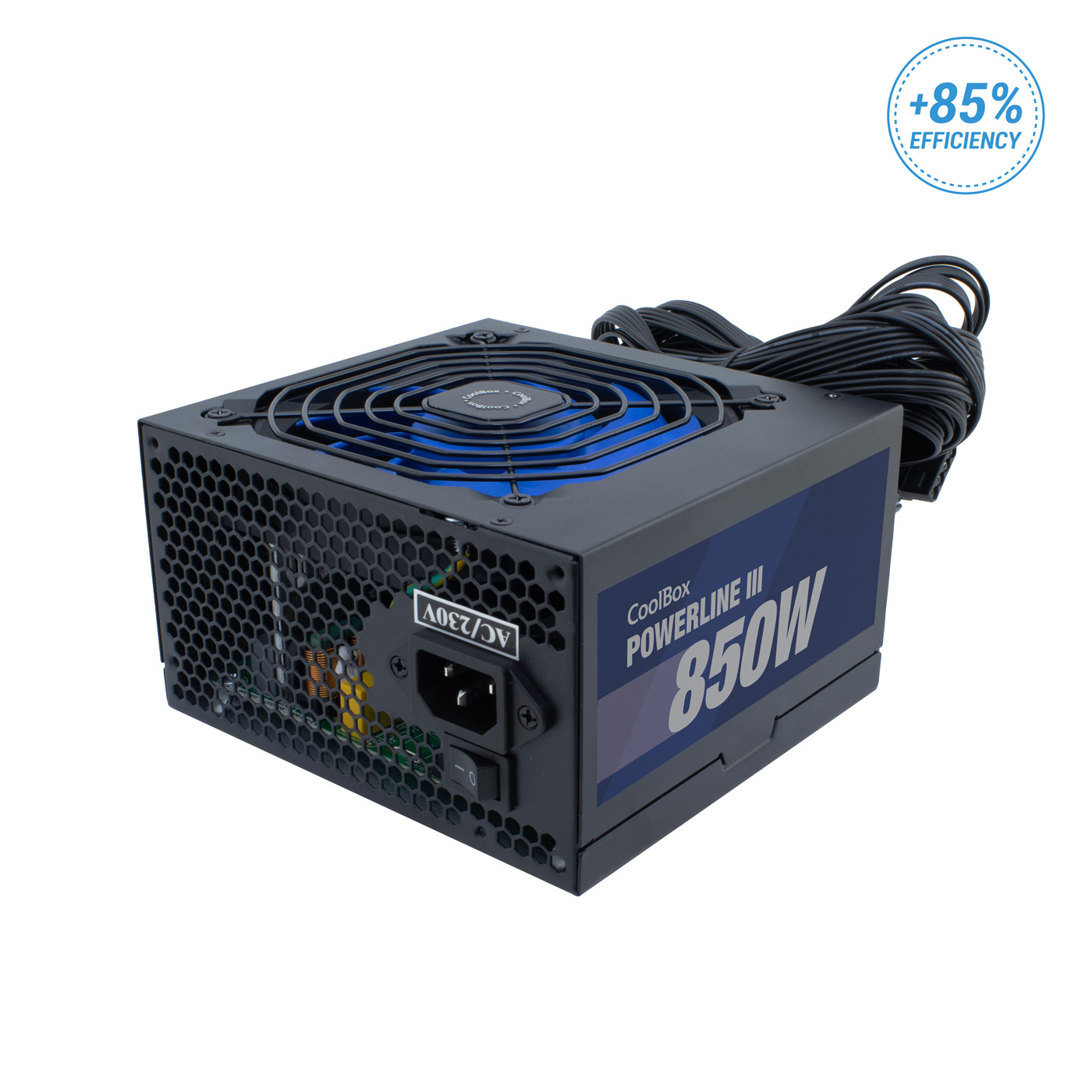

Powerline III 850
Model Powerline III 850Part no. COO-FAPW3-850EAN 8436556143038
47 specifications
- Weight1.23 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 1.23 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- Powerline III 850
- Part number
- COO-FAPW3-850
- EAN / UPC
- 8436556143038
- Also known as
- CoolBox Powerline III 850 power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
47 specifications in 6 groups

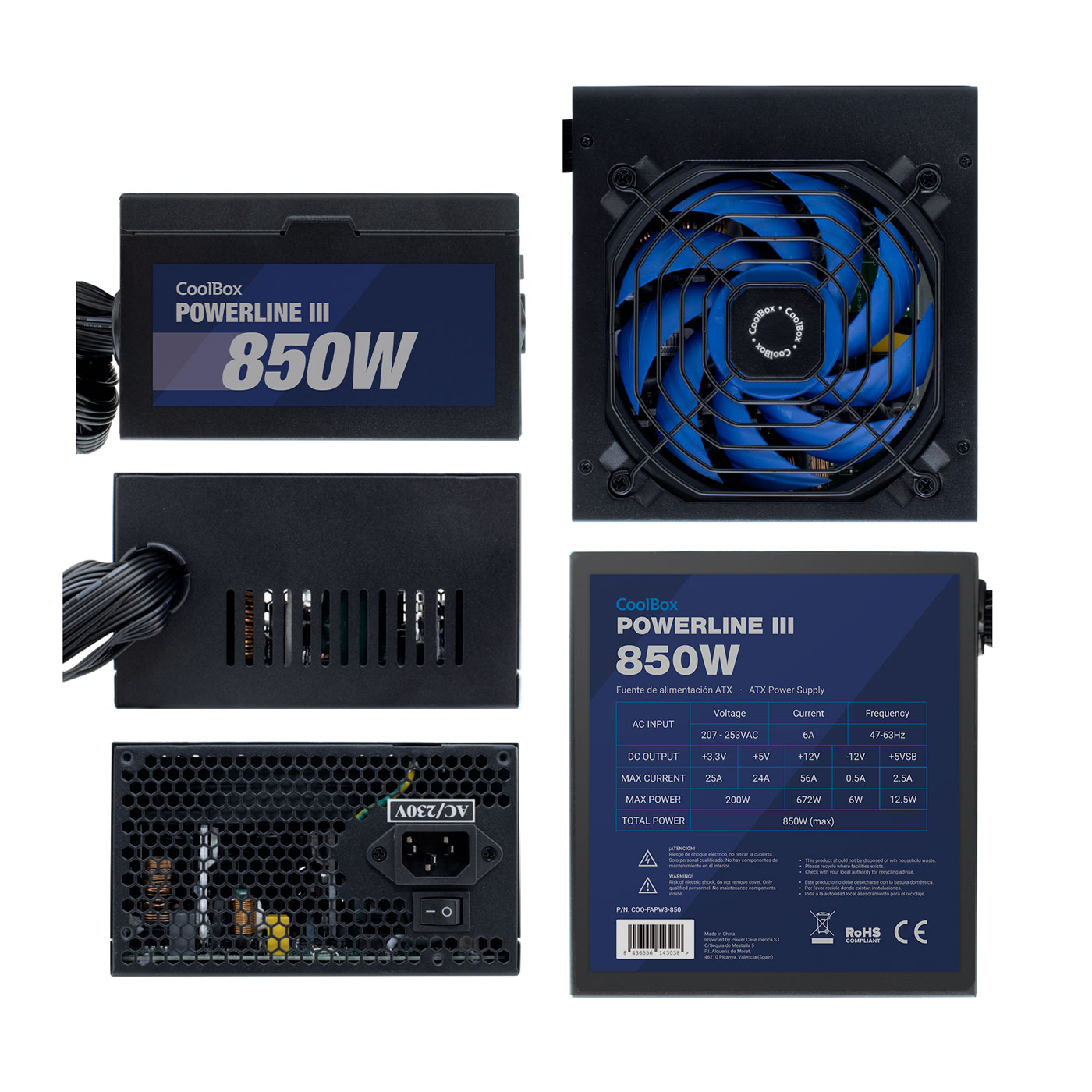

Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 207 - 253 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 200 W |
| Combined power (+12V) | 672 W |
| Combined power (+5V) | 200 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 56 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power Good signal delay range | 100 - 500 ms |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |

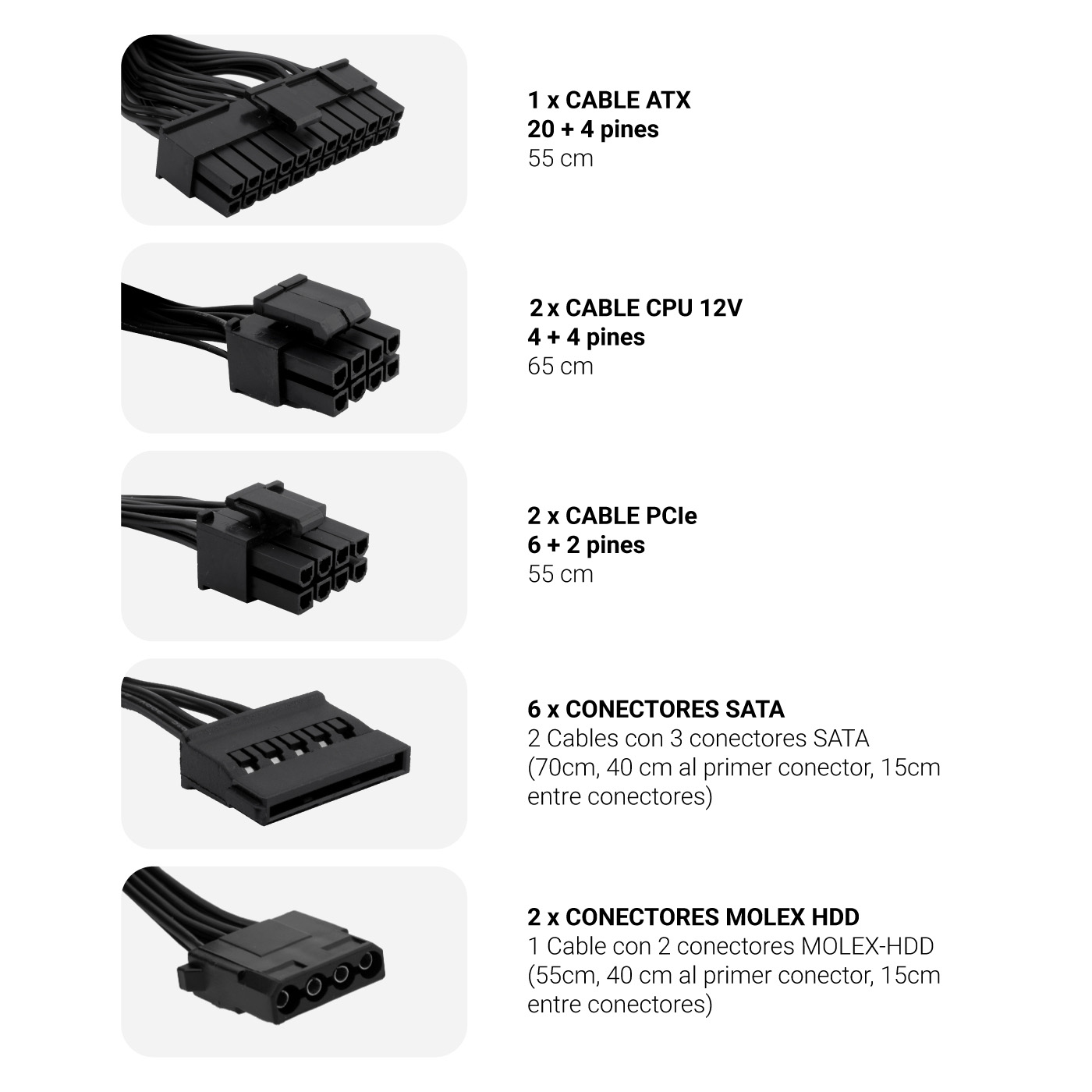

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 400,550,700 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 400,550 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 690 - 1760 RPM |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.23 kg |
