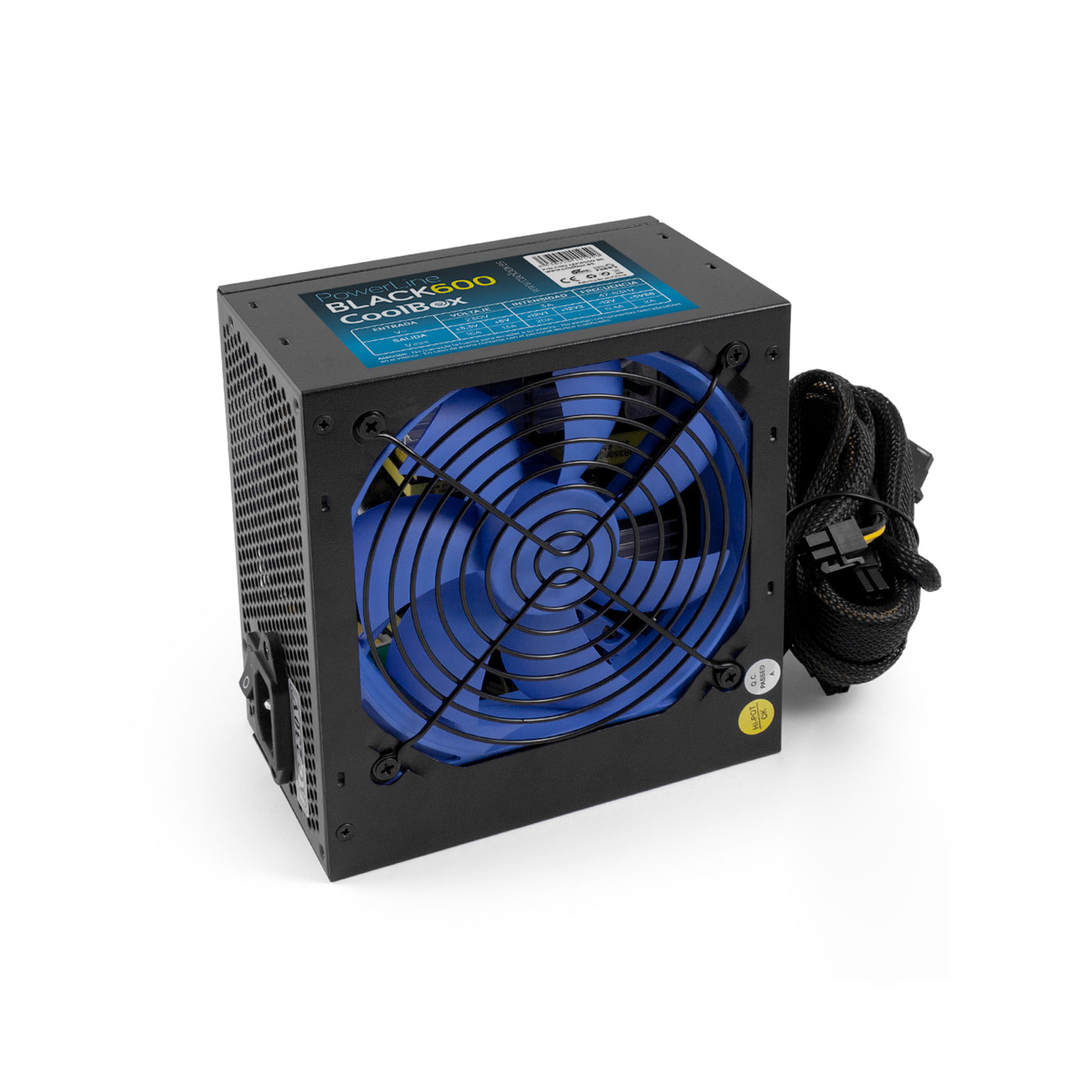

CoolBox Powerline Black 600
Model Powerline Black 600Part no. COO-FAPW600-BKEAN 8436556141959
36 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- Powerline Black 600
- Part number
- COO-FAPW600-BK
- EAN / UPC
- 8436556141959
- Also known as
- CoolBox Powerline Black 600 power supply unit 600 W 20+4 pin ATX ATX
Specifications
36 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 220 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 35 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Blue |
