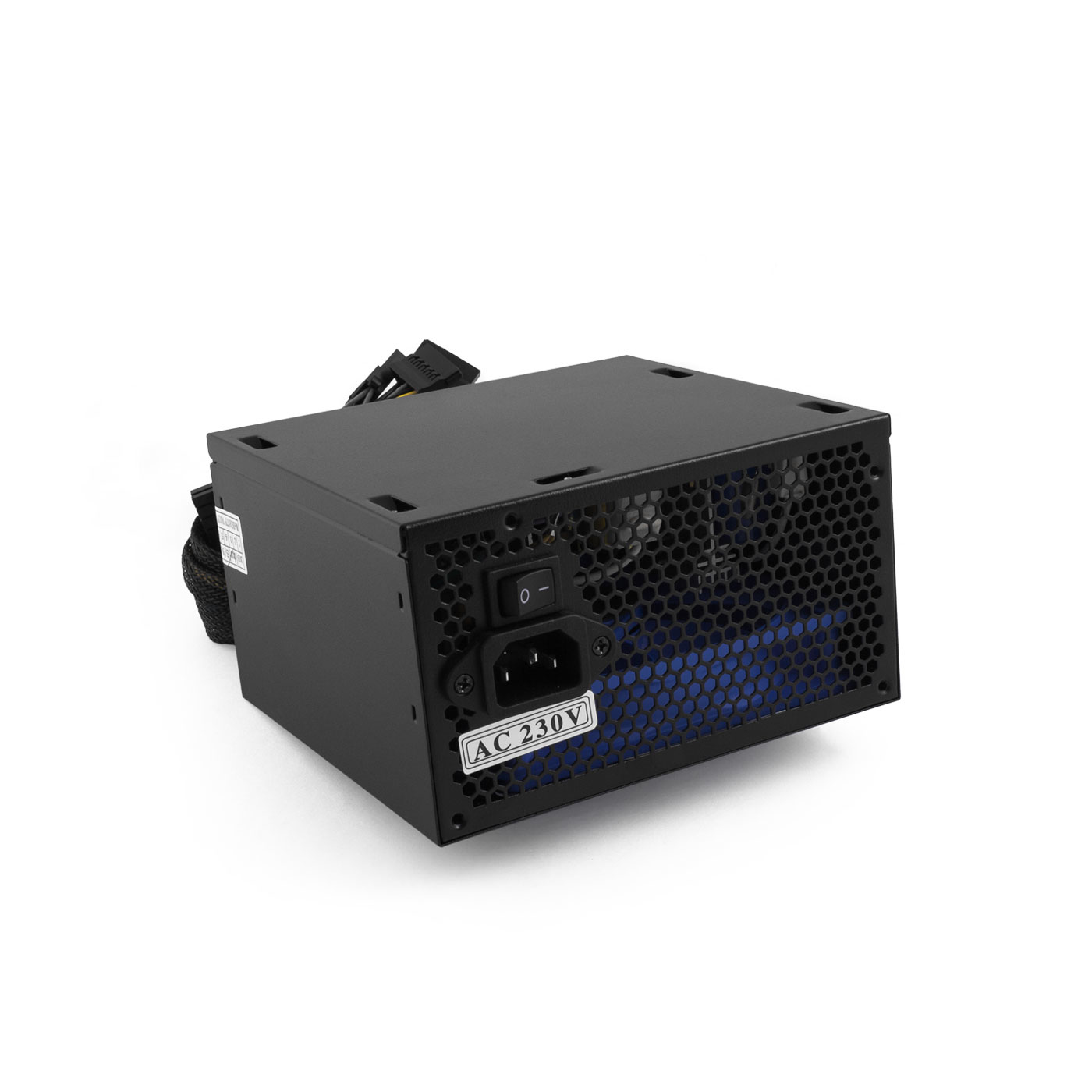

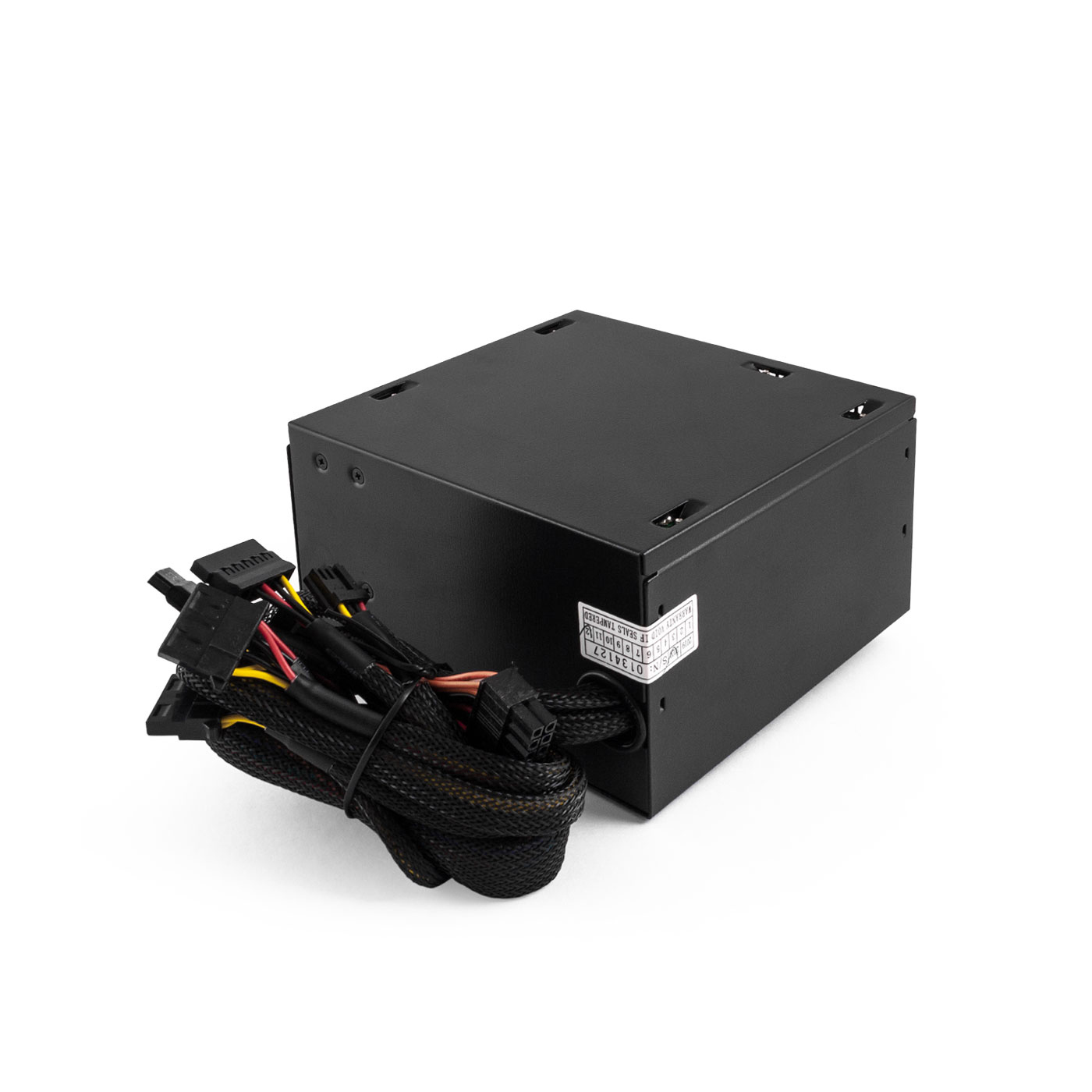

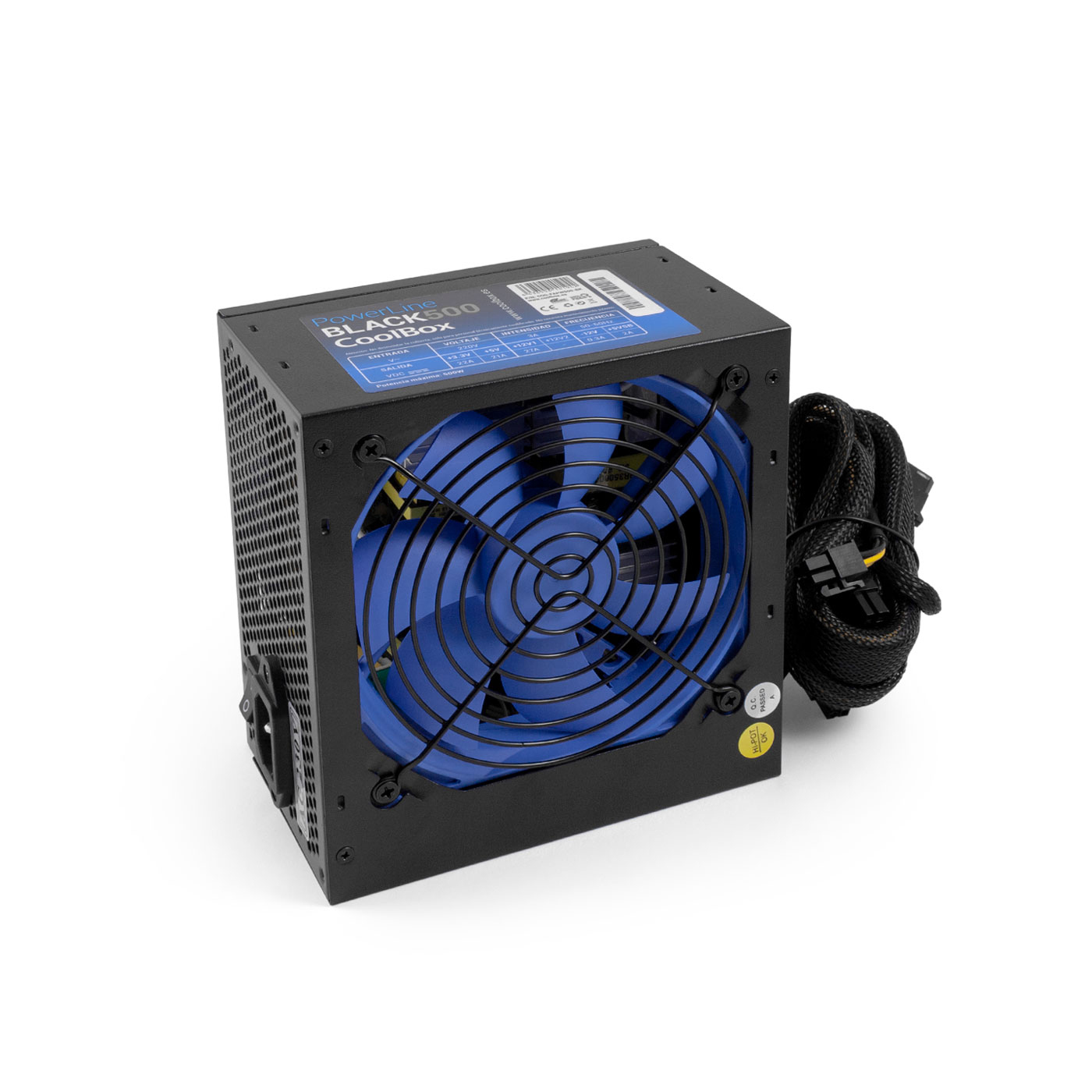

CoolBox Powerline Black 500
Model Powerline Black 500Part no. COO-FAPW500-BKEAN 8436556141942
34 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- Powerline Black 500
- Part number
- COO-FAPW500-BK
- EAN / UPC
- 8436556141942
- Also known as
- CoolBox Powerline Black 500 power supply unit 500 W 20+4 pin ATX ATX
Specifications
34 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3 A |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 27 A |
| Max output current (+5V) | 21 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Hold time | 16 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Blue |
What people say
Reviews & ratings
CoolBox Powerline Black 500
No reviews yet
Be the first to tell others how CoolBox Powerline Black 500 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare CoolBox Powerline Black 500

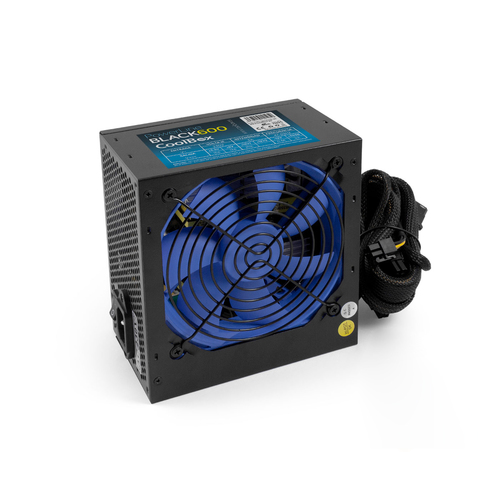

All power supply unit comparisons- CoolBox Powerline Black 500 vsCoolBox Powerline Black 600Compare specs
- CoolBox Powerline Black 500 vsCoolBox Powerline Black 700Compare specs

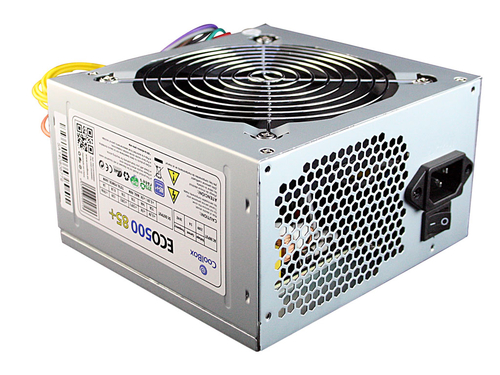

- CoolBox Powerline Black 500 vsCoolBox ECO500 85+Compare specs
- CoolBox Powerline Black 500 vsCoolBox T300 power supply unitCompare specs
- CoolBox Powerline Black 500 vsZalman ZM700-TX power supply unitCompare specs

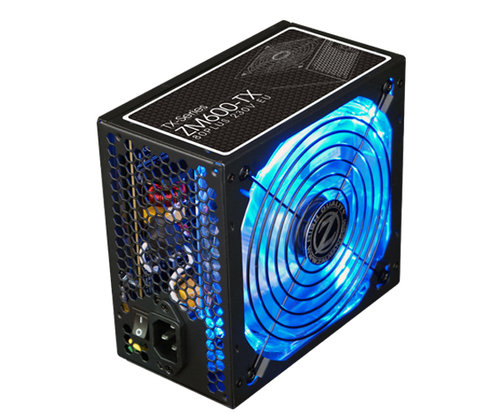

- CoolBox Powerline Black 500 vsZalman ZM600-TX power supply unitCompare specs
