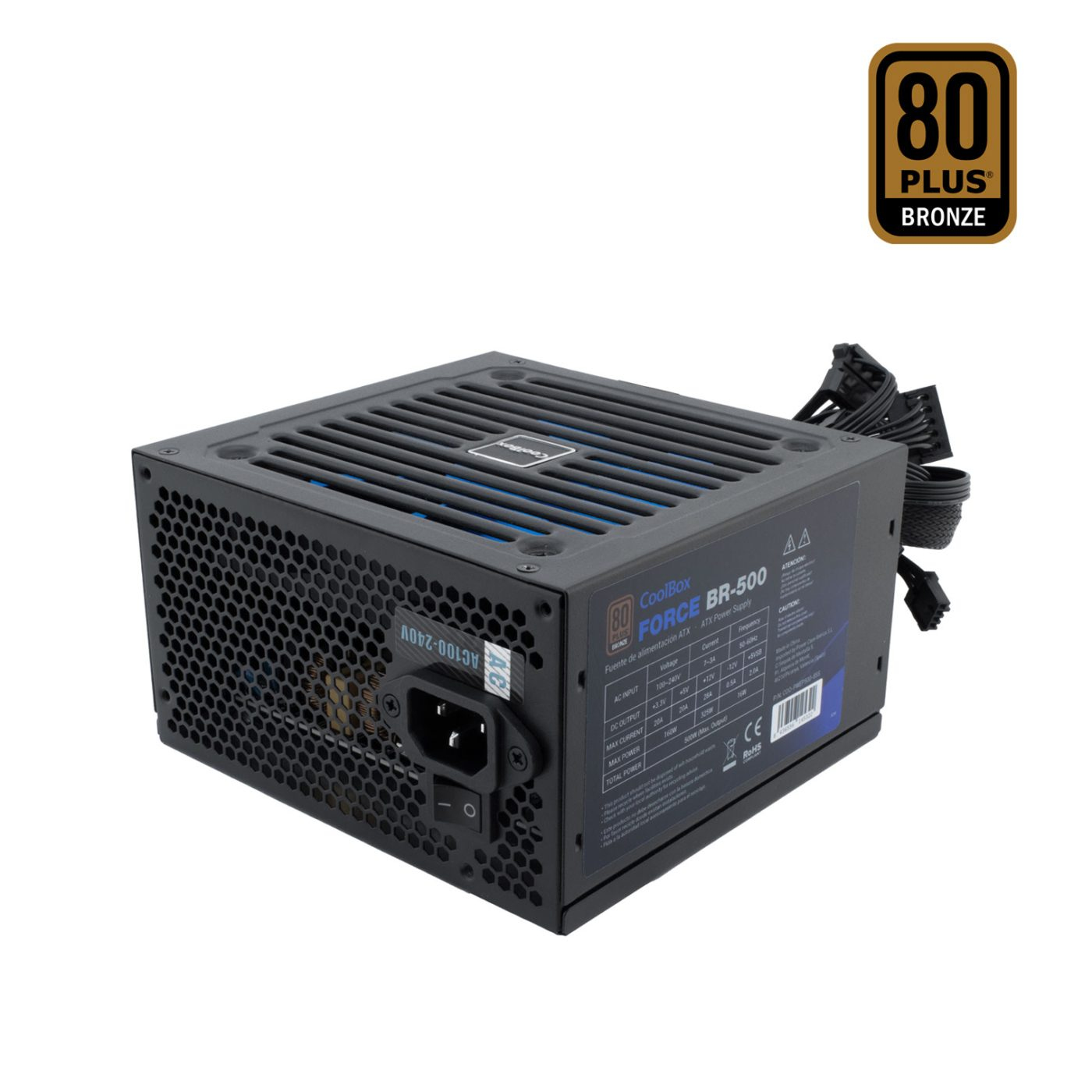

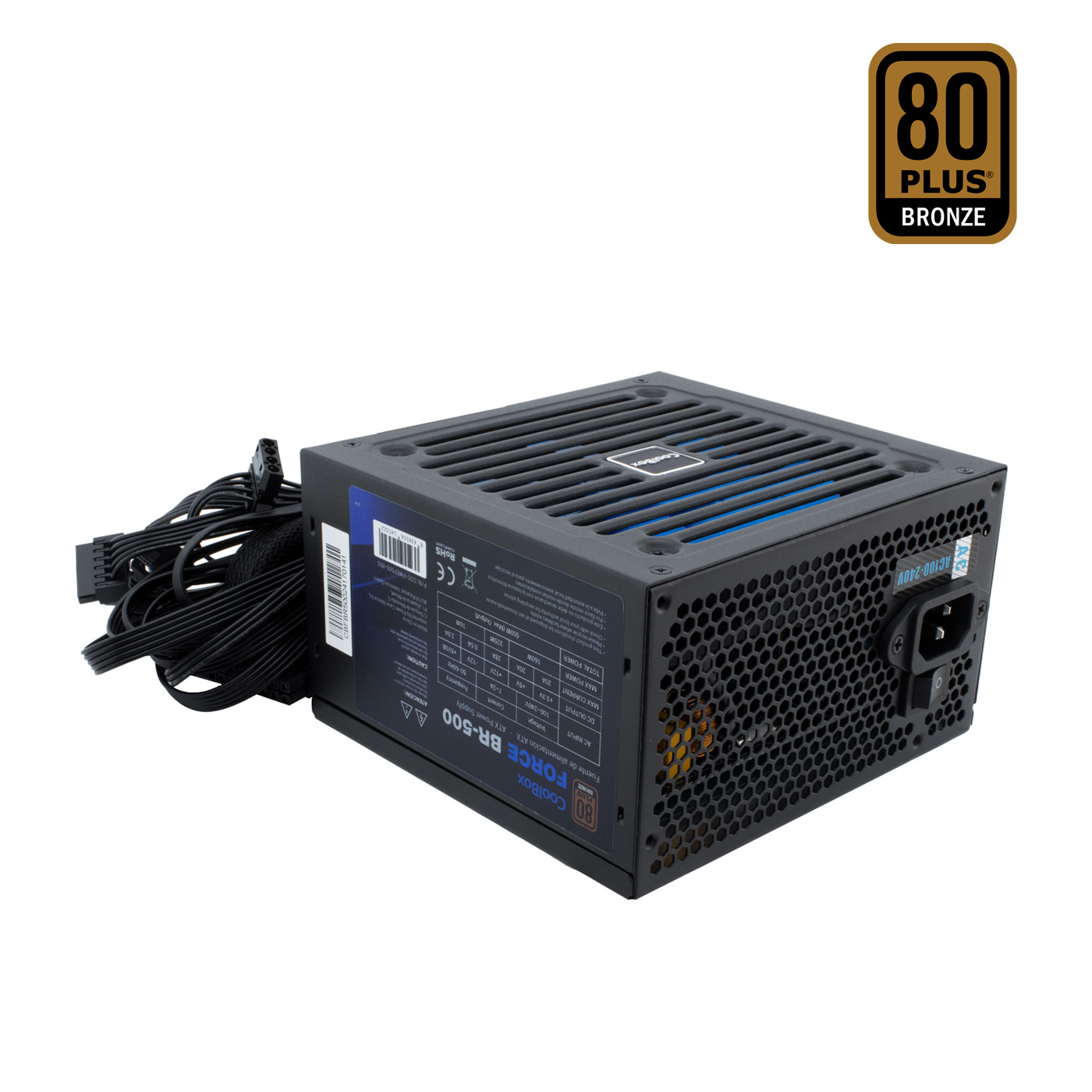

CoolBox Force BR-500
Model Force BR-500Part no. COO-PWEP500-85SEAN 8436556145322
42 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- Force BR-500
- Part number
- COO-PWEP500-85S
- EAN / UPC
- 8436556145322
- Also known as
- CoolBox Force BR-500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 7 A |
| Maximum input current (@220V) | 3.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 60 W |
| Combined power (+12V) | 432 W |
| Combined power (+5V) | 60 W |
| Combined power (-12V) | 16 W |
| Combined power (+5Vsb) | 16 W |
| Max output current (+3.3V) | 6 A |
| Max output current (+12V) | 36 A |
| Max output current (+5V) | 8 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |

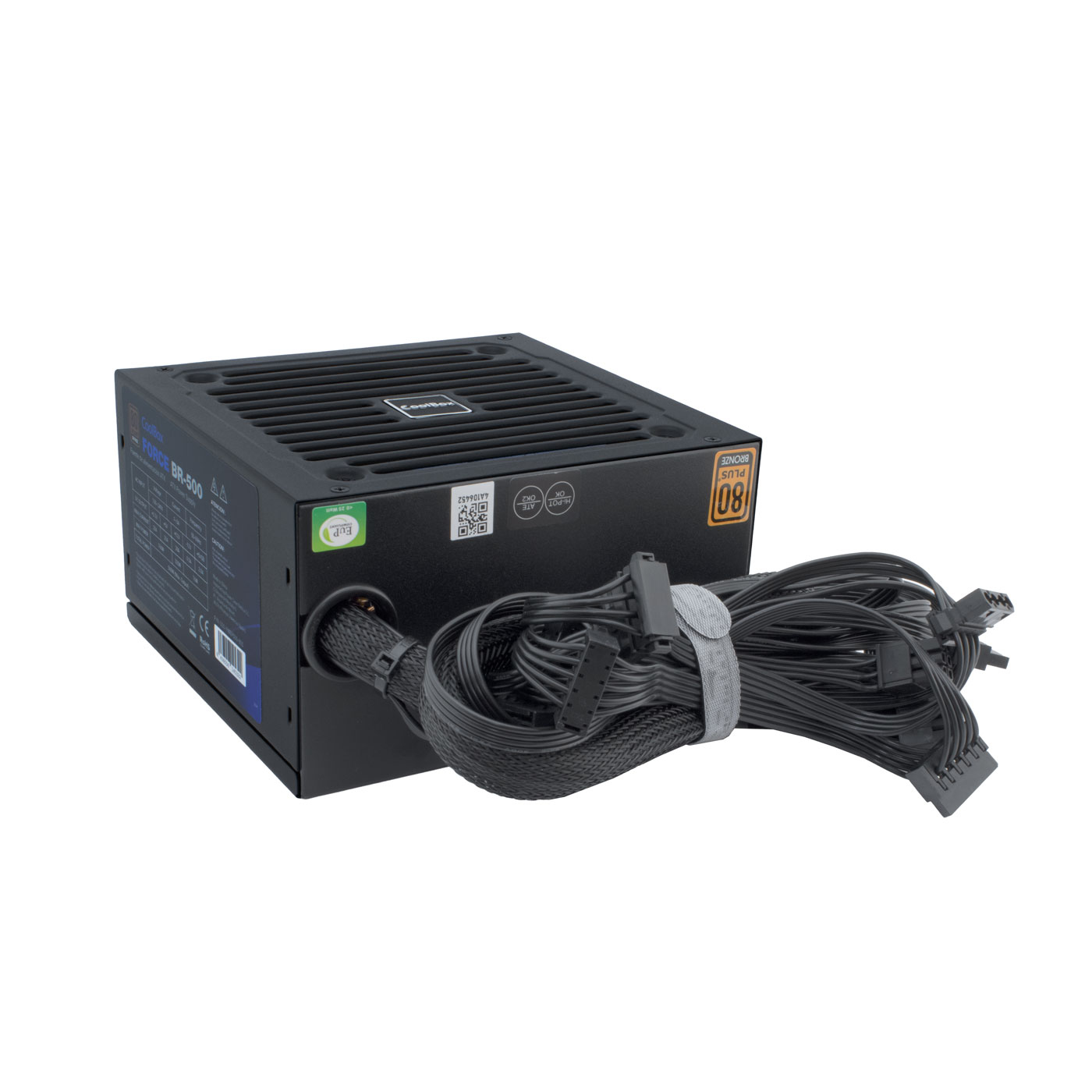

| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

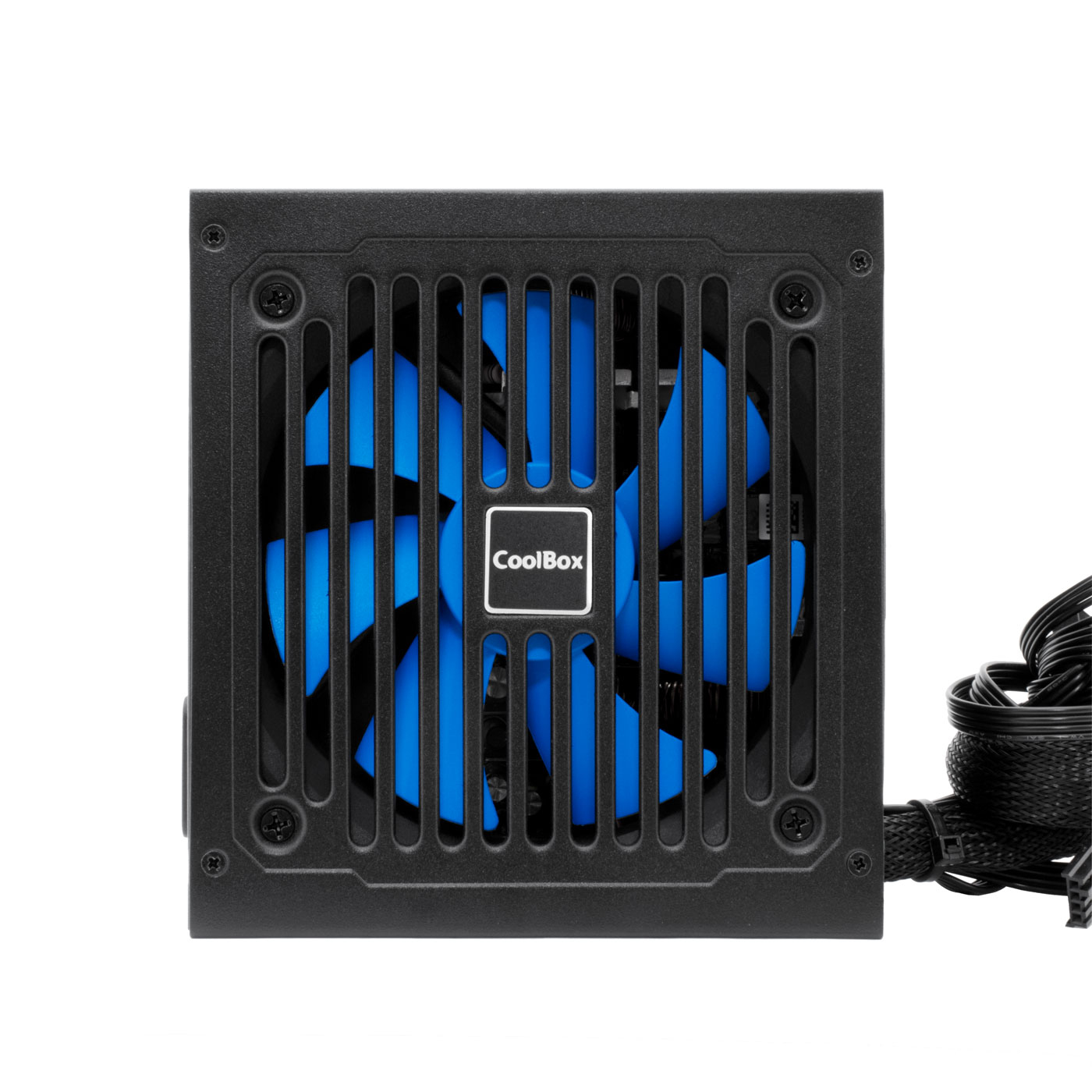

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, WEEE |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
