CoolBox FALCOO500E85 power supply unit
300 W 20+4 pin ATX ATX Grey
Model FALCOO500E85Part no. COO-FA500E85
32 specifications
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- FALCOO500E85
- Part number
- COO-FA500E85
- Also known as
- CoolBox FALCOO500E85 power supply unit 300 W 20+4 pin ATX ATX Grey
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Efficiency | 85% |

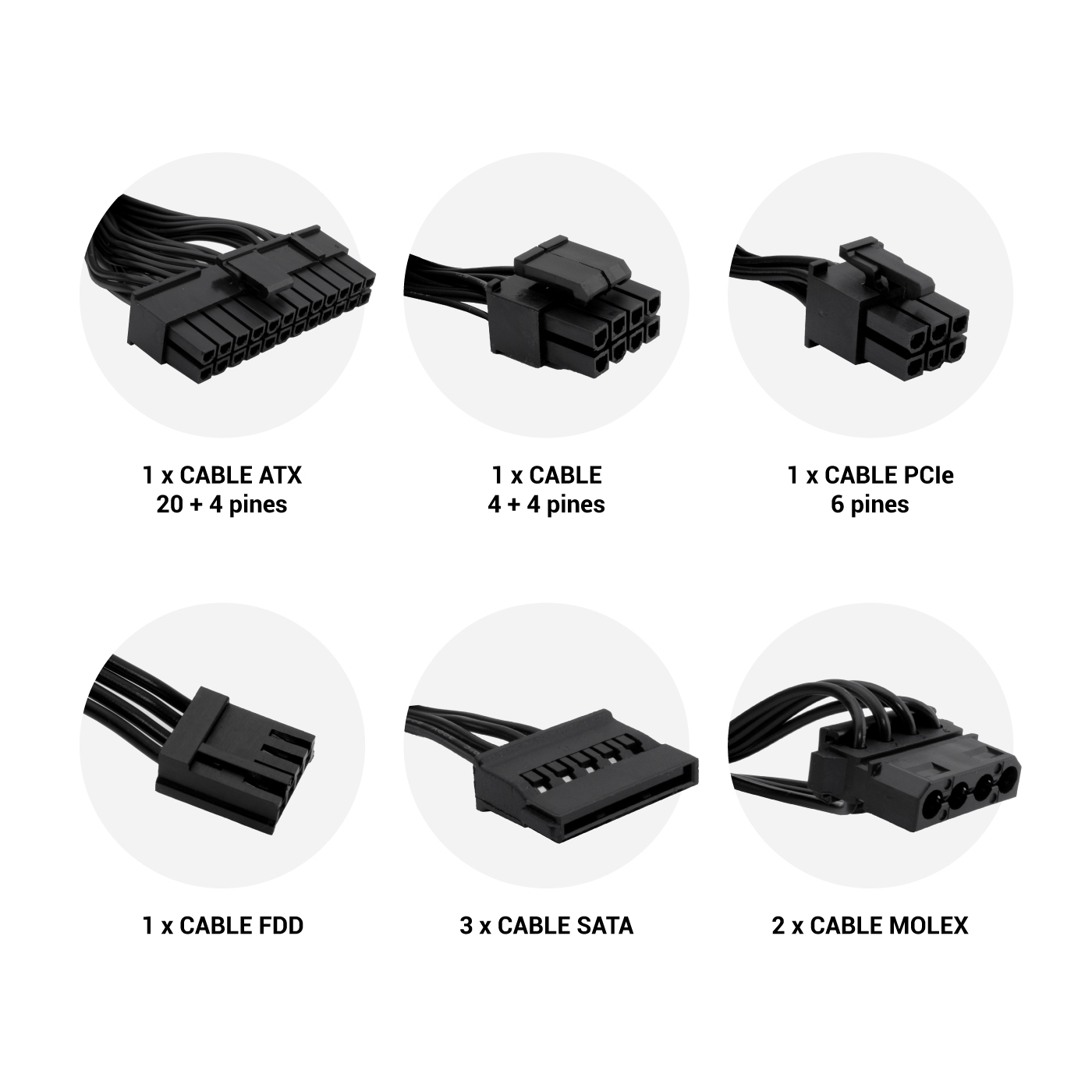

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, Energy Saving ErP, Eco-raee |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 86 mm |
| Height | 140 mm |
