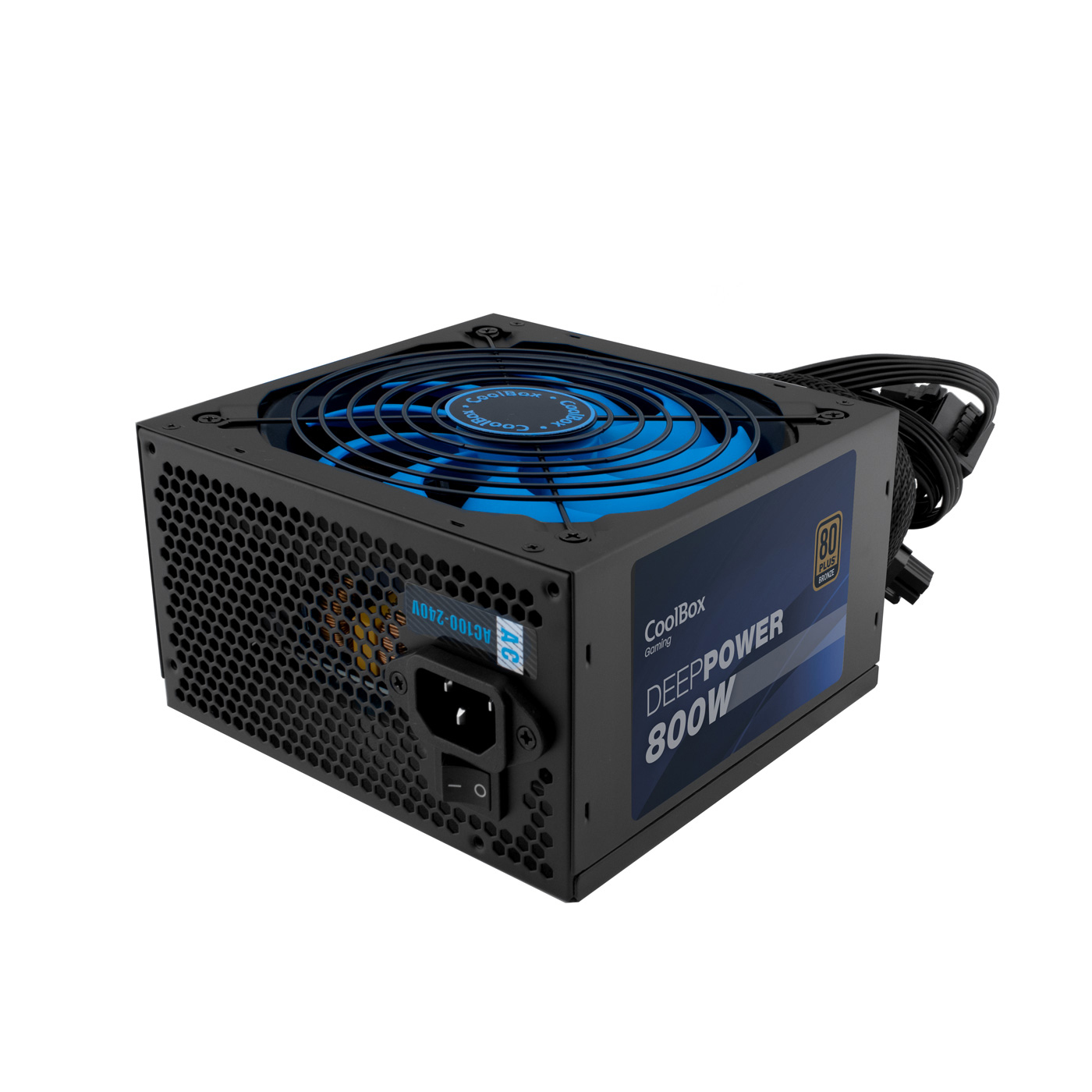

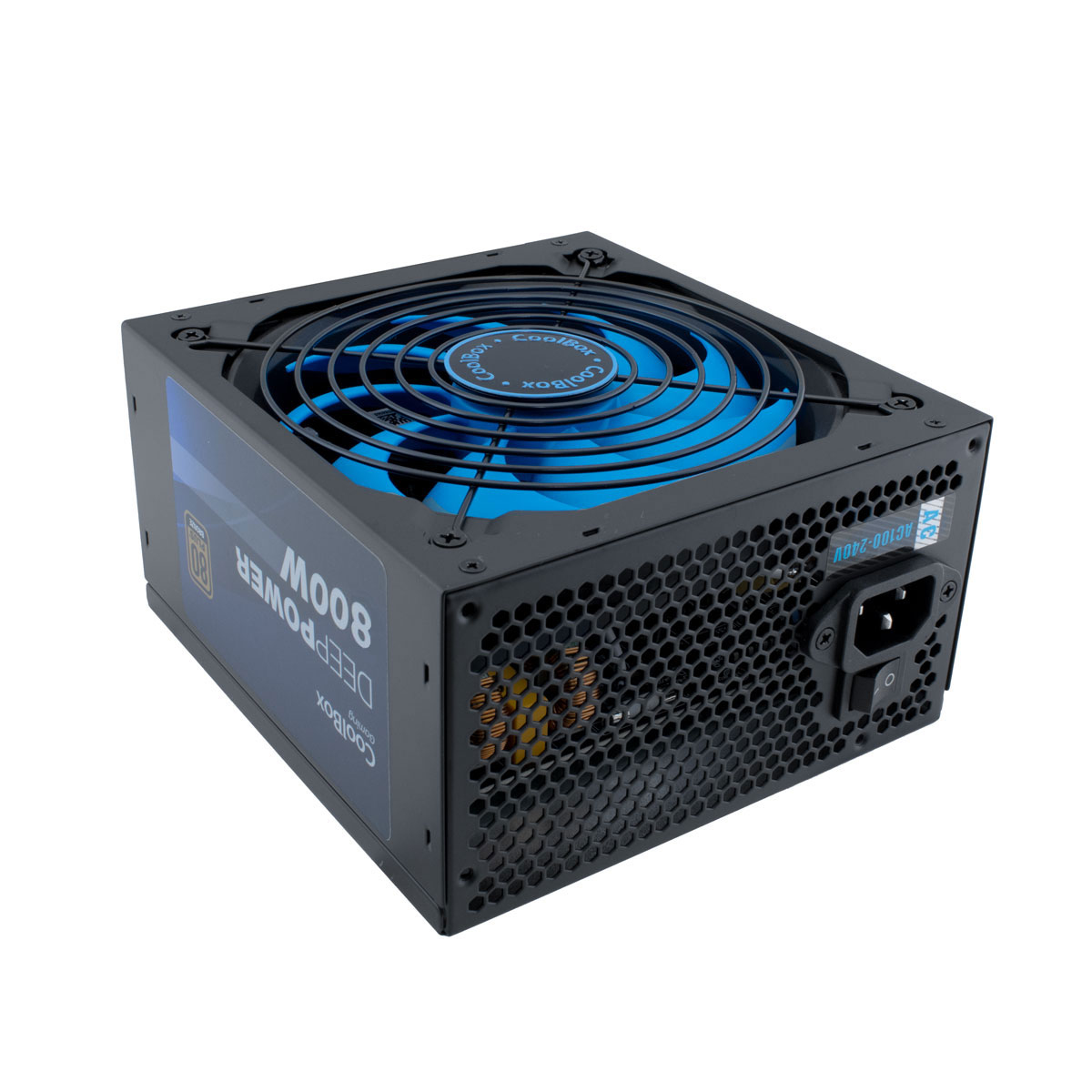

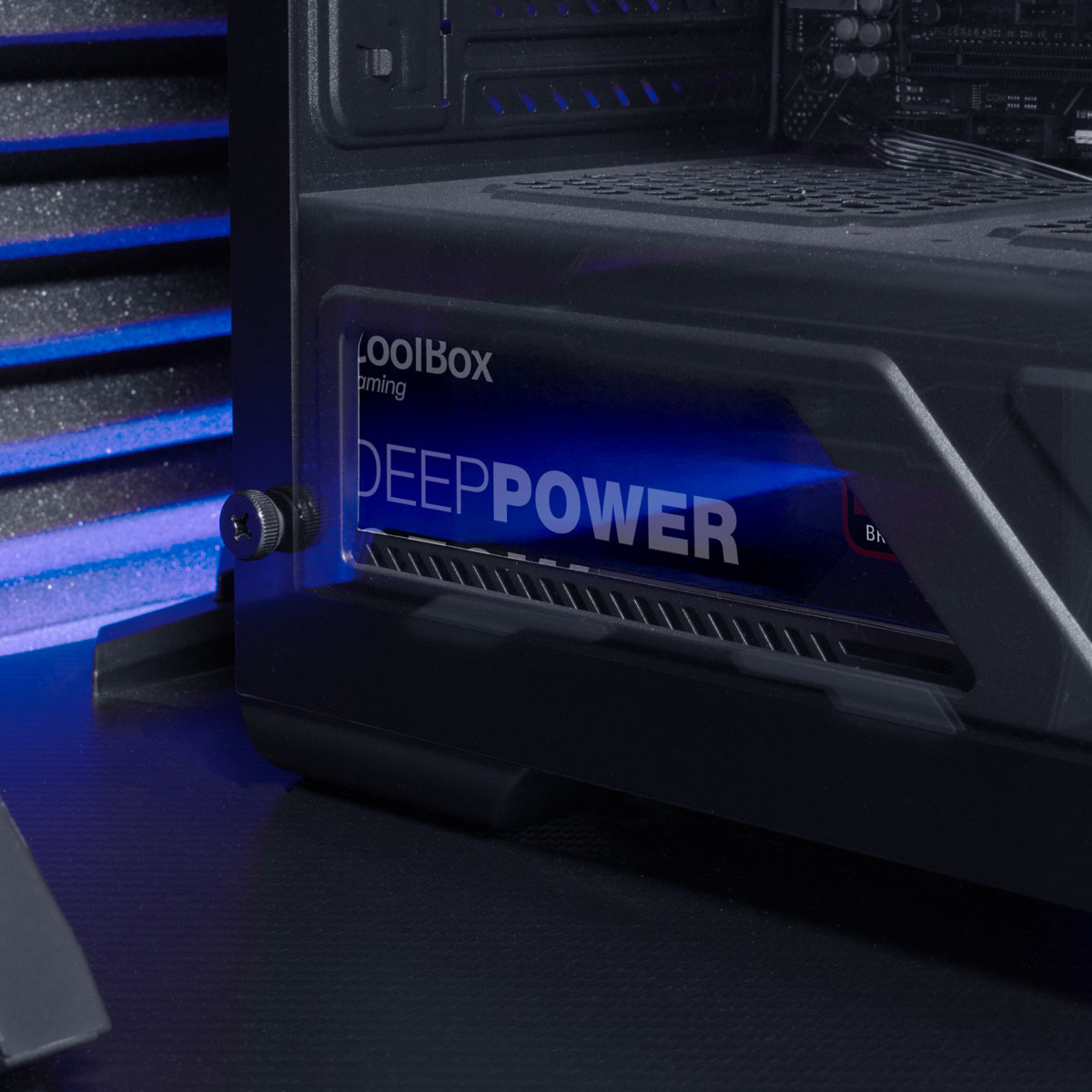

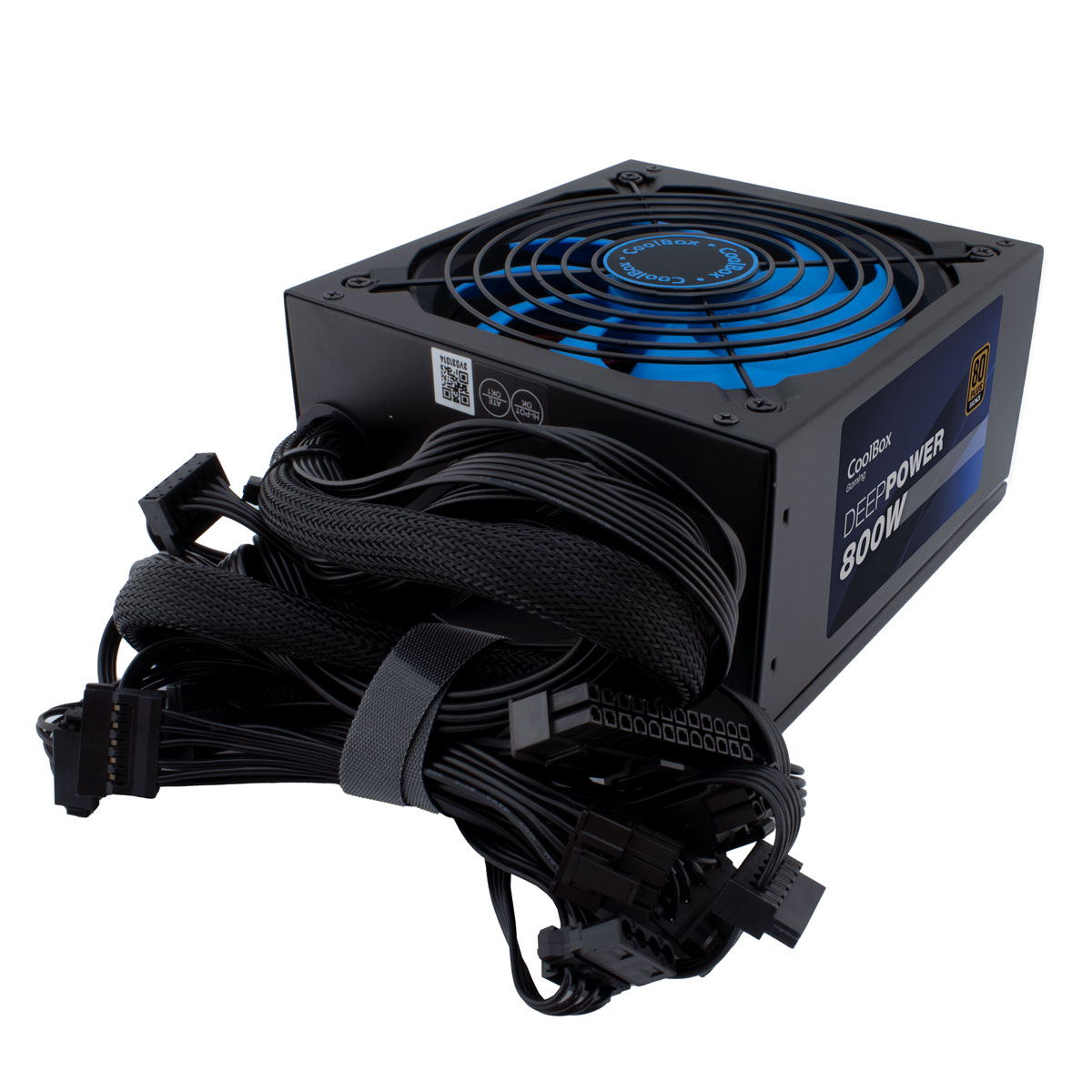

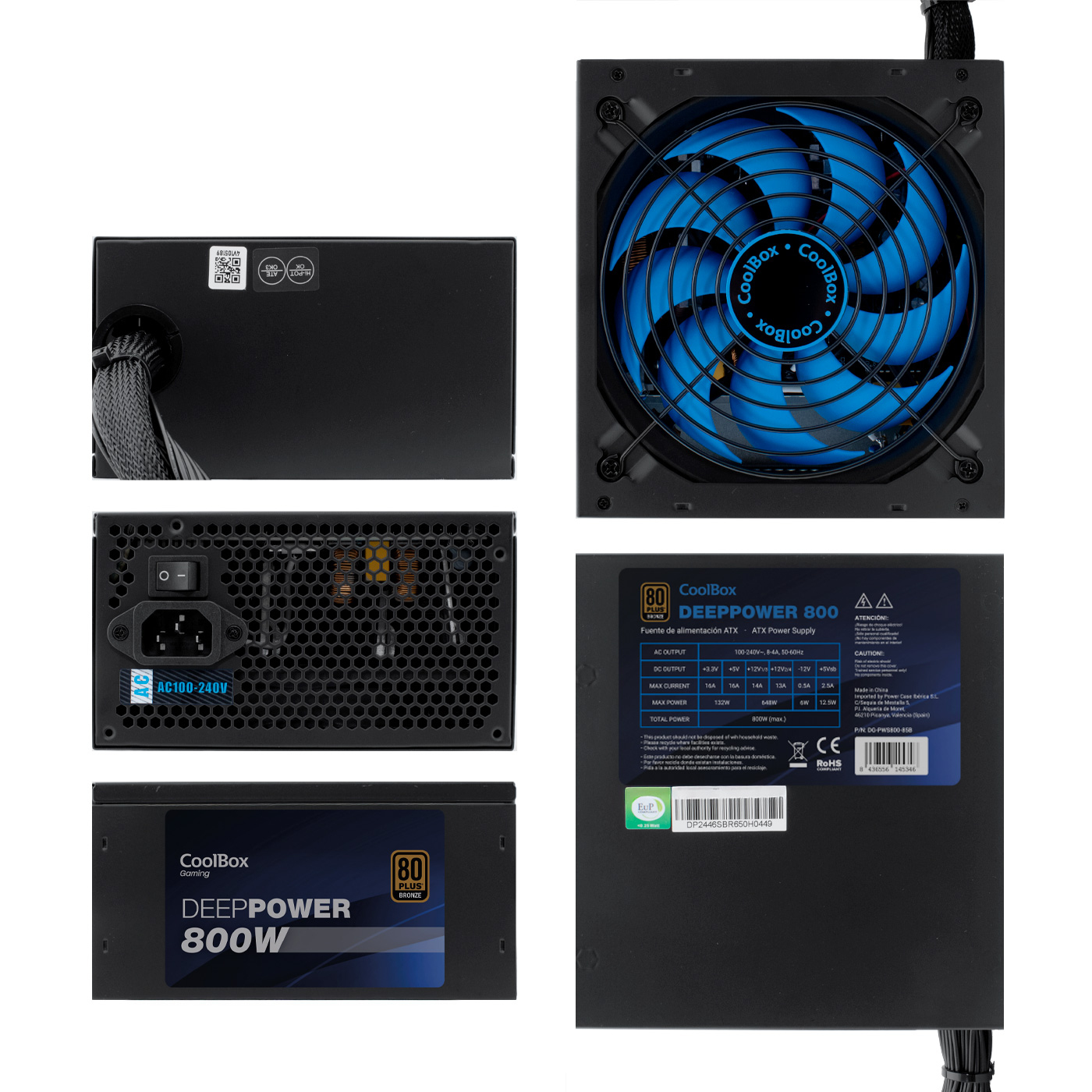

CoolBox DeepPower BR-800

CoolBox DeepPower BR-800

Model DeepPower BR-800Part no. DG-PWS800-85BEAN 8436556145346

50 specifications
  • Noise25 dB
  • Weight2.1 kg
  • ColourBlack
  • Total power800 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC/Server
See all specifications

Overview

Noise
25 dB
Weight
2.1 kg
Colour
Black
Total power
800 W
Motherboard power connector
20+4 pin ATX
Purpose
PC/Server
Brand
CoolBox
Model
DeepPower BR-800
Part number
DG-PWS800-85B
EAN / UPC
8436556145346
Also known as
CoolBox DeepPower BR-800 power supply unit 800 W 20+4 pin ATX ATX Black

Specifications

50 specifications in 9 groups

Power

Total power800 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)8 A
Maximum input current (@220V)4 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)132 W
Combined power (+12V)684 W
Combined power (+5V)132 W
Combined power (-12V)6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)18 A
Max output current (+12V1)22 A
Max output current (+12V2)22 A
Max output current (+12V3)22 A
Max output current (+12V4)22 A
Max output current (+5V)18 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2.5 A
Efficiency85%
Power Good signal delay range100 - 500 ms
Power protection featuresOver power, Over voltage, Short circuit, Under voltage

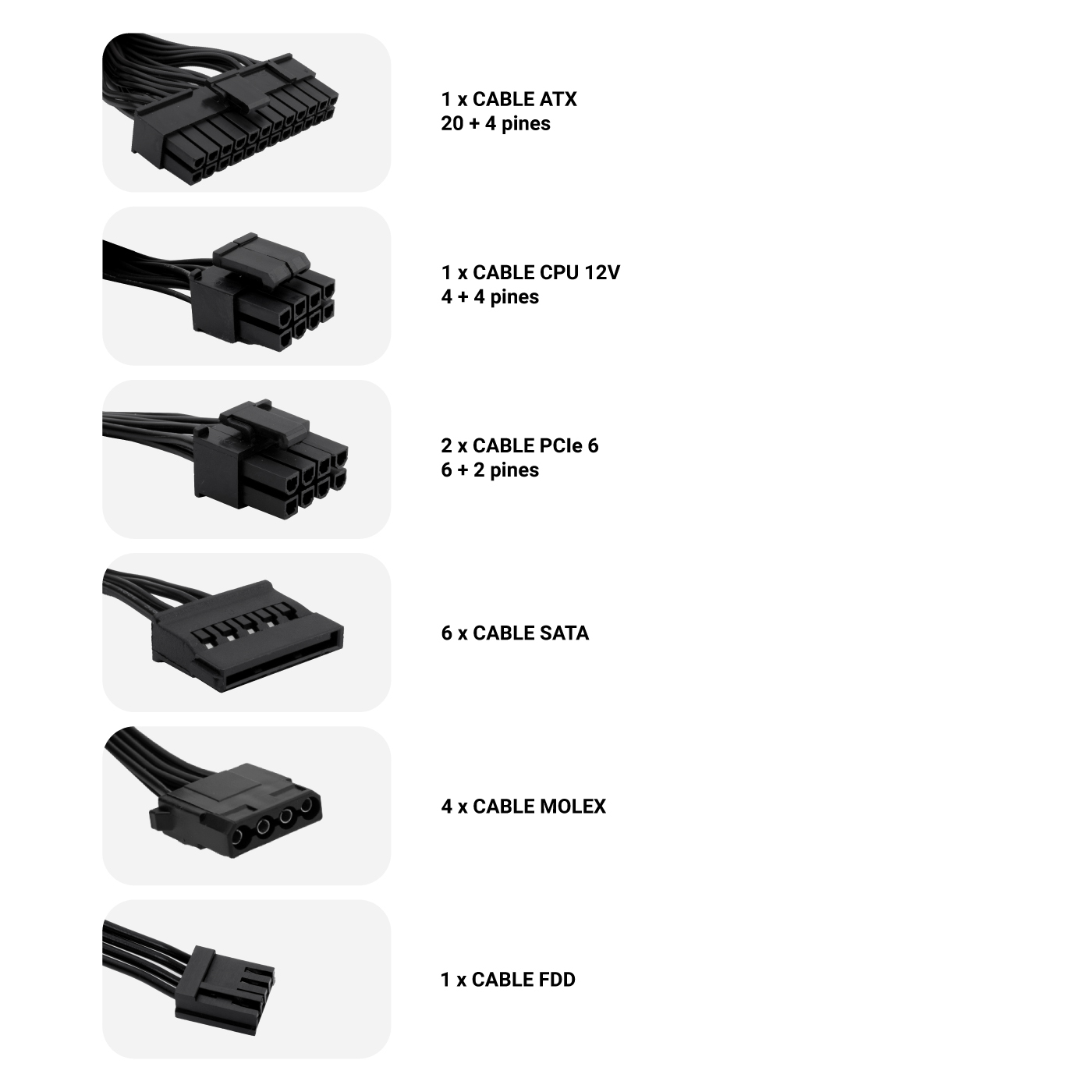

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
Floppy disk drive connectorYes
Floppy drive power connector1
PCI Express connectorYes
Cabling typeNon-Modular

Performance

PurposePC/Server
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.31
Noise level25 dB
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes

Operational conditions

Operating temperature (T-T)0 - 40 °C

Packaging content

Cables includedAC

Certificates

Compliance certificatesRoHS
CertificationCE, WEEE

Weight & dimensions

Weight2.1 kg

Packaging data

ManualYes
Package typeBox
