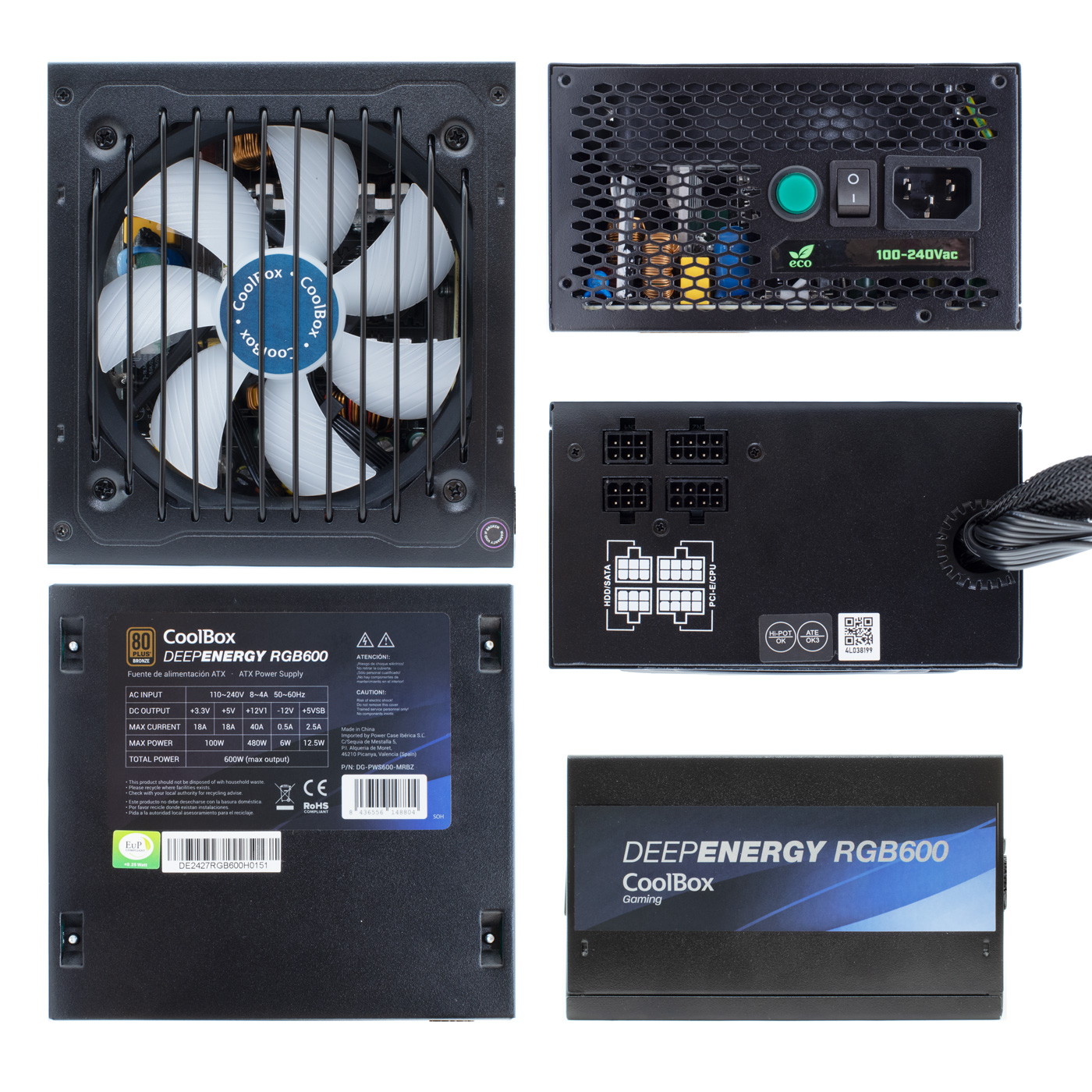

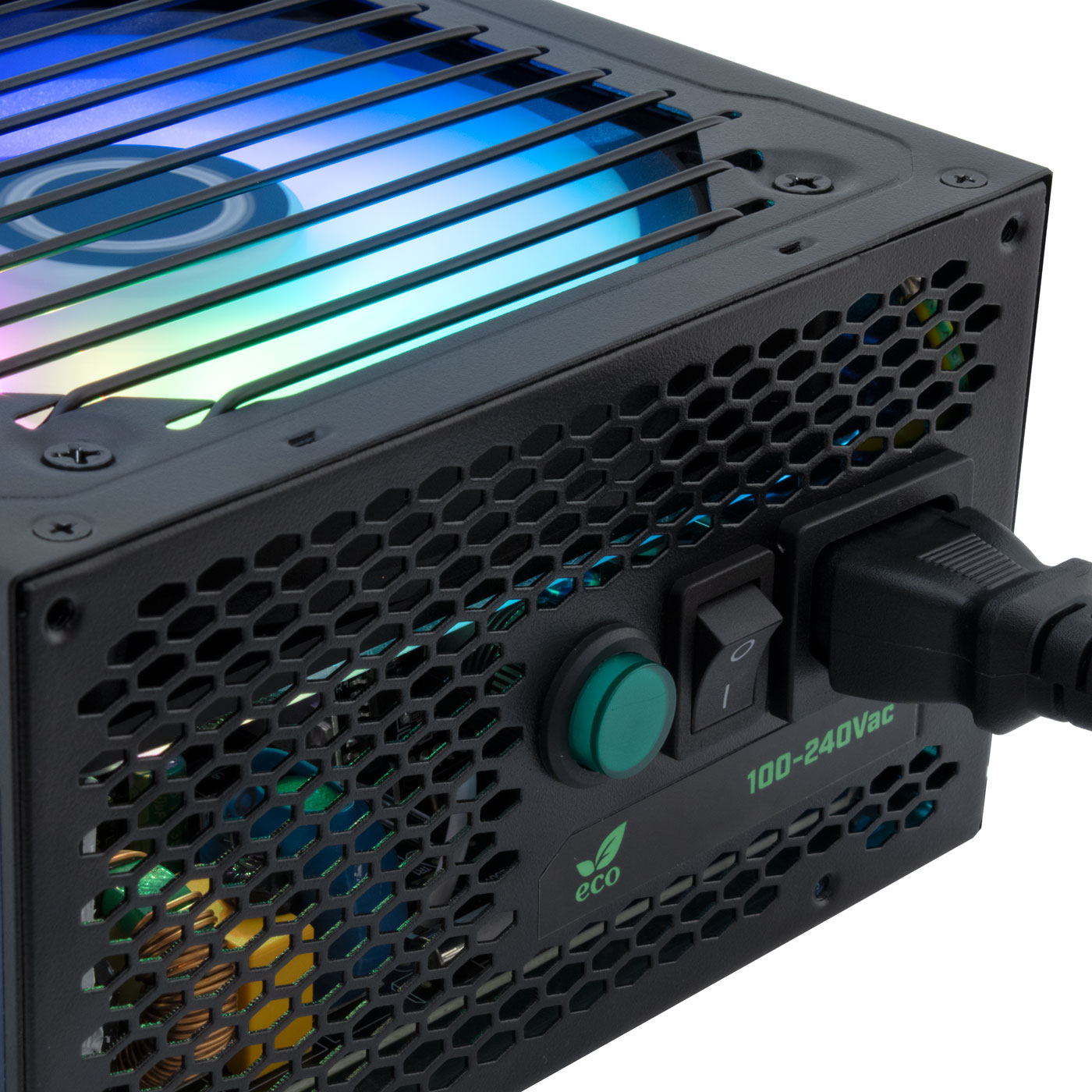

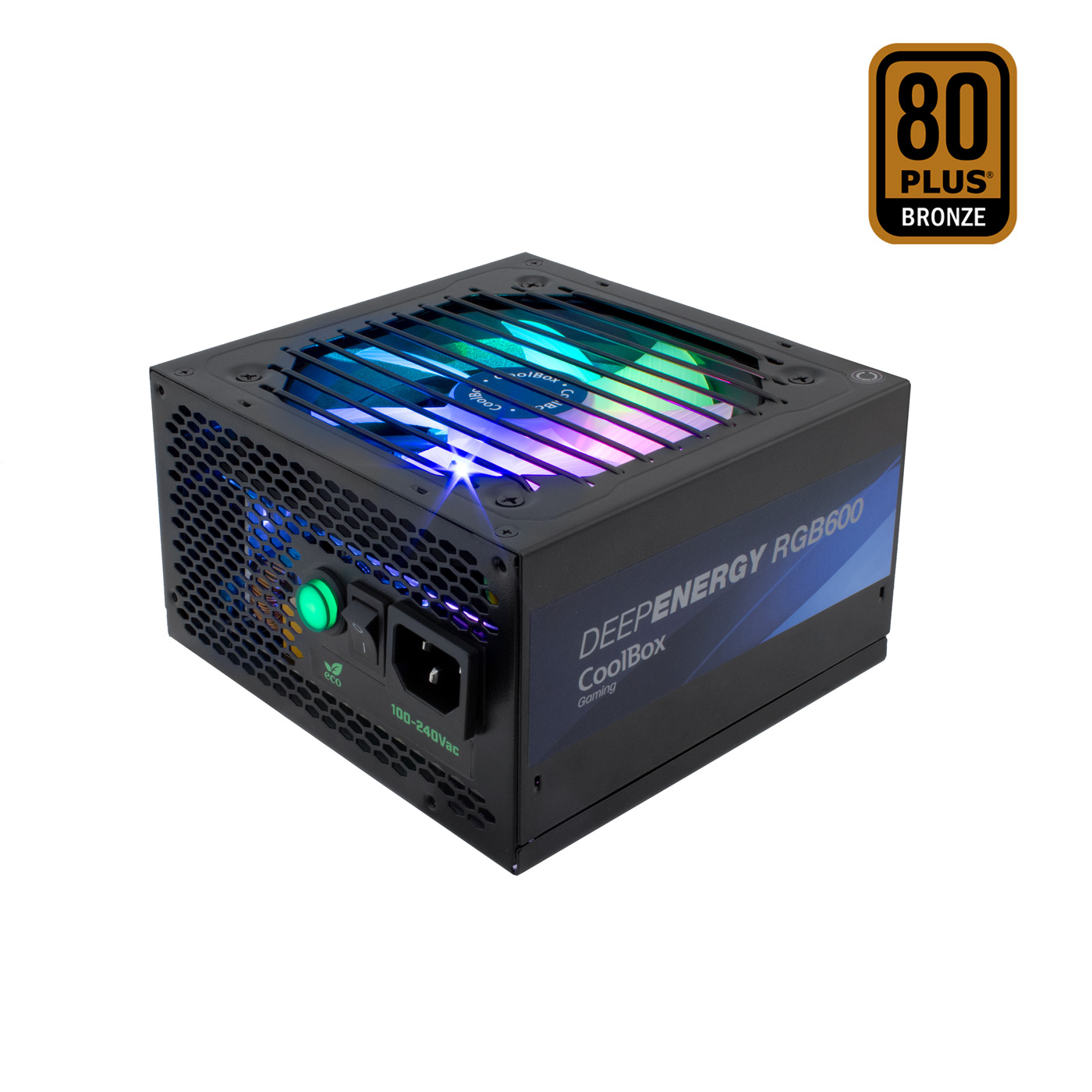

DeepEnergy RGB600
Model DeepEnergy RGB600Part no. DG-PWS600-MRBZ
44 specifications
- Noise32 dB
- Weight1.7 kg
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 32 dB
- Weight
- 1.7 kg
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- DeepEnergy RGB600
- Part number
- DG-PWS600-MRBZ
- Also known as
- CoolBox DeepEnergy RGB600 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
44 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 - 9 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 115 W |
| Combined power (+5V) | 115 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 40 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 81% |
| Power Good signal delay range | 100 - 500 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |

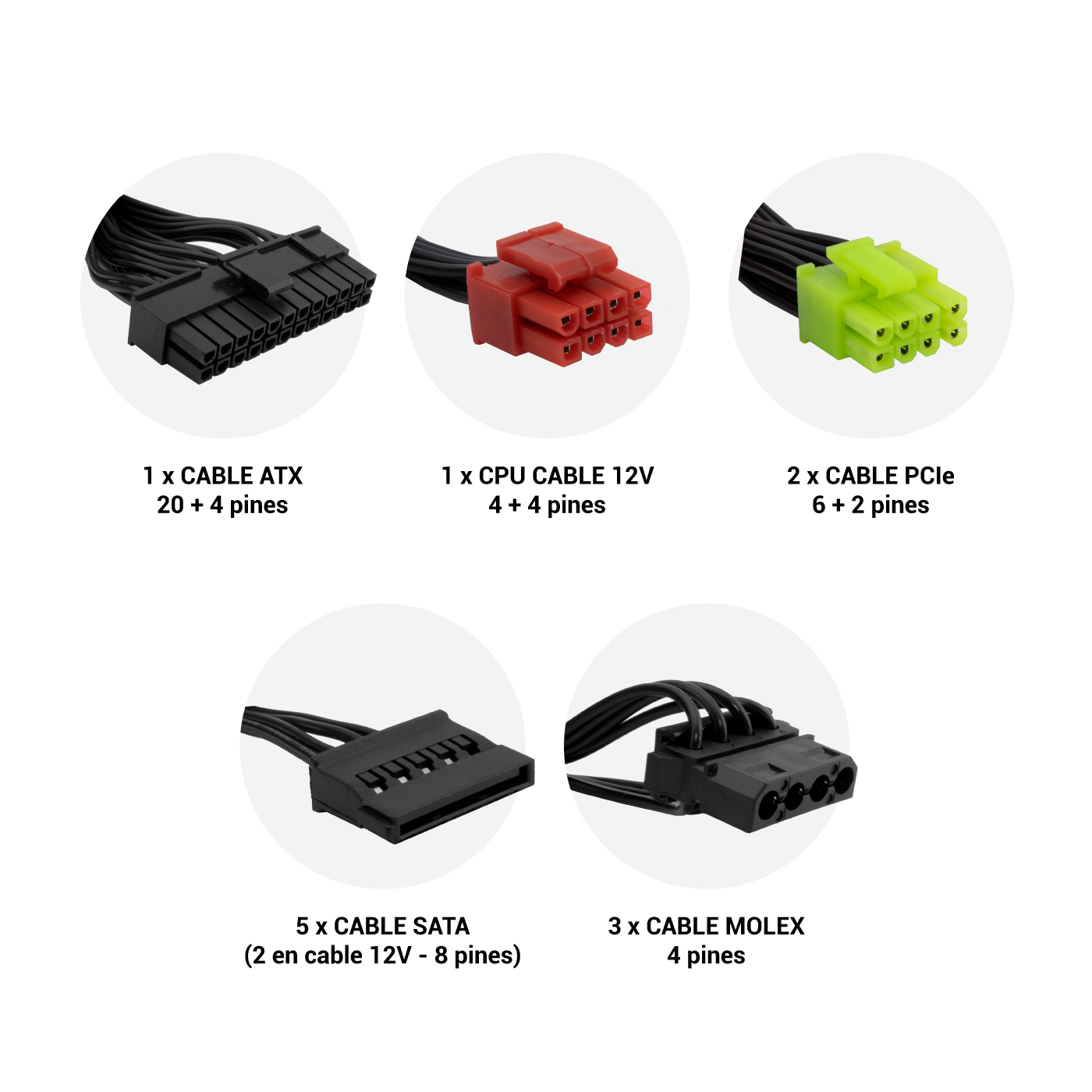

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
| Noise level | 32 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 1.7 kg |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Multi |
