Basic 500GR ATX
Model Basic 500GR ATXPart no. COO-FA500B-BKB-1
31 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- Basic 500GR ATX
- Part number
- COO-FA500B-BKB-1
- Also known as
- CoolBox Basic 500GR ATX power supply unit 500 W 20+4 pin ATX Black
Specifications
31 specifications in 7 groups

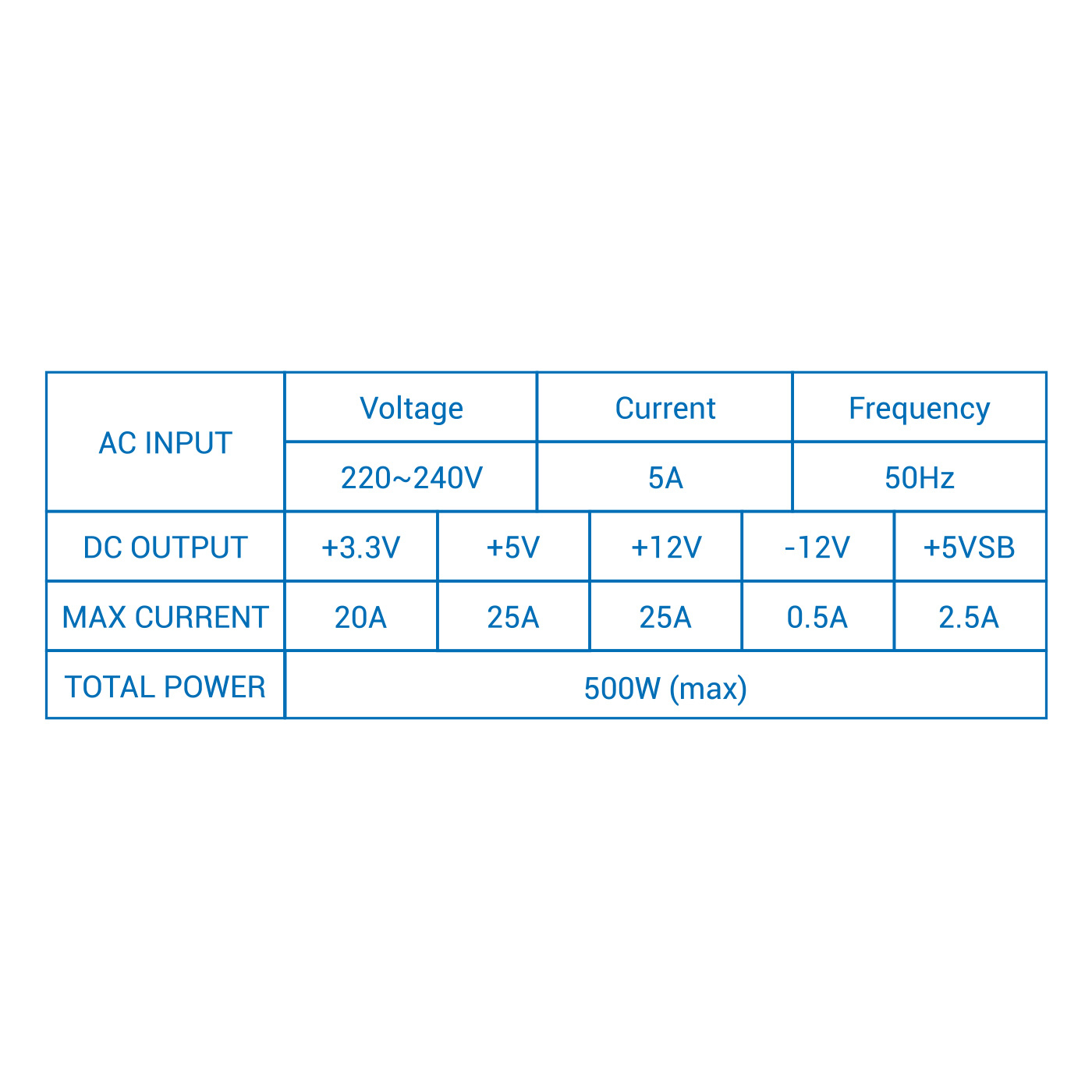

Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 80 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |

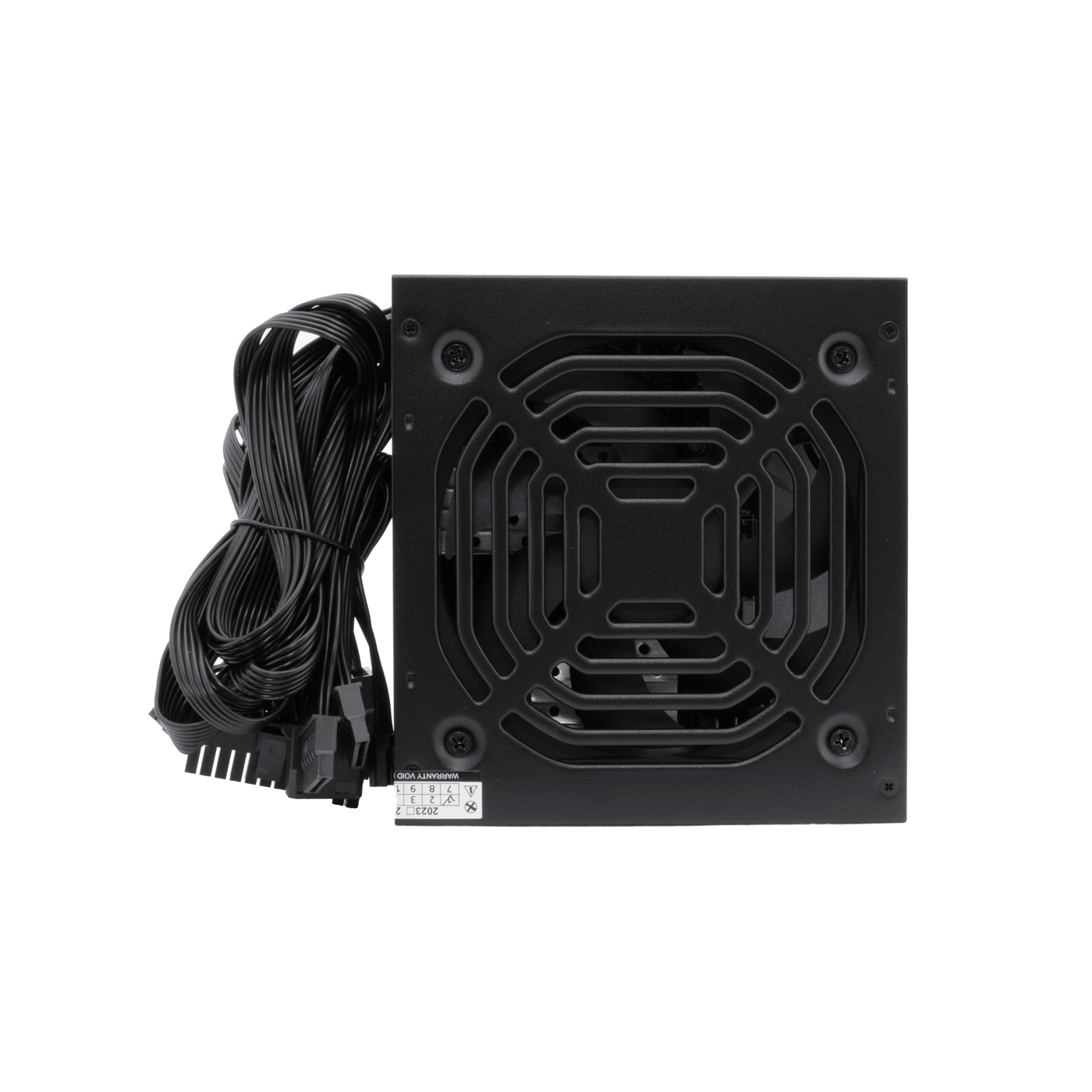

Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
