Conceptronic Desktop power supply unit
300 W 20+4 pin ATX ATX Grey
Model DesktopPart no. CPWRDSK300
23 specifications
- Weight1.03 kg
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.03 kg
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- Conceptronic
- Category
- Power Supply Unit
- Model
- Desktop
- Part numbers
- CPWRDSK300, 1100061, 1100063, 1100064, 1100065
- Also known as
- Conceptronic Desktop power supply unit 300 W 20+4 pin ATX ATX Grey
Specifications
23 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 115 - 230 V |
| Combined power (-12V) | 0.3 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 8 A |
| Max output current (+12V2) | 13 A |
| Max output current (+5V) | 12 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|

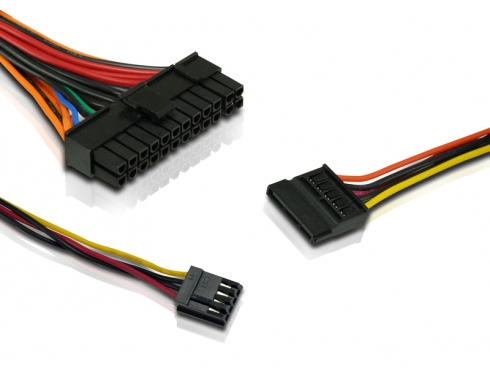

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 8 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.03 kg |
