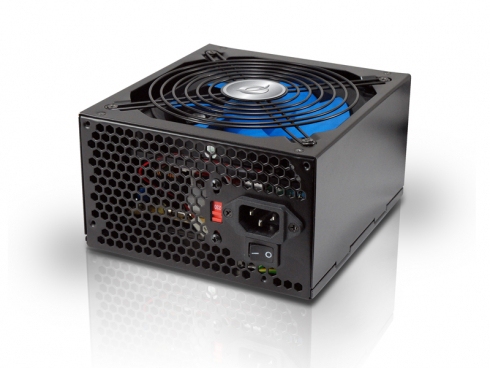

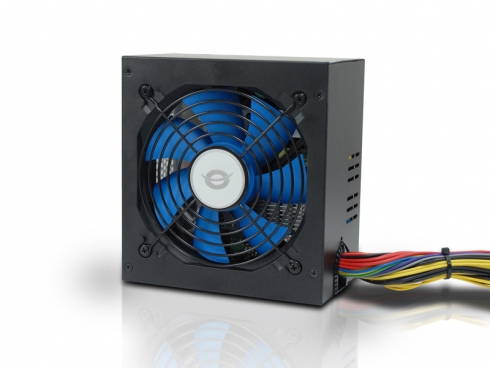

Conceptronic CPWRDSK700 power supply unit
700 W 20+4 pin ATX ATX Black
Model CPWRDSK700Part no. CHD3S
24 specifications
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorATX
Overview
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- ATX
- Brand
- Conceptronic
- Category
- Power Supply Unit
- Model
- CPWRDSK700
- Part number
- CHD3S
- Also known as
- Conceptronic CPWRDSK700 power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
24 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 16 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
