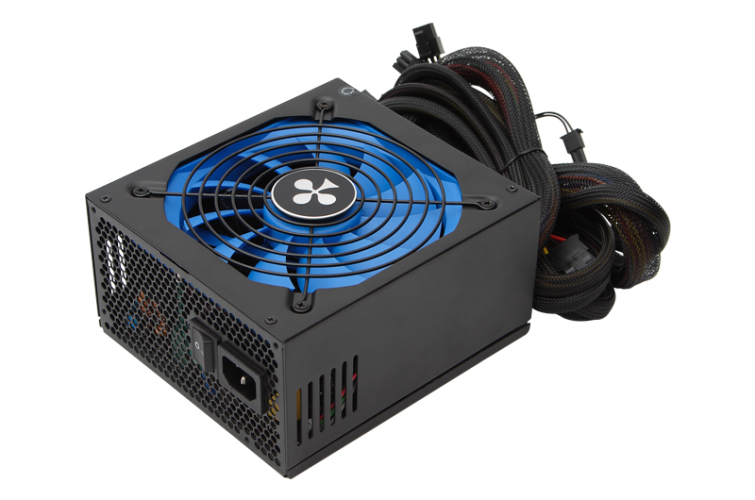

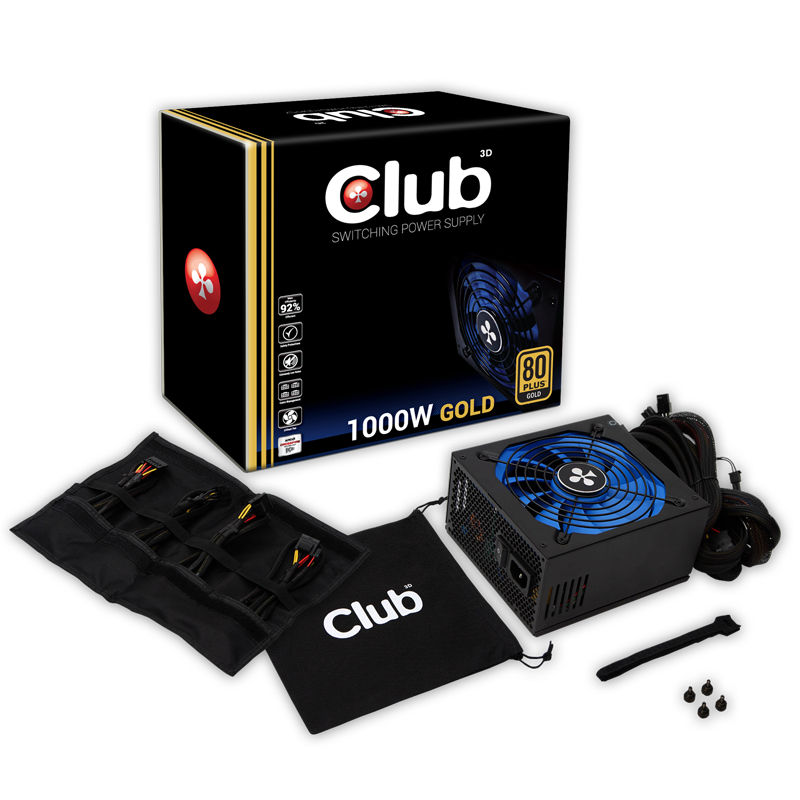

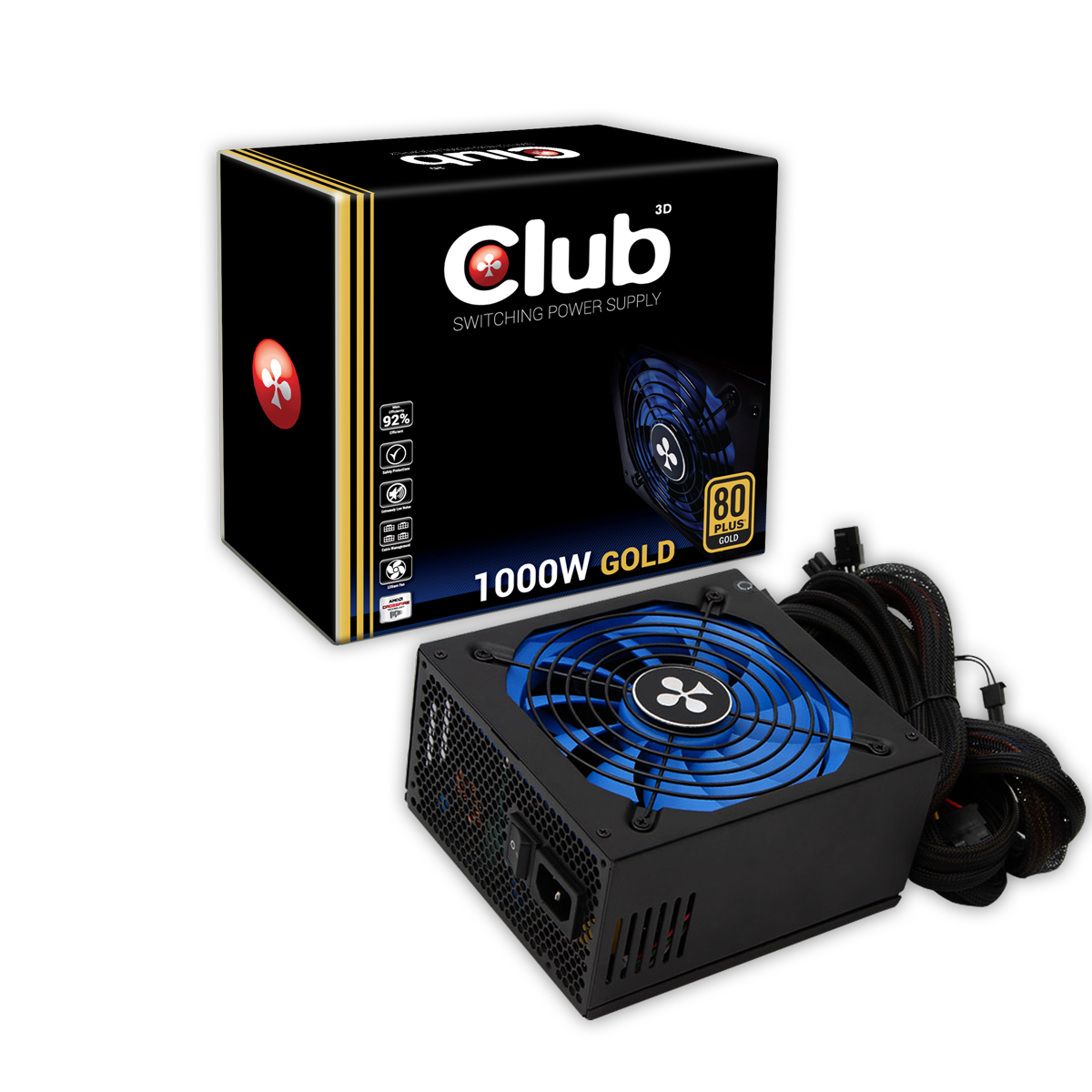

CLUB3D 1000Watt 80+Gold

CLUB3D 1000Watt 80+Gold

Model 1000Watt 80+GoldPart no. CSP-X1000CGEAN 8717249411680

47 specifications
  • Noise10 dB
  • Weight2.79 kg
  • ColourBlack
  • Total power1000 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
10 dB
Weight
2.79 kg
Colour
Black
Total power
1000 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
CLUB3D
Model
1000Watt 80+Gold
Part number
CSP-X1000CG
EAN / UPC
8717249411680
Also known as
CLUB3D 1000Watt 80+Gold power supply unit 1000 W 20+4 pin ATX ATX Black

Specifications

47 specifications in 8 groups

Power

Total power1000 W
AC input voltage115 - 230 V
AC input frequency50 - 60 Hz
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)996 W
Combined power (+5V)100 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V1)36 A
Max output current (+12V2)36 A
Max output current (+12V3)36 A
Max output current (+12V4)36 A
Max output current (+5V)20 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency92%
Power protection featuresOver current, Over power, Over voltage, Under current, Under power, Under voltage

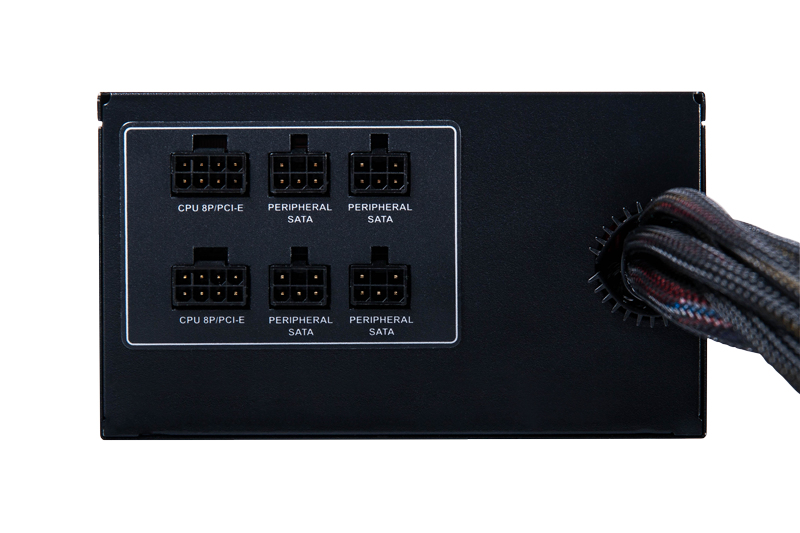

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors9
Peripheral (Molex) power connectors (4-pin)7
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)6
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
Floppy drive power connector2
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.4
EPS version2.92
Noise level10 dB

Design

Product colourBlack
Cooling typeActive

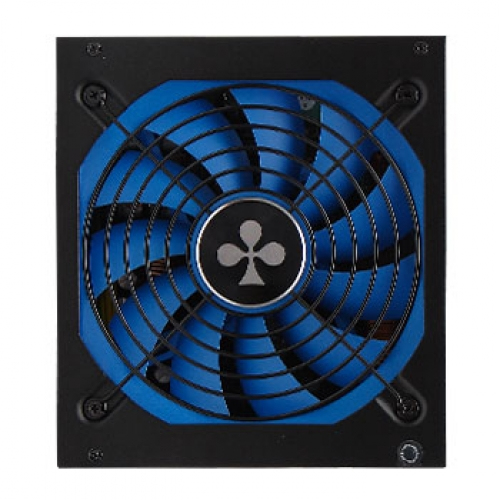

Fan diameter13.5 cm
Number of fans1 fan(s)

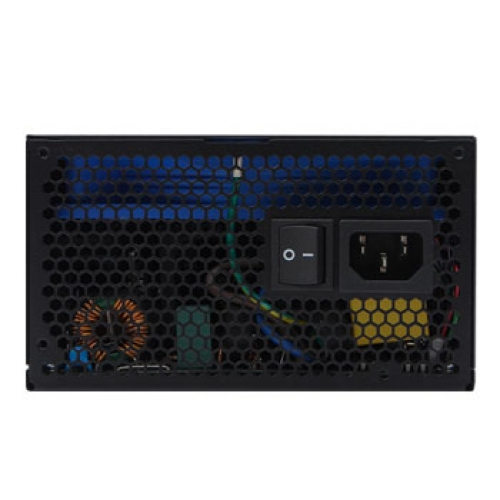

On/off switchYes

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width150 mm
Depth165 mm
Height68 mm
Weight2.79 kg

Packaging data

ManualYes
Package typeBox

Technical details

Sustainability certificatesENERGY STAR
