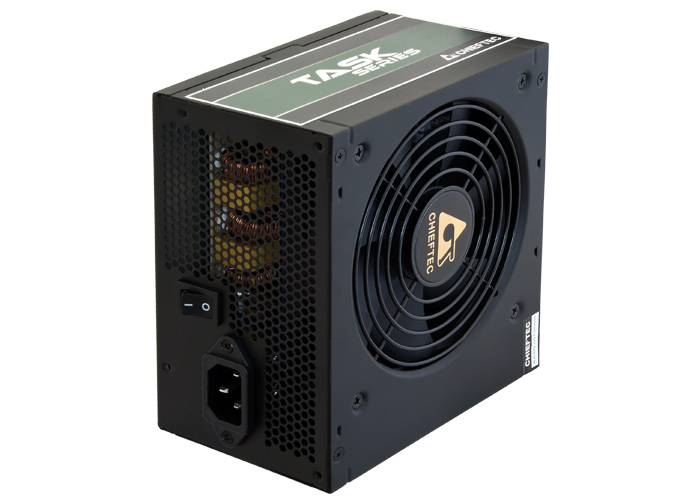

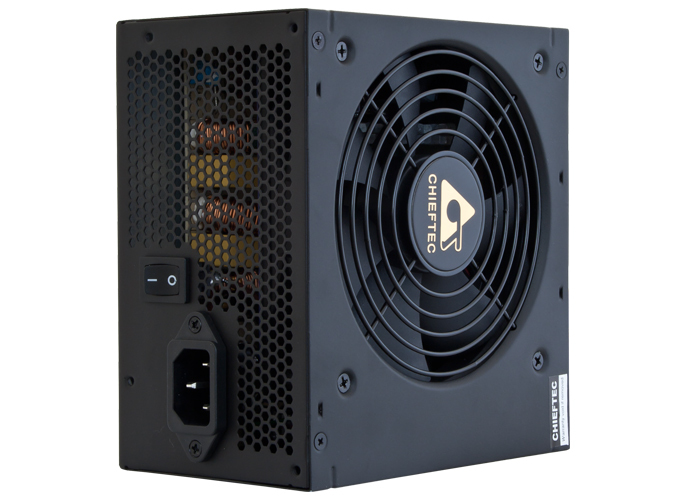

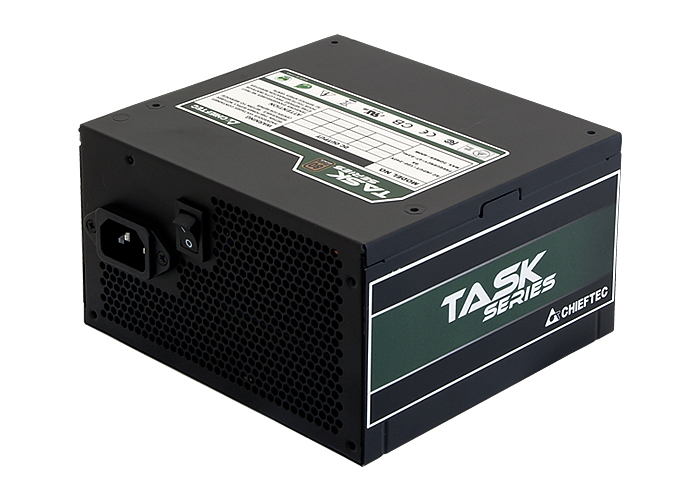

Task TPS-500S power supply unit
500 W 24-pin ATX ATX Black
Model TPS-500SEAN 753263076489
34 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- TPS-500S
- Part number
- TPS-500S
- EAN / UPC
- 753263076489
- Also known as
- Chieftec Task TPS-500S power supply unit 500 W 24-pin ATX ATX Black
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 38 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP, RoHS, CE, CB, EAC, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
