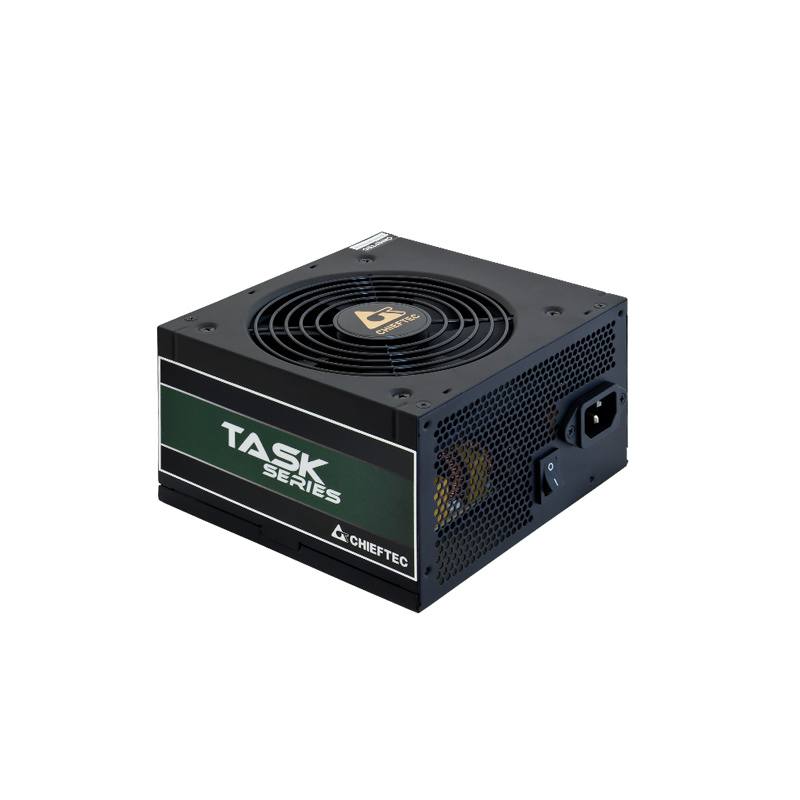

Task TPS-400S power supply unit
400 W 24-pin ATX ATX Black
Model TPS-400SEAN 753263076472
38 specifications
- Weight1.57 kg
- ColourBlack
- Total power400 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.57 kg
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- TPS-400S
- Part number
- TPS-400S
- EAN / UPC
- 753263076472
- Also known as
- Chieftec Task TPS-400S power supply unit 400 W 24-pin ATX ATX Black
Specifications
38 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| Peak power | 360 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 17 A |
| Max output current (+12V) | 30 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,500 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1.57 kg |
