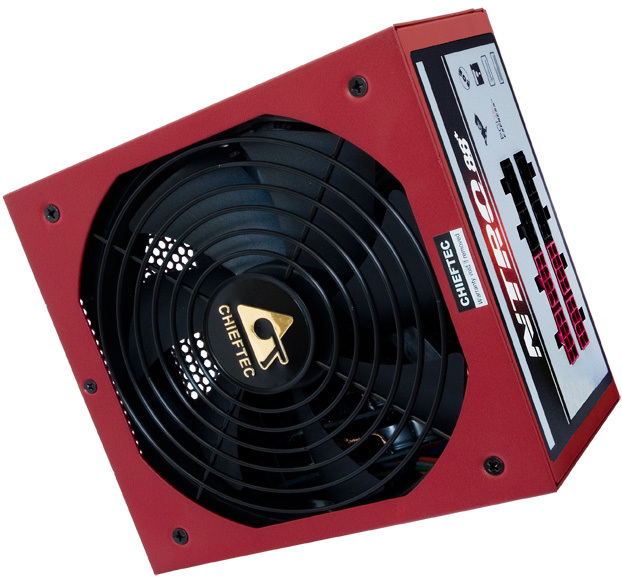

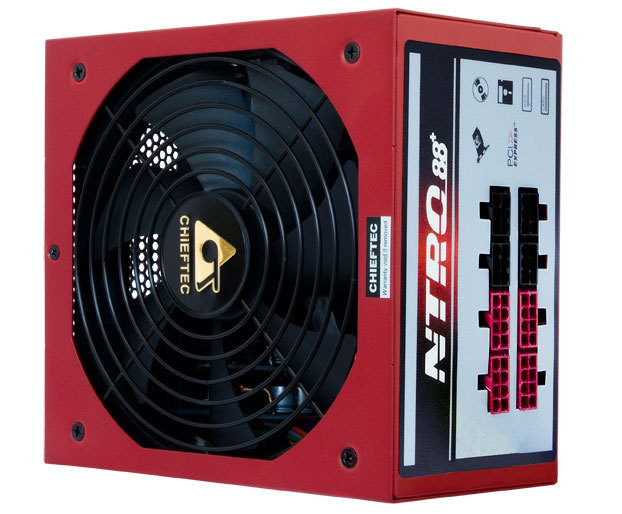

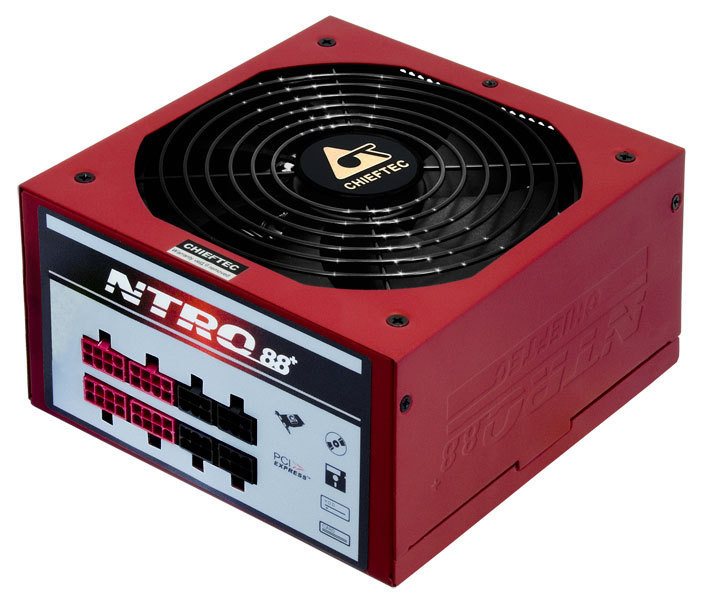

Chieftec SPS-850C power supply unit
850 W 20+4 pin ATX ATX Red
Model SPS-850CEAN 4710713238817
38 specifications
- ColourRed
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Red
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SPS-850C
- Part number
- SPS-850C
- EAN / UPC
- 4710713238817
- Also known as
- Chieftec SPS-850C power supply unit 850 W 20+4 pin ATX ATX Red
Specifications
38 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,-12V,-5Vsb |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 816 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 68 A |
| Max output current (+12V1) | 68 A |
| Max output current (+12V2) | 68 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under current, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| Monitor outlet | No |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, TUV, R33030 |
Other features
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI, 3-Way SLI |
