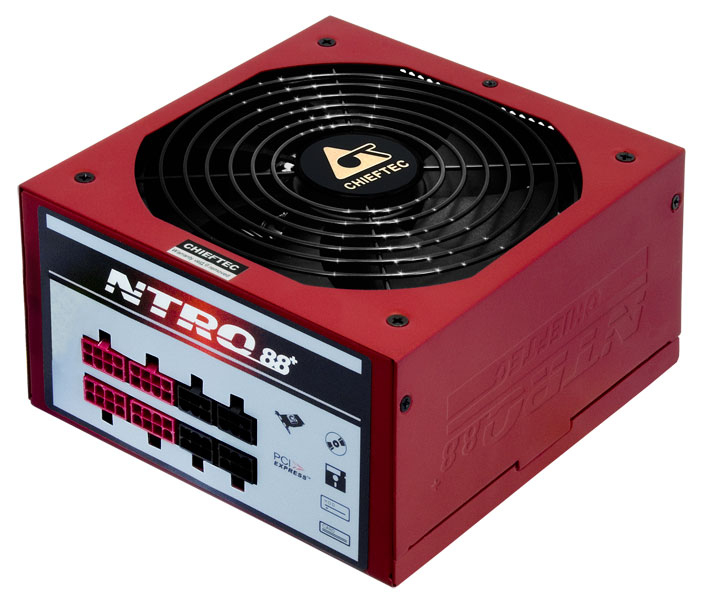

Chieftec SPS-750C power supply unit
750 W 20+4 pin ATX ATX Red
Model SPS-750CEAN 4710713238800
30 specifications
- Noise24 dB
- ColourRed
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 24 dB
- Colour
- Red
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SPS-750C
- Part number
- SPS-750C
- EAN / UPC
- 4710713238800
- Also known as
- Chieftec SPS-750C power supply unit 750 W 20+4 pin ATX ATX Red
Specifications
30 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| Peak power | 750 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 720 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 60 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
| Noise level | 24 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE, CB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 160 x 87 mm |
