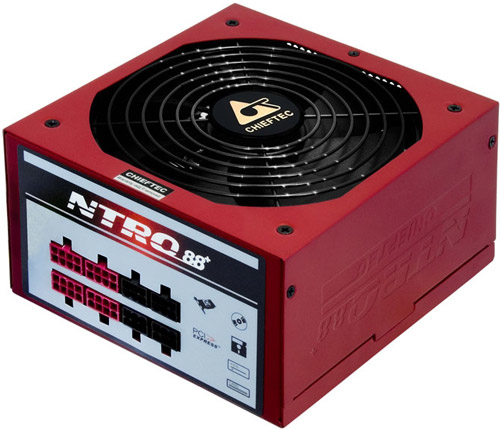

Chieftec SPS-1000C power supply unit
1000 W 20+4 pin ATX ATX Red
Model SPS-1000C
33 specifications
- ColourRed
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Red
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SPS-1000C
- Part number
- SPS-1000C
- Also known as
- Chieftec SPS-1000C power supply unit 1000 W 20+4 pin ATX ATX Red
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 960 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 80 A |
| Max output current (+12V2) | 80 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
