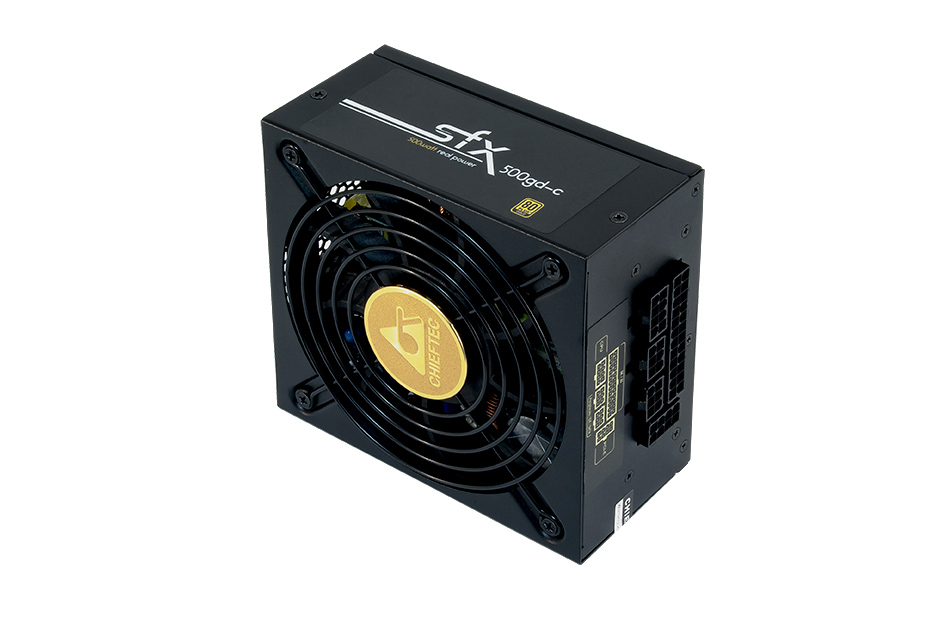

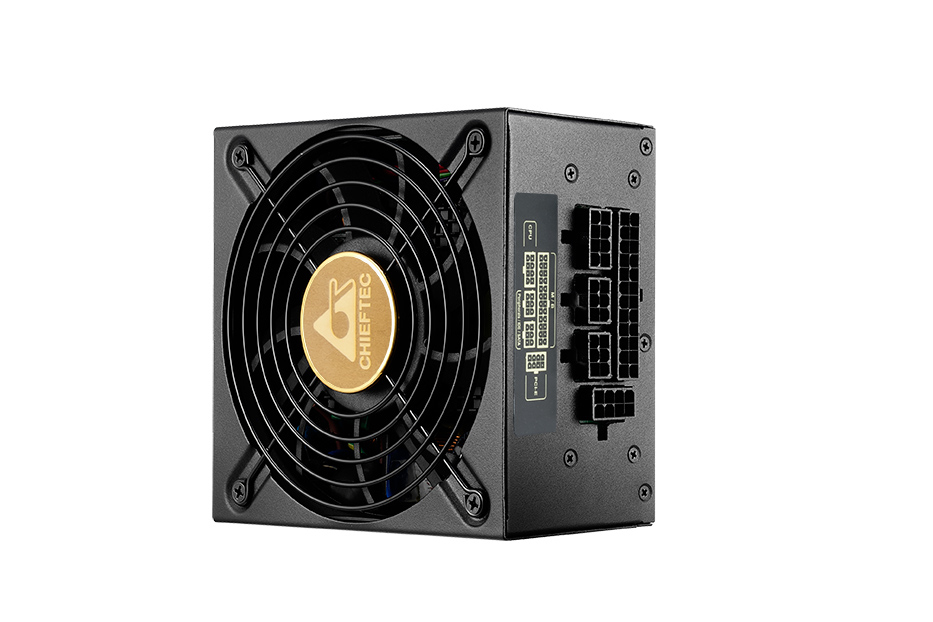

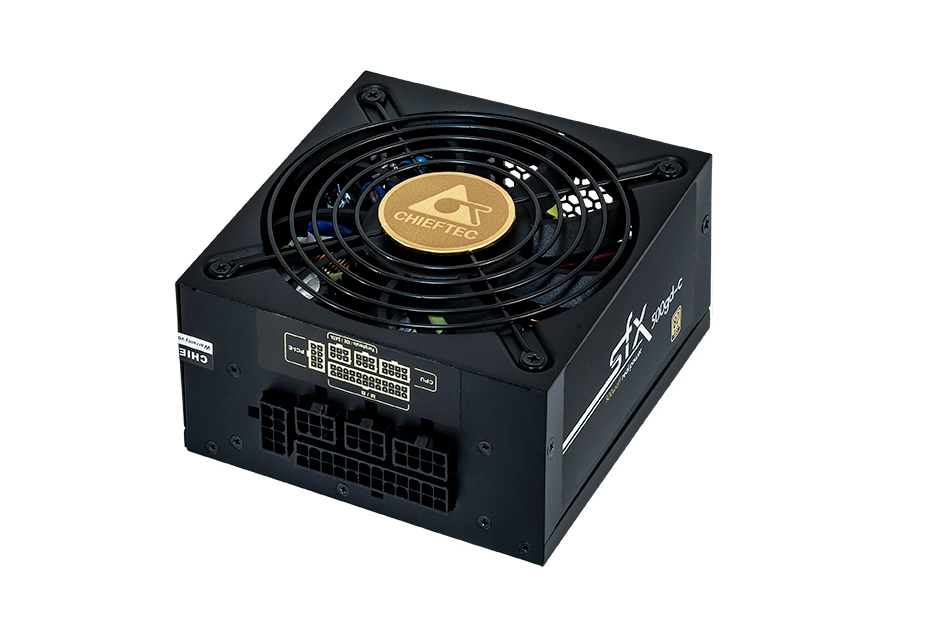

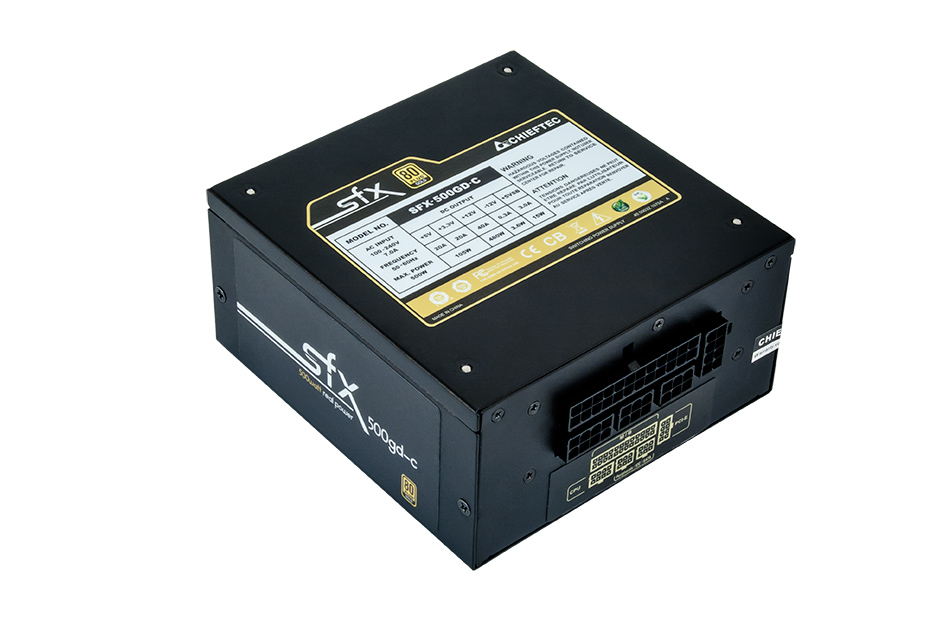

Chieftec SFX-500GD-C power supply unit
500 W 20+4 pin ATX Black
Model SFX-500GD-CEAN 4710713231429
36 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorSFX
- Width125 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- SFX
- Width
- 125 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SFX-500GD-C
- Part number
- SFX-500GD-C
- EAN / UPC
- 4710713231429
- Also known as
- Chieftec SFX-500GD-C power supply unit 500 W 20+4 pin ATX Black
Specifications
36 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 7 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 40 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |

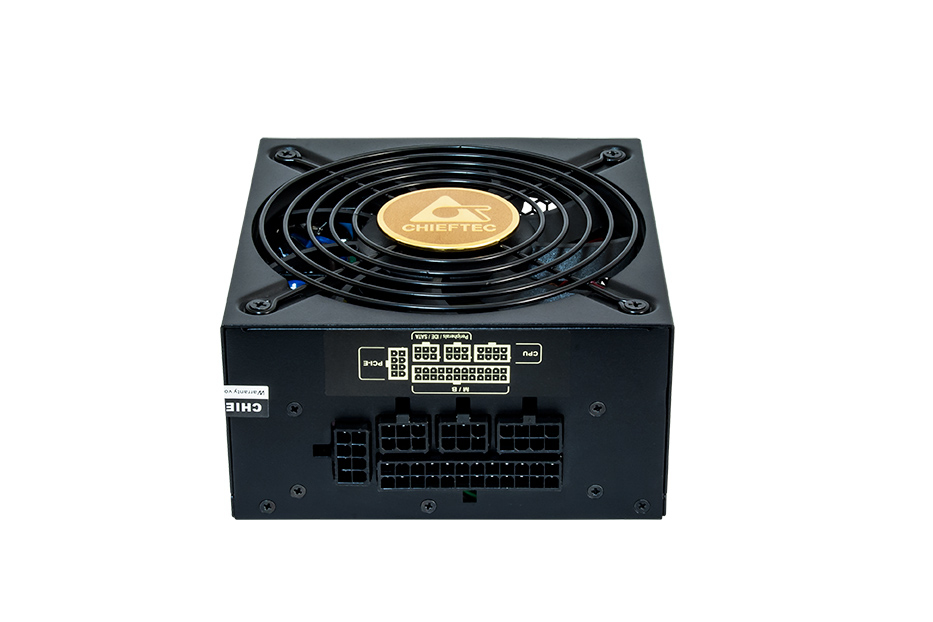

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 0 |

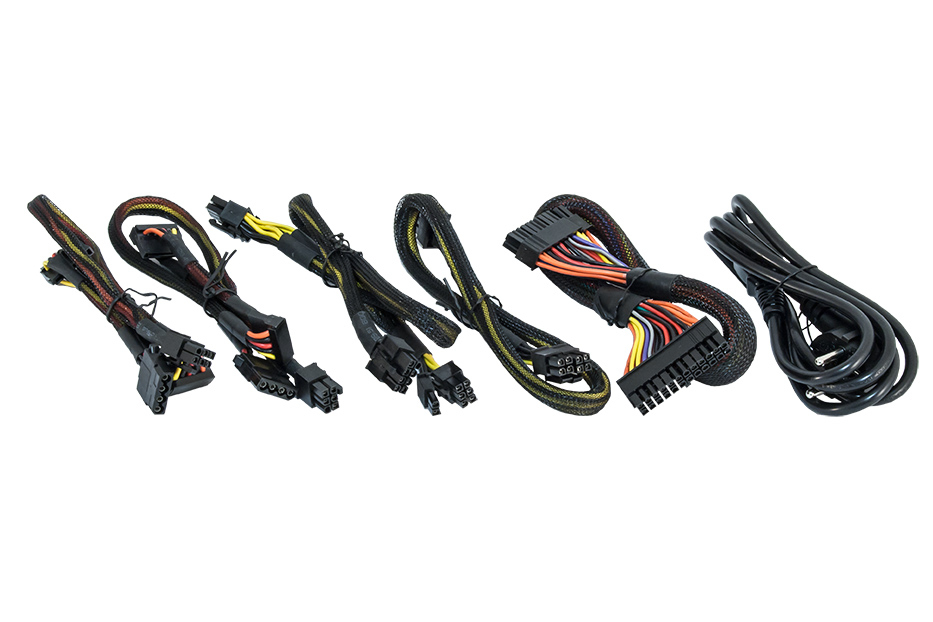

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 125 mm |
| Height | 64 mm |
Other features
| Specification | Value |
|---|---|
| Frequency tolerance | 90% |
