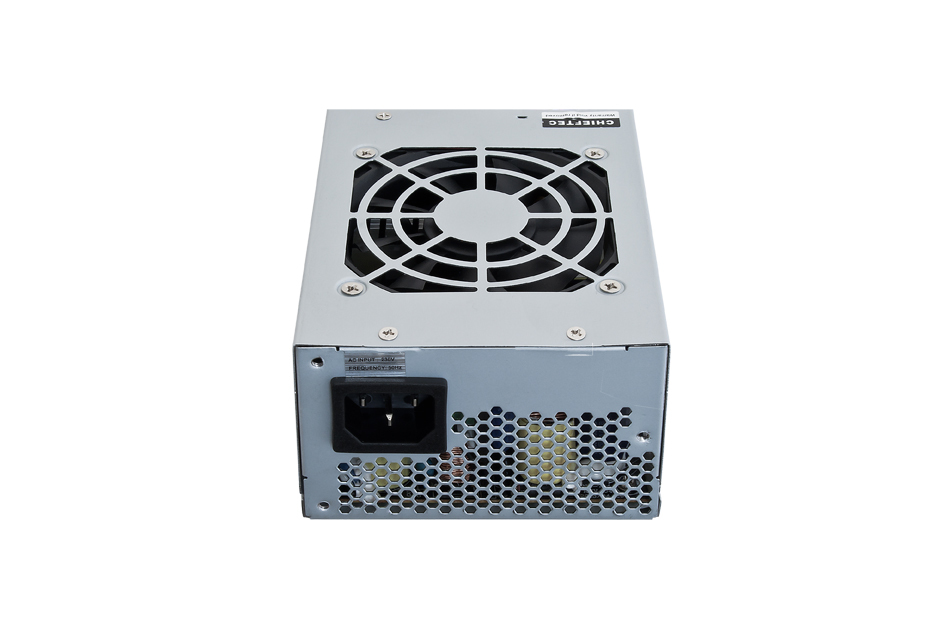

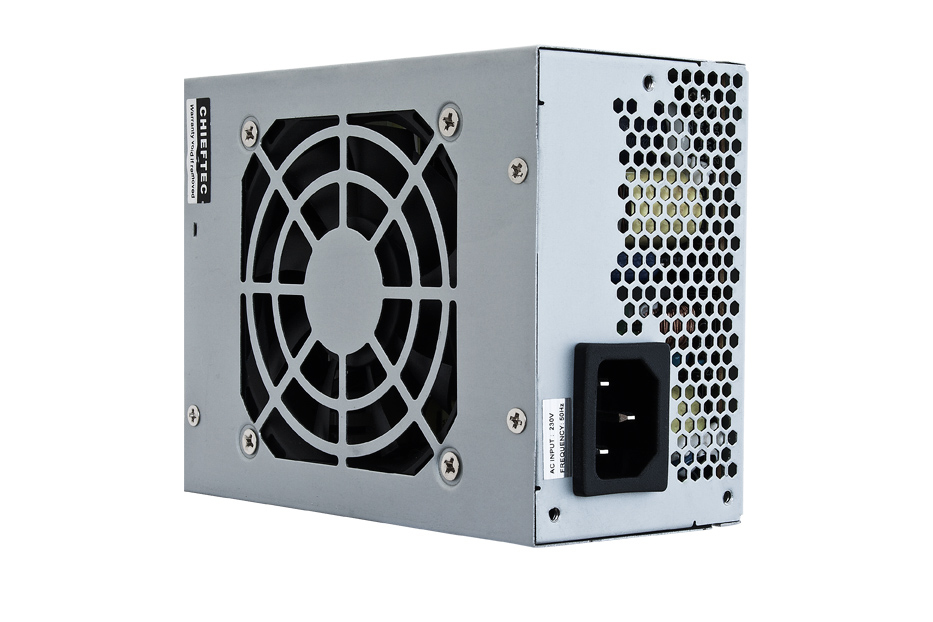

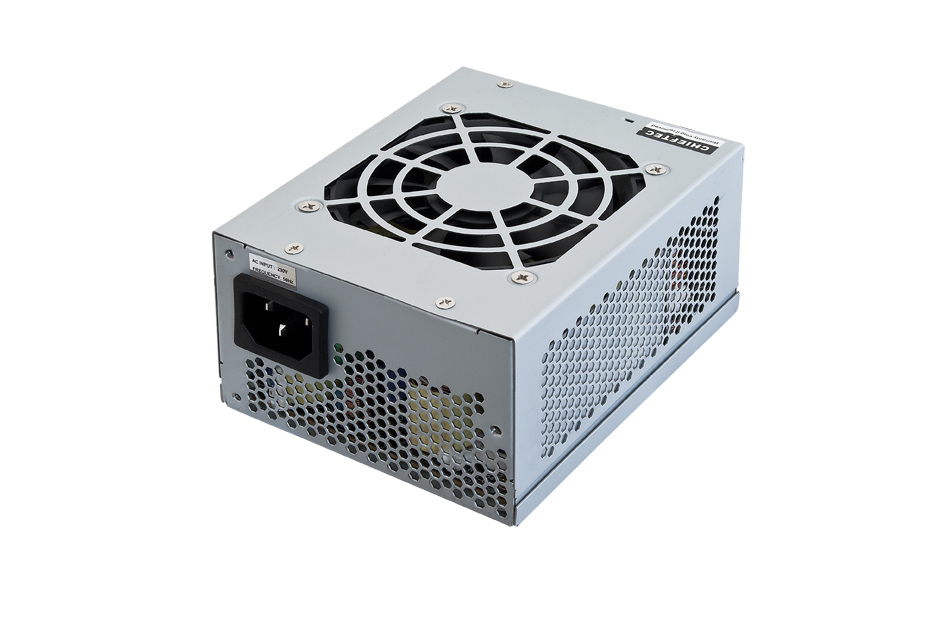

Chieftec SFX-350BS-L power supply unit
350 W 20+4 pin ATX Silver
Model SFX-350BS-LEAN 4710713230347
27 specifications
- ColourSilver
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width100 mm
Overview
- Colour
- Silver
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 100 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SFX-350BS-L
- Part number
- SFX-350BS-L
- EAN / UPC
- 4710713230347
- Also known as
- Chieftec SFX-350BS-L power supply unit 350 W 20+4 pin ATX Silver
Specifications
27 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 324 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V1) | 27 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 64 mm |
