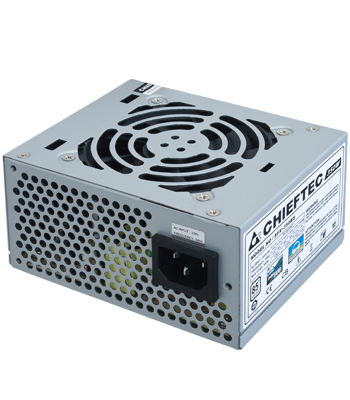

Chieftec SFX-350BS power supply unit
350 W 20+4 pin ATX ATX Grey
Model SFX-350BSEAN 4710713239753
32 specifications
- ColourGrey
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width100 mm
Overview
- Colour
- Grey
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 100 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- SFX-350BS
- Part number
- SFX-350BS
- EAN / UPC
- 4710713239753
- Also known as
- Chieftec SFX-350BS power supply unit 350 W 20+4 pin ATX ATX Grey
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@110V) | +12V,+12V1,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 27 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 64 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
