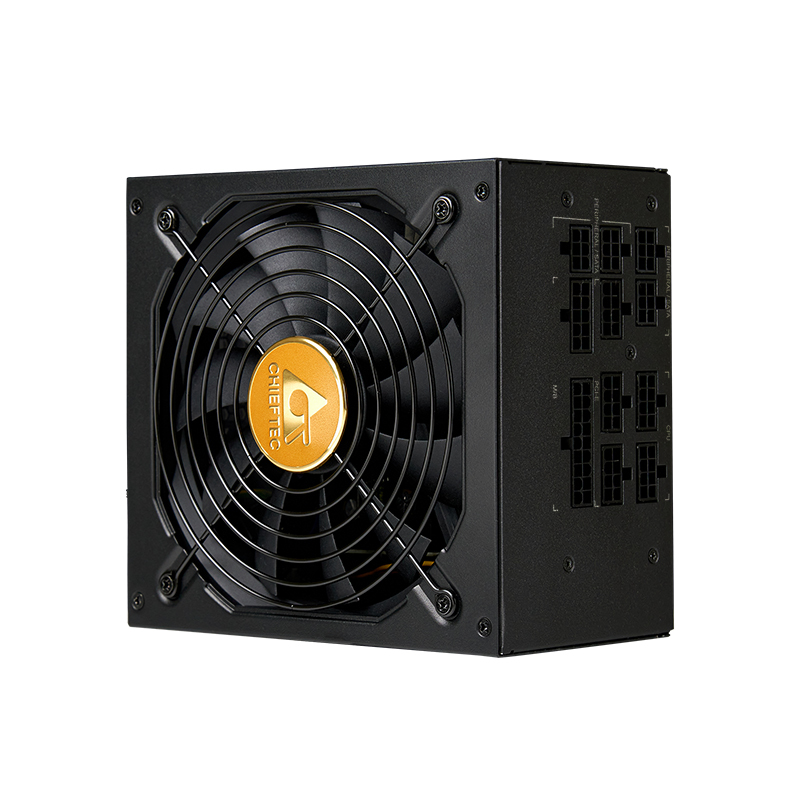

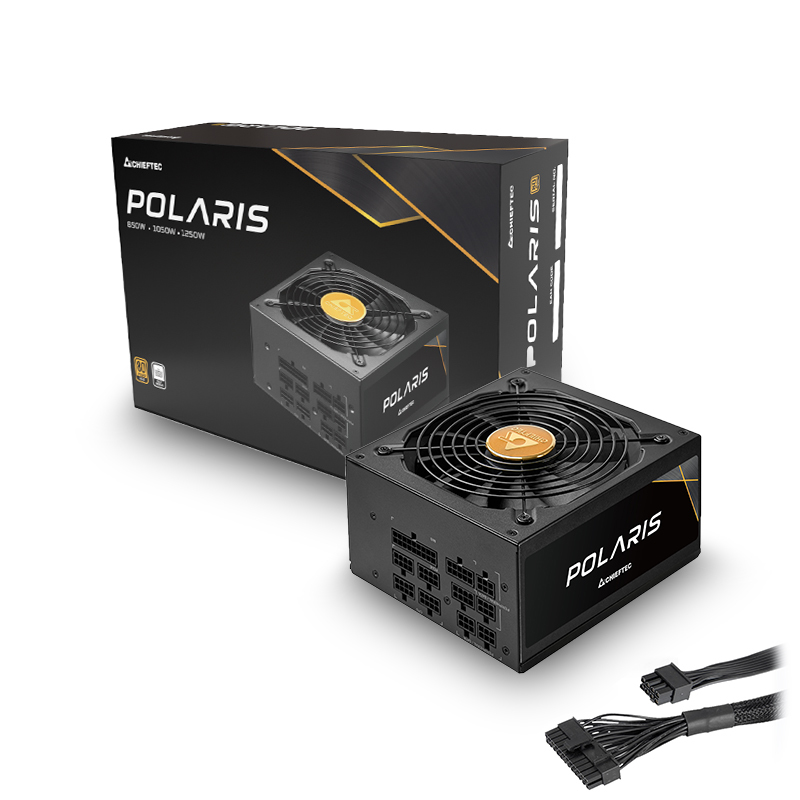

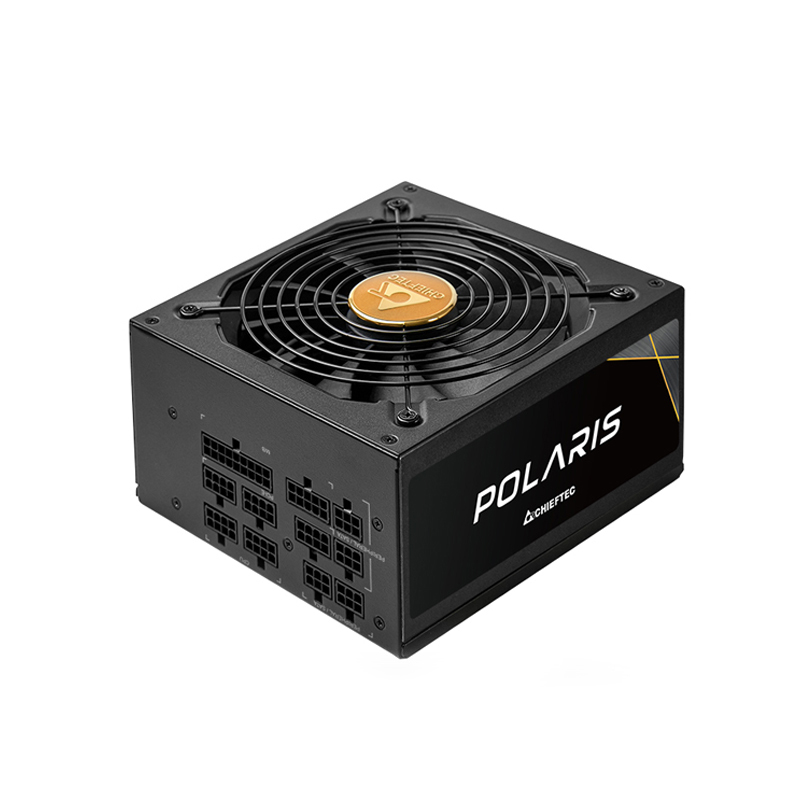

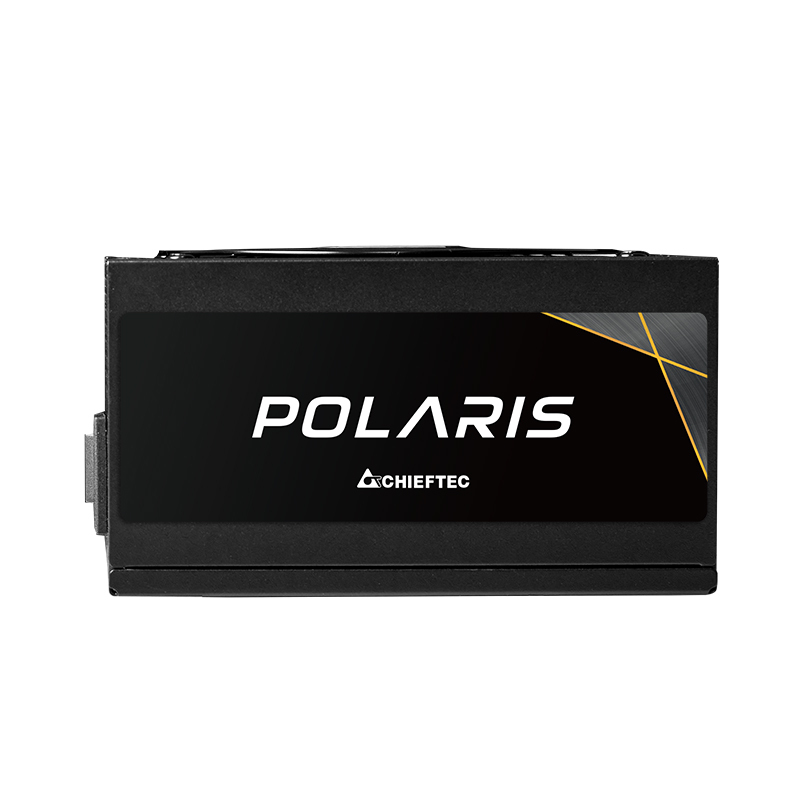

Polaris PPS-1050FC power supply unit
1050 W 20+4 pin ATX ATX Black
Model PPS-1050FCEAN 753263077363
40 specifications
- Weight2.6 kg
- ColourBlack
- Total power1050 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorATX
- Width150 mm
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Total power
- 1050 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- ATX
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- PPS-1050FC
- Part number
- PPS-1050FC
- EAN / UPC
- 753263077363, 7532630773632
- Also known as
- Chieftec Polaris PPS-1050FC power supply unit 1050 W 20+4 pin ATX ATX Black
Specifications
40 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

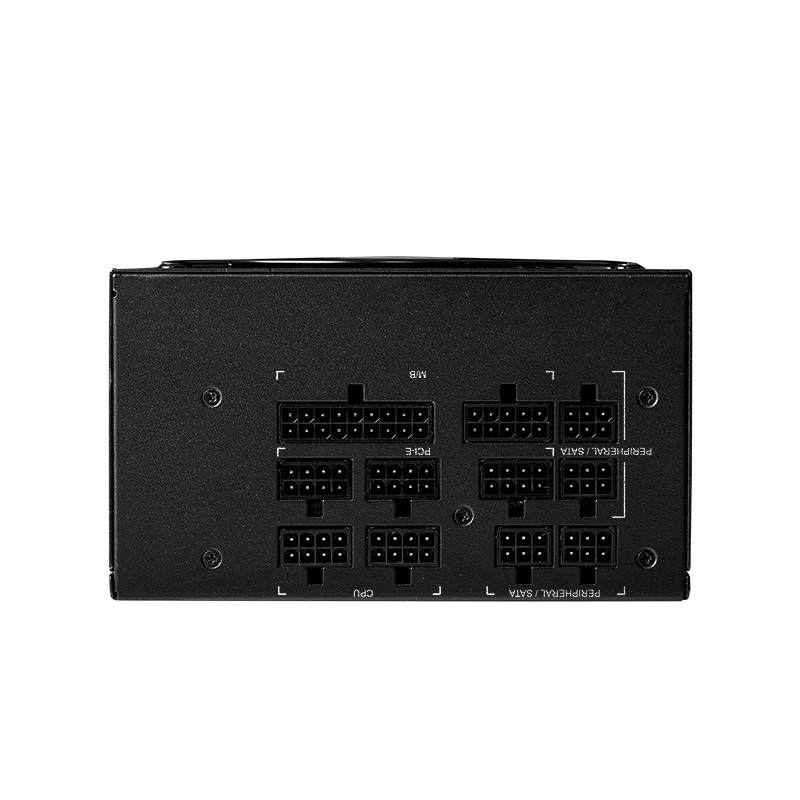

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 100,550 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 100,550 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

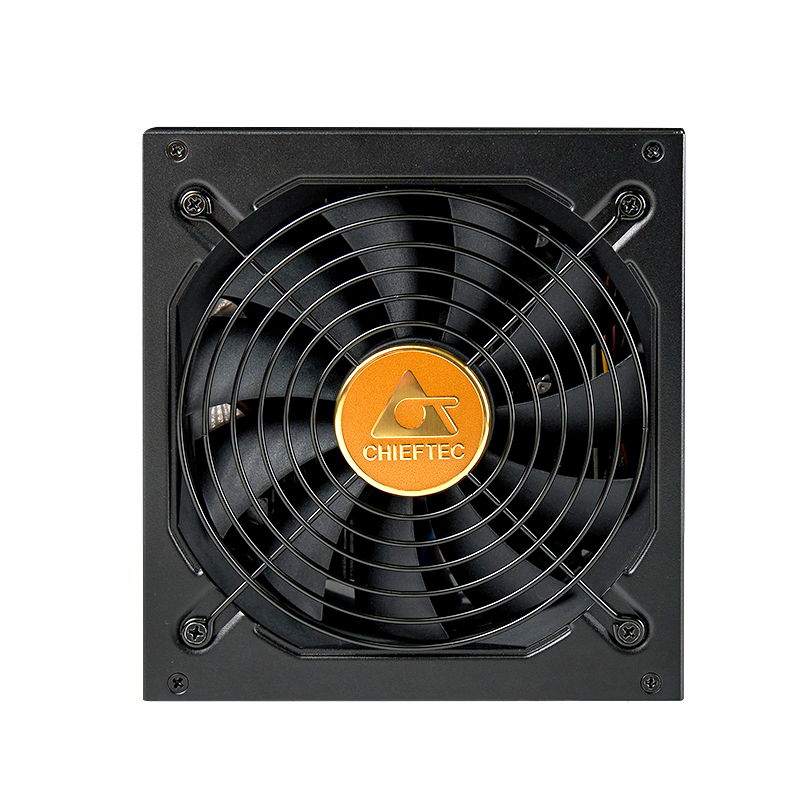

| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

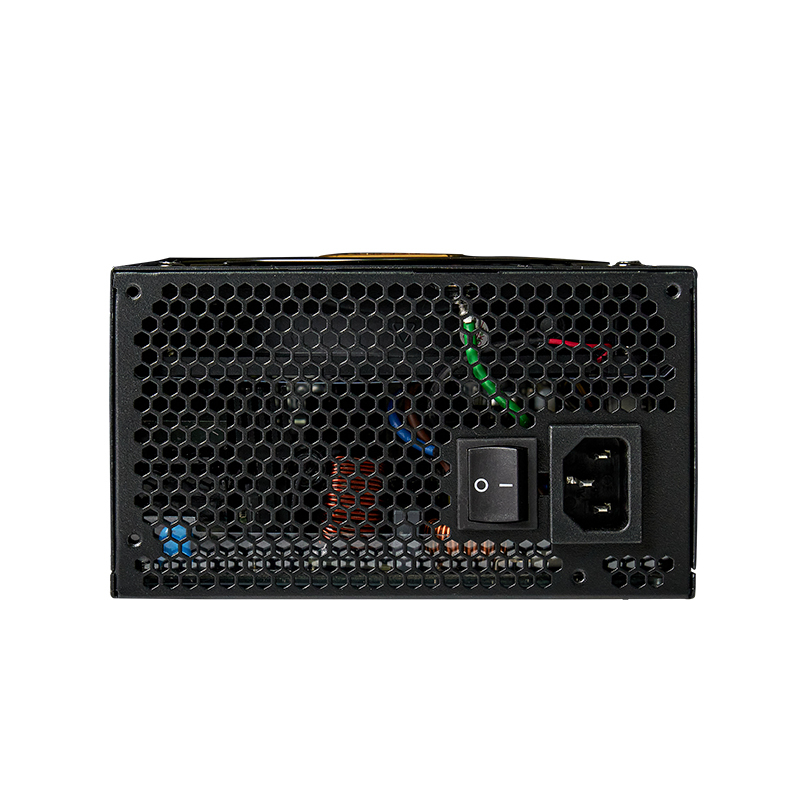

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
