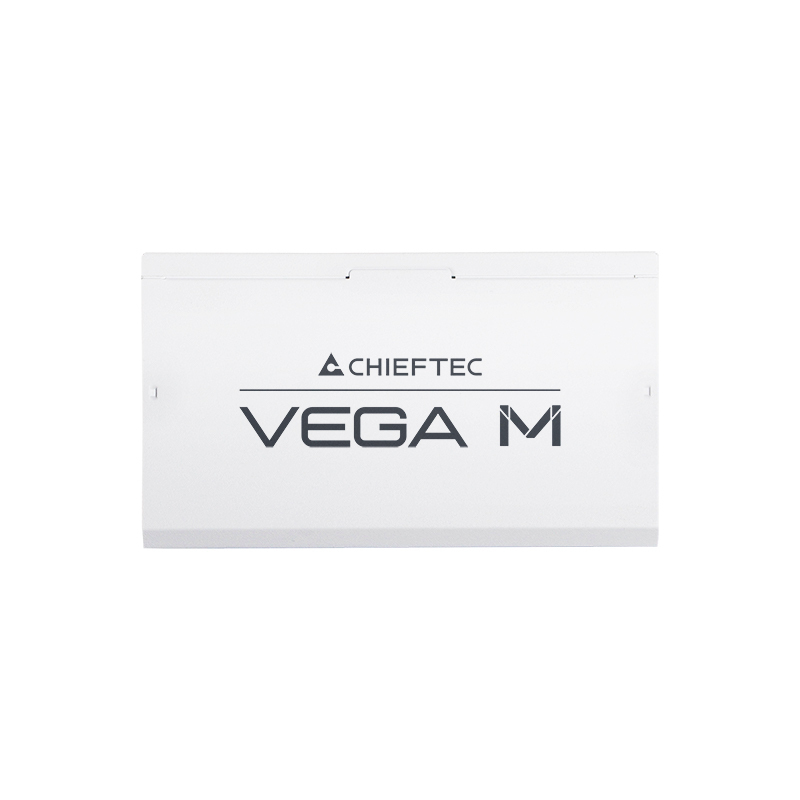

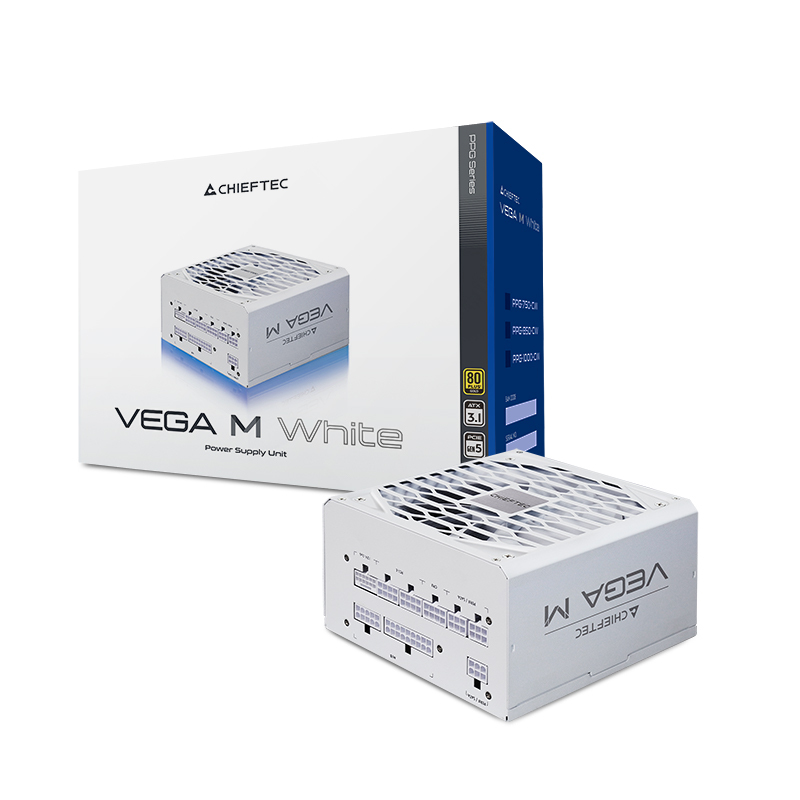

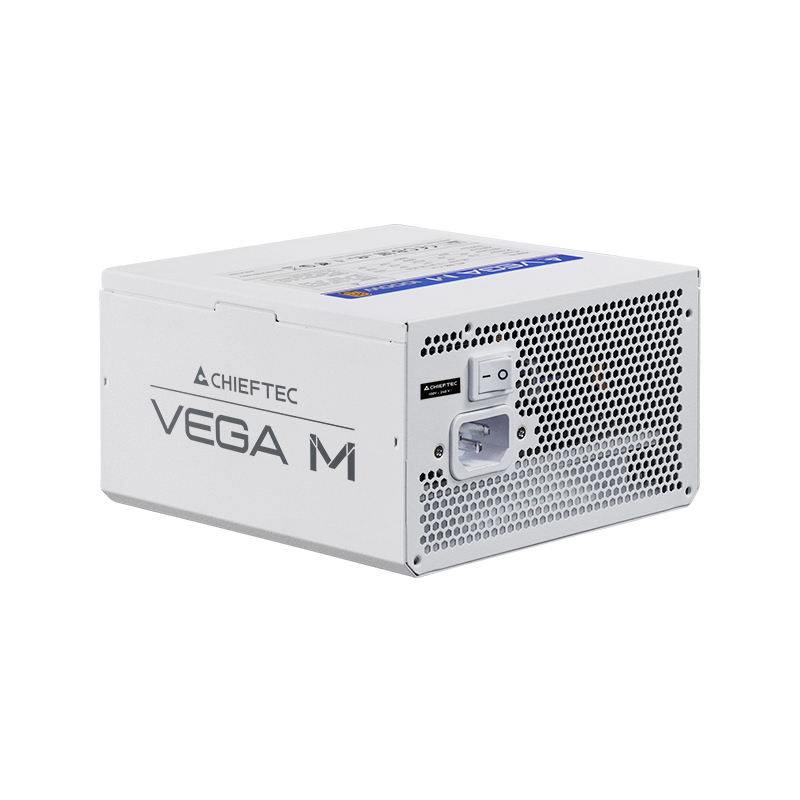

Vega PPG-750-CW power supply unit
750 W 24-pin ATX ATX White
Model PPG-750-CWEAN 753263079107
39 specifications
- Weight1.96 kg
- ColourWhite
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.96 kg
- Colour
- White
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- PPG-750-CW
- Part number
- PPG-750-CW
- EAN / UPC
- 753263079107
- Also known as
- Chieftec Vega PPG-750-CW power supply unit 750 W 24-pin ATX ATX White
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |

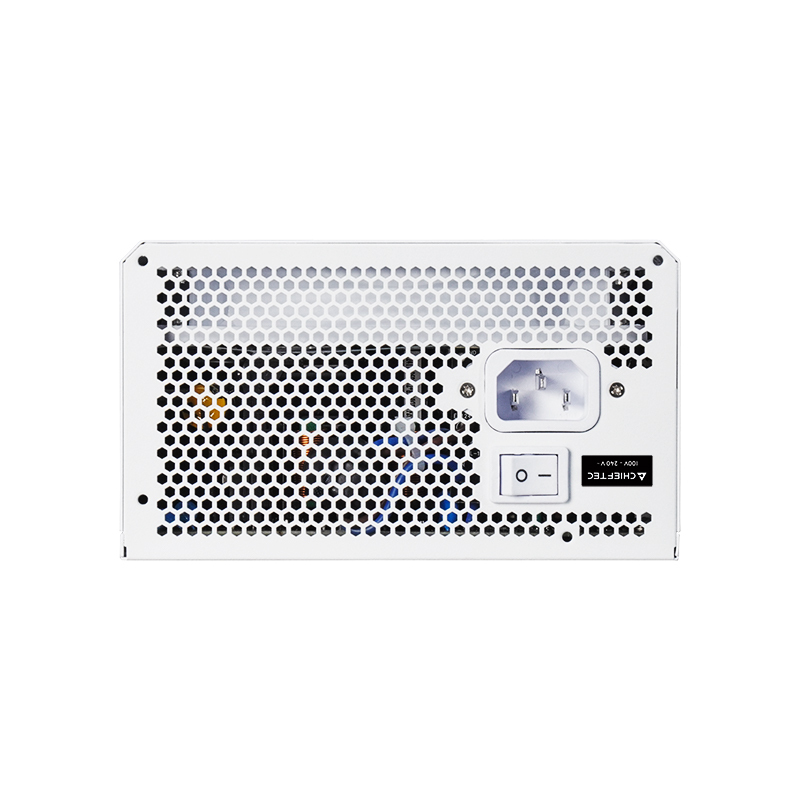

| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |

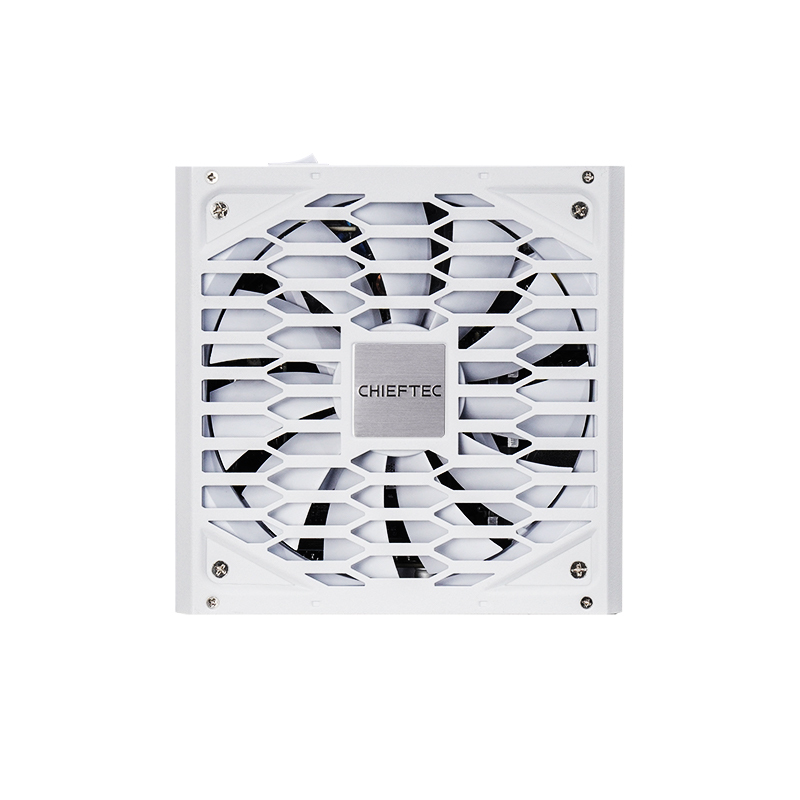

| Fan diameter | 13.5 cm |
| Illumination | No |
Certificates
| Specification | Value |
|---|---|
| Certification | 80PLUS Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 85 mm |
| Weight | 1.96 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.43 kg |
